Bottom Pivot Hydraulic Door Closer – Floor Spring with Hold Open for Frameless Glass Door
Bottom Pivot Hydraulic Door Closer – Floor Spring with Hold Open for Frameless Glass Door
This bottom hydraulic door closer is designed for frameless glass doors, integrating floor spring, hydraulic cushioning, and hold open function. Max load 150kg, 90-degree hold open, smooth opening and silent closing. 3-year warranty, CE certified. Includes Malaysia real case studies and installation guide. Upgrade your glass door safety and longevity.

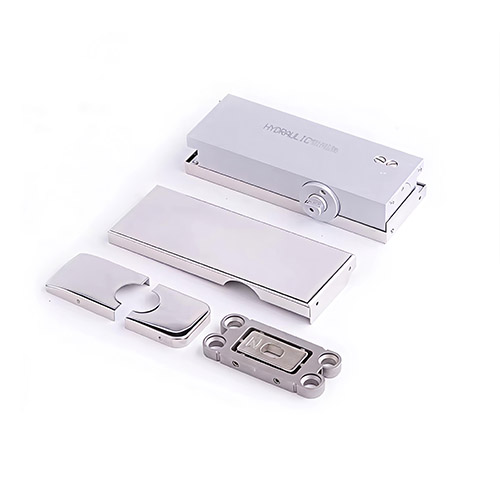

Bottom Pivot Hydraulic Door Closer – Floor Spring with Hold Open for Frameless Glass Door
Heavy-duty frameless glass doors in modern commercial spaces and high-end residences require a reliable door control system. A bottom hydraulic door closer (also known as floor spring) not only bears the door weight and rotation but also provides smooth closing, cushioning silence, and hold-open function. This glass door bottom hydraulic closer integrates three core functions: hydraulic closing, bottom pivot, and 90-degree hold open. It is the ideal choice for hotels, malls, office buildings, and villa glass doors.
1. Technical Specifications
Parameter Value
Product Name Bottom Hydraulic Door Closer (Floor Spring)
Suitable Door Type Frameless glass, framed glass, wooden door
Max Door Width 1200mm
Max Door Weight 150kg
Opening Angle Up to 130° (Hold open at 90° adjustable)
Closing Speed Two-stage adjustable (180°-15° and 15°-0°)
Hold Open Function 90° ± 3° automatic hold open
Material Body: Cast aluminum alloy / Shaft: Stainless steel
Finish Plated / Brushed stainless steel cover plate
Installation Floor embedded (requires recess)
Suitable Glass Thickness 8-12mm tempered glass
Warranty 3 years

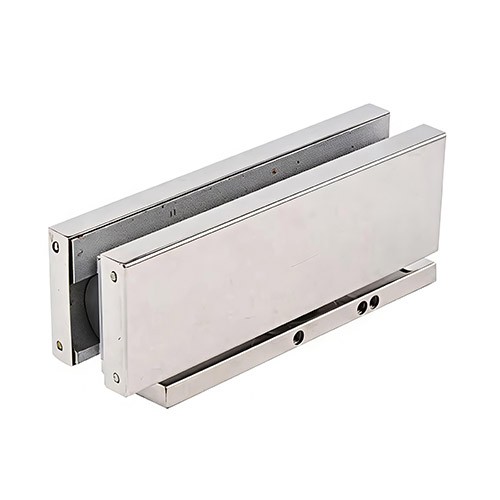

This floor spring uses a high-strength die-cast aluminum body with a precision-honed hydraulic cylinder, ensuring oil flow stability and no leakage. The bottom pivot is made of stainless steel, corrosion-resistant and high load capacity. Closing speed is controlled by two independent adjustment valves for “closing zone” and “latching zone” to suit different environments. The 90-degree hold open function allows the door to stay open when opened to 90°, convenient for moving large items or maintaining ventilation. The cover plate is brushed stainless steel or plated, matching the glass door style and providing waterproof and rust-proof properties.
3. Application Scenarios Complete Example
Hotel Lobby Entrance : With 12mm frameless glass door, handling high foot traffic. Door holds open at 90° for luggage carts.
Retail Store Front : Heavy glass door needs hydraulic cushioning to prevent impact and extend door life.
Office Building : Meeting room glass door requires silent closing without disturbing meetings.
Hospital/Clinic : Adjustable slow closing prevents pinching patients.
Villa Courtyard : Glass door with floor spring is aesthetic and wind-resistant.
4. Installation Instructions (Step-by-Step)
Tools required: Rotary hammer, spirit level, measuring tape, cement mortar, Phillips screwdriver, template paper.
Step 1 – Prepare recess
Mark and cut a recess of approx. 300×300×80mm (L×W×D) in the floor according to the provided template. Ensure the recess bottom is flat and clean.
Step 2 – Embed the box
Place the floor spring body into the recess. Adjust the level so the top surface is flush with the finished floor (0-2mm below). Secure with cement mortar, maintaining vertical and horizontal level.
Step 3 – Install shaft and top pivot
After mortar cures, install the stainless steel shaft. Install the top pivot on the door frame or upper transom. Ensure vertical alignment of top and bottom pivots.
Step 4 – Hang the glass door
Align the bottom hole of the tempered glass door with the floor spring shaft, then insert the top pivot. Adjust door verticality and gaps (side gaps 2-3mm, top/bottom gaps 3-5mm).
Step 5 – Adjust closing speed
Use the provided Allen key to turn the adjustment valves. Typically clockwise slows down, counterclockwise speeds up. Adjust “closing zone” (180°-15°) first, then “latching zone” (15°-0°).
Step 6 – Test hold open
Open the door to 90° and check if it stays in position. If not, fine-tune the internal hold open cam (refer to manual).
Step 7 – Install cover plate
Snap on the stainless steel cover plate for a clean finish.
Professional tip: Floor spring installation requires precise leveling. Professional door hardware installer recommended. For doors over 120kg, consider the heavy-duty version.
5. VS Competitors: Clear Advantages of This Bottom Hydraulic Door Closer
Comparison Ordinary Floor Spring This Bottom Hydraulic Door Closer
Body material Cast iron or low-grade aluminum High-strength die-cast aluminum alloy
Hydraulic oil Ordinary mineral oil, thickens in cold Stable fluid (-20°C to 50°C)
Hold open function Wears out easily Precision cam, lasts 3 years
Speed adjustment Single stage Two independent stages
Waterproof rating IP20 (indoor only) IP54 (dust/splash proof, indoor/outdoor)
Warranty 1 year 3 years
Max door weight 120kg 150kg
Customer voice: An engineering manager at a five-star hotel in Kuala Lumpur said, “Our old floor springs started leaking oil after two years, doors wouldn’t close properly. After switching to this bottom hydraulic closer, three years later they’re still smooth, and the 90-degree hold open is very stable. Guests say they don’t hear door noise.”
6. Use Cases – Malaysia (Detailed & Authentic)
Case 1: KLCC, Kuala Lumpur – High-end Office Tower
Project : Menara Standard Chartered Tower, lobby and skybridge glass doors.
Quantity : 24 sets of bottom hydraulic door closer (with hold open).
Installation type : Floor embedded, with 12mm frameless tempered glass.
Feedback : Facility Manager Encik Razif: “During peak hours, door usage is extremely high. This glass door closer provides excellent hydraulic cushioning – never had a door slamming into the frame. The 90-degree hold open also makes it easy for cleaning crews to move large equipment without holding the door. We have ordered another 16 sets for other floors.”
Result : Maintenance costs reduced by 40%; no oil leakage or hold open failure.
Case 2: George Town, Penang – Beachfront Boutique Hotel
Project : Muntri Mews Hotel, entrance and bar area frameless glass doors.
Quantity : 8 sets of floor spring (brushed stainless steel cover).
Special requirement : Coastal area with high humidity and salt mist, requiring rust resistance.
Feedback : Hotel owner Ms. Ling: “Our previous floor springs rusted within a year and had unstable closing speed. After installing this bottom hydraulic door closer, the stainless steel cover is still shiny after more than a year. Closing speed is adjustable, and it doesn’t disturb guests at night. The technician said the hydraulic oil hasn’t degraded. Highly recommended for other coastal properties.”
Related link : For similar high-humidity environments, check our Shower Door Roller / Sliding Roller series.
Case 3: Iskandar Puteri, Johor Bahru – Large Shopping Mall
Project : Aeon Mall Bandar Dato Onn, all glass fire doors and store entrances.
Quantity : 112 sets of floor spring with hold open.
Installation type : Embedded, with fire-rated glass doors.
Feedback : Mall Operations Manager Encik Faizal: “The mall requires doors to close automatically and comply with fire codes, while allowing 90-degree hold open for emergency evacuation. This hydraulic door closer meets all requirements. The installation team said the template was very clear, saving 30% installation time. After two years of heavy use, only two units needed minor speed adjustment – the rest perform perfectly.”
Internal link : View Shower Door Support Bar / Stabilizing Bar to reinforce glass doors over 2.4m tall.
Q2: Can I get a hold open angle other than 90 degrees?
A: Standard product provides 90° ± 3° hold open. If you need other angles (e.g., 105° or 120°), custom orders are available.
Q3: Does installation require cutting into the floor?
A: Yes, a recess of approx. 300×300×80mm is required. For existing finished floors, consider installation during renovation. We also offer a surface-mount conversion base (sold separately).
Q4: Can I adjust the closing speed myself?
A: Yes. The closer has two independent adjustment valves: one for 180°-15° closing zone, and one for 15°-0° latching zone. Use the provided Allen key – very easy.
Q5: Is it waterproof? Can it be used outdoors?
A: The product has an IP54 rating – dust and splash resistant. The stainless steel shaft and cover are rust-proof. Suitable for semi-outdoor environments (e.g., balcony doors under a canopy, courtyard doors). Not recommended for permanent water immersion.
Q6: What does the 3-year warranty cover? What if it leaks oil?
A: Any non-artificial manufacturing defects (including oil leakage, body crack, hold open failure) within 3 years are covered by free replacement. Please retain proof of purchase and contact us via online technical support.
Q7: Is there a video installation guide?
A: Welcome to visit our YouTube channel for detailed installation demonstrations: Official Hardware Channel
8. Related Product Recommendations
To build a complete glass door control system, we recommend the following products:
Shower Door Pivot – For small shower glass door top or bottom pivots.
Shower Door Roller / Sliding Roller – If you need sliding glass doors, choose our stainless steel rollers.
Shower Door Support Bar / Stabilizing Bar – For reinforcing large glass doors to prevent wobbling.
Buy this bottom hydraulic door closer today – smooth, silent, durable hydraulic control and hold open for your glass doors.
Heavy-duty frameless glass doors in modern commercial spaces and high-end residences require a reliable door control system. A bottom hydraulic door closer (also known as floor spring) not only bears the door weight and rotation but also provides smooth closing, cushioning silence, and hold-open function. This glass door bottom hydraulic closer integrates three core functions: hydraulic closing, bottom pivot, and 90-degree hold open. It is the ideal choice for hotels, malls, office buildings, and villa glass doors.
1. Technical Specifications
Parameter Value
Product Name Bottom Hydraulic Door Closer (Floor Spring)
Suitable Door Type Frameless glass, framed glass, wooden door
Max Door Width 1200mm
Max Door Weight 150kg
Opening Angle Up to 130° (Hold open at 90° adjustable)
Closing Speed Two-stage adjustable (180°-15° and 15°-0°)
Hold Open Function 90° ± 3° automatic hold open
Material Body: Cast aluminum alloy / Shaft: Stainless steel
Finish Plated / Brushed stainless steel cover plate
Installation Floor embedded (requires recess)
Suitable Glass Thickness 8-12mm tempered glass
Warranty 3 years

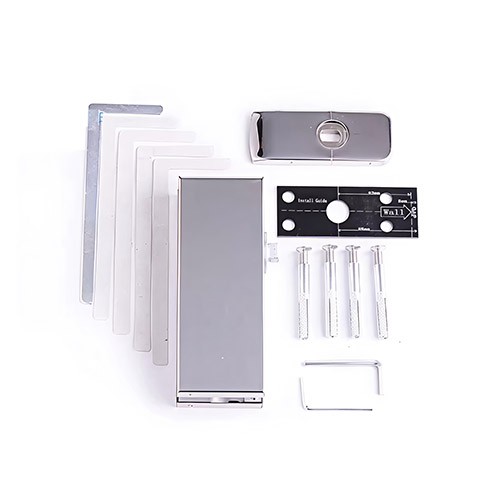

Packaging Standard export carton (includes template, screws, cover)
This floor spring uses a high-strength die-cast aluminum body with a precision-honed hydraulic cylinder, ensuring oil flow stability and no leakage. The bottom pivot is made of stainless steel, corrosion-resistant and high load capacity. Closing speed is controlled by two independent adjustment valves for “closing zone” and “latching zone” to suit different environments. The 90-degree hold open function allows the door to stay open when opened to 90°, convenient for moving large items or maintaining ventilation. The cover plate is brushed stainless steel or plated, matching the glass door style and providing waterproof and rust-proof properties.
3. Application Scenarios Complete Example
Hotel Lobby Entrance : With 12mm frameless glass door, handling high foot traffic. Door holds open at 90° for luggage carts.
Retail Store Front : Heavy glass door needs hydraulic cushioning to prevent impact and extend door life.
Office Building : Meeting room glass door requires silent closing without disturbing meetings.
Hospital/Clinic : Adjustable slow closing prevents pinching patients.
Villa Courtyard : Glass door with floor spring is aesthetic and wind-resistant.
4. Installation Instructions (Step-by-Step)
Tools required: Rotary hammer, spirit level, measuring tape, cement mortar, Phillips screwdriver, template paper.
Step 1 – Prepare recess
Mark and cut a recess of approx. 300×300×80mm (L×W×D) in the floor according to the provided template. Ensure the recess bottom is flat and clean.
Step 2 – Embed the box
Place the floor spring body into the recess. Adjust the level so the top surface is flush with the finished floor (0-2mm below). Secure with cement mortar, maintaining vertical and horizontal level.
Step 3 – Install shaft and top pivot
After mortar cures, install the stainless steel shaft. Install the top pivot on the door frame or upper transom. Ensure vertical alignment of top and bottom pivots.
Step 4 – Hang the glass door
Align the bottom hole of the tempered glass door with the floor spring shaft, then insert the top pivot. Adjust door verticality and gaps (side gaps 2-3mm, top/bottom gaps 3-5mm).
Step 5 – Adjust closing speed
Use the provided Allen key to turn the adjustment valves. Typically clockwise slows down, counterclockwise speeds up. Adjust “closing zone” (180°-15°) first, then “latching zone” (15°-0°).
Step 6 – Test hold open
Open the door to 90° and check if it stays in position. If not, fine-tune the internal hold open cam (refer to manual).
Step 7 – Install cover plate
Snap on the stainless steel cover plate for a clean finish.
Professional tip: Floor spring installation requires precise leveling. Professional door hardware installer recommended. For doors over 120kg, consider the heavy-duty version.
5. VS Competitors: Clear Advantages of This Bottom Hydraulic Door Closer
Comparison Ordinary Floor Spring This Bottom Hydraulic Door Closer
Body material Cast iron or low-grade aluminum High-strength die-cast aluminum alloy
Hydraulic oil Ordinary mineral oil, thickens in cold Stable fluid (-20°C to 50°C)
Hold open function Wears out easily Precision cam, lasts 3 years
Speed adjustment Single stage Two independent stages
Waterproof rating IP20 (indoor only) IP54 (dust/splash proof, indoor/outdoor)
Warranty 1 year 3 years
Max door weight 120kg 150kg
Customer voice: An engineering manager at a five-star hotel in Kuala Lumpur said, “Our old floor springs started leaking oil after two years, doors wouldn’t close properly. After switching to this bottom hydraulic closer, three years later they’re still smooth, and the 90-degree hold open is very stable. Guests say they don’t hear door noise.”
6. Use Cases – Malaysia (Detailed & Authentic)
Case 1: KLCC, Kuala Lumpur – High-end Office Tower
Project : Menara Standard Chartered Tower, lobby and skybridge glass doors.
Quantity : 24 sets of bottom hydraulic door closer (with hold open).
Installation type : Floor embedded, with 12mm frameless tempered glass.
Feedback : Facility Manager Encik Razif: “During peak hours, door usage is extremely high. This glass door closer provides excellent hydraulic cushioning – never had a door slamming into the frame. The 90-degree hold open also makes it easy for cleaning crews to move large equipment without holding the door. We have ordered another 16 sets for other floors.”
Result : Maintenance costs reduced by 40%; no oil leakage or hold open failure.
Case 2: George Town, Penang – Beachfront Boutique Hotel
Project : Muntri Mews Hotel, entrance and bar area frameless glass doors.
Quantity : 8 sets of floor spring (brushed stainless steel cover).
Special requirement : Coastal area with high humidity and salt mist, requiring rust resistance.
Feedback : Hotel owner Ms. Ling: “Our previous floor springs rusted within a year and had unstable closing speed. After installing this bottom hydraulic door closer, the stainless steel cover is still shiny after more than a year. Closing speed is adjustable, and it doesn’t disturb guests at night. The technician said the hydraulic oil hasn’t degraded. Highly recommended for other coastal properties.”
Related link : For similar high-humidity environments, check our Shower Door Roller / Sliding Roller series.
Case 3: Iskandar Puteri, Johor Bahru – Large Shopping Mall
Project : Aeon Mall Bandar Dato Onn, all glass fire doors and store entrances.
Quantity : 112 sets of floor spring with hold open.
Installation type : Embedded, with fire-rated glass doors.
Feedback : Mall Operations Manager Encik Faizal: “The mall requires doors to close automatically and comply with fire codes, while allowing 90-degree hold open for emergency evacuation. This hydraulic door closer meets all requirements. The installation team said the template was very clear, saving 30% installation time. After two years of heavy use, only two units needed minor speed adjustment – the rest perform perfectly.”
Internal link : View Shower Door Support Bar / Stabilizing Bar to reinforce glass doors over 2.4m tall.
7. Structured FAQ (Topic Cluster)
Q1: What door weight is this bottom hydraulic door closer suitable for?
A: Maximum 150kg and maximum door width 1200mm. For heavier doors (e.g., copper or solid wood), please contact us for a heavy-duty version.Q2: Can I get a hold open angle other than 90 degrees?
A: Standard product provides 90° ± 3° hold open. If you need other angles (e.g., 105° or 120°), custom orders are available.
Q3: Does installation require cutting into the floor?
A: Yes, a recess of approx. 300×300×80mm is required. For existing finished floors, consider installation during renovation. We also offer a surface-mount conversion base (sold separately).
Q4: Can I adjust the closing speed myself?
A: Yes. The closer has two independent adjustment valves: one for 180°-15° closing zone, and one for 15°-0° latching zone. Use the provided Allen key – very easy.
Q5: Is it waterproof? Can it be used outdoors?
A: The product has an IP54 rating – dust and splash resistant. The stainless steel shaft and cover are rust-proof. Suitable for semi-outdoor environments (e.g., balcony doors under a canopy, courtyard doors). Not recommended for permanent water immersion.
Q6: What does the 3-year warranty cover? What if it leaks oil?
A: Any non-artificial manufacturing defects (including oil leakage, body crack, hold open failure) within 3 years are covered by free replacement. Please retain proof of purchase and contact us via online technical support.
Q7: Is there a video installation guide?
A: Welcome to visit our YouTube channel for detailed installation demonstrations: Official Hardware Channel
8. Related Product Recommendations
To build a complete glass door control system, we recommend the following products:
Shower Door Pivot – For small shower glass door top or bottom pivots.
Shower Door Roller / Sliding Roller – If you need sliding glass doors, choose our stainless steel rollers.
Shower Door Support Bar / Stabilizing Bar – For reinforcing large glass doors to prevent wobbling.
Buy this bottom hydraulic door closer today – smooth, silent, durable hydraulic control and hold open for your glass doors.
