Stainless Steel Long Strip Pivot Glass Clamp (30 Base) for Shower Door | JC-183 / JC-184
Stainless Steel Long Strip Pivot Glass Clamp (30 Base) for Shower Door | JC-183 / JC-184
JC-183/JC-184 long strip pivot glass clamp (30 base) for 8–12mm tempered glass. Available in SS201/SS304 with brushed, mirror, black, and customizable finishes. Slotted mounting holes help fine adjustment during installation—ideal for shower door pivot systems and glass partition fittings.
In a shower door pivot system, the pivot clamp is one of the most important load-transfer points between the glass panel and the supporting structure. A well-designed clamp makes installation faster, keeps alignment stable, and helps the door open and close smoothly over time. The JC-183 / JC-184 Long Strip Pivot Glass Clamp (30 base) is built for real-world shower door and glass partition jobs where installers need both secure clamping and on-site adjustment.
Unlike compact mounting plates that leave little room for correction, this model features a long strip top plate with slotted holes, allowing practical fine-tuning during installation. It is designed for 8–12mm tempered glass, with stainless steel material options and multiple surface finishes to match modern bathroom styles.
For more stainless steel shower door and glass hardware you can bundle with this clamp, visit:https://www.stainlesssteelhardwares.com/products.html
1) Quick Overview: What this pivot glass clamp is designed to solve
Shower door projects often face small but costly issues: wall surfaces not perfectly plumb, hole positions slightly off, or limited adjustment space once the glass is in place. The JC-183/JC-184 clamp addresses these common problems through:
Slotted mounting holes for easier alignment
The elongated slots provide lateral adjustability so installers can compensate for minor drilling or substrate deviations.
A longer mounting footprint
The long strip plate distributes fixing forces more evenly—especially useful for doors that open and close frequently.
A compact clamping section for glass
The clamp section is designed to fit typical shower door layouts without occupying unnecessary space.
This makes the product a practical choice for shower enclosures, dry/wet separation screens, and commercial restroom glass partitions where both appearance and reliability matter.
2) Application Range: Glass thickness & common use cases
Suitable glass thickness: 8–12mm tempered glass
Typical applications:
Pivot shower doors (single swing doors paired with fixed panels)
Glass partition doors in hotels, offices, and residential bathrooms
Projects requiring black or dark-tone hardware themes for modern interiors
If you are selecting a full set of fittings (handles, hinges, connectors, clamps), it’s often best to keep material grade and finish consistent across all items. You can view other compatible hardware on your product listing page:
https://www.stainlesssteelhardwares.com/products.html
3) Material Options & Finishes: SS201/SS304, brushed/mirror/black/custom
Main material: Stainless steel SS201 or SS304
High-humidity shower environments: SS304 is generally preferred for better corrosion resistance and long-term performance.
Budget-driven or less demanding environments: SS201 may be considered depending on project expectations.
Design-led projects: Black and customized finishes help match frames, handles, and other bathroom accessories.
JC-183 vs JC-184

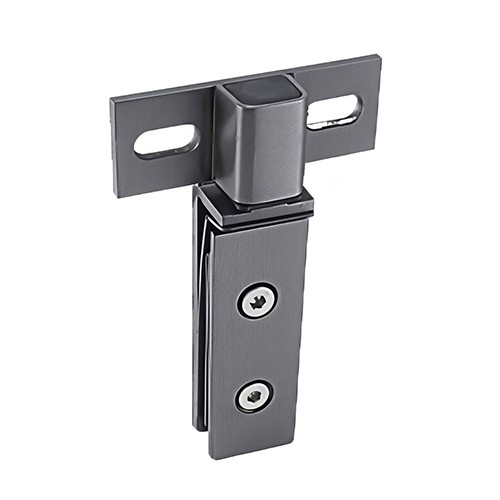

JC-183: gunmetal / dark metallic look (often chosen for contemporary “metal grey” interiors)

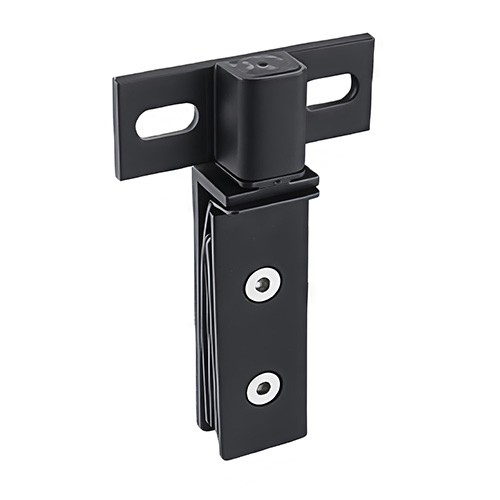

JC-184: matte black look (popular in minimalist black-frame shower designs)
4) Design Details: Why the long strip + clamp format works
This clamp is built around a simple idea: keep the installer’s work flexible while ensuring the glass remains stable.
Long strip top plate
Offers a more forgiving mounting zone and helps distribute load across a wider fixing area.
Slotted holes
Enable fine adjustment before final tightening. This is especially useful when coordinating door gaps, vertical alignment, and closure lines.
Glass clamping section
Designed to hold 8–12mm tempered glass securely. (Final configuration—gaskets or protective pads—depends on shipment specification and project requirements.)
For projects where matching aesthetics across multiple items is important, consider selecting additional components (e.g., glass clamps, handles, connectors) from the same supplier catalog to reduce finish variation risk: https://www.stainlesssteelhardwares.com/products.html

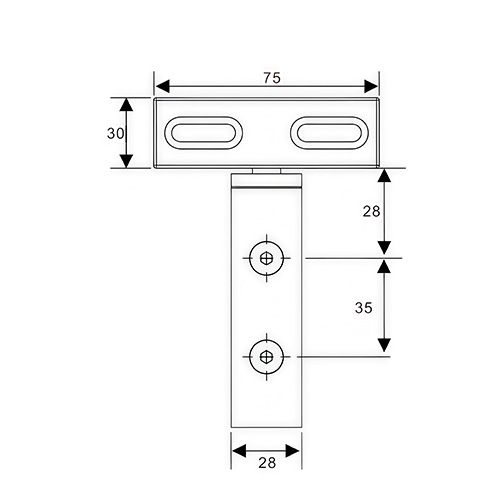

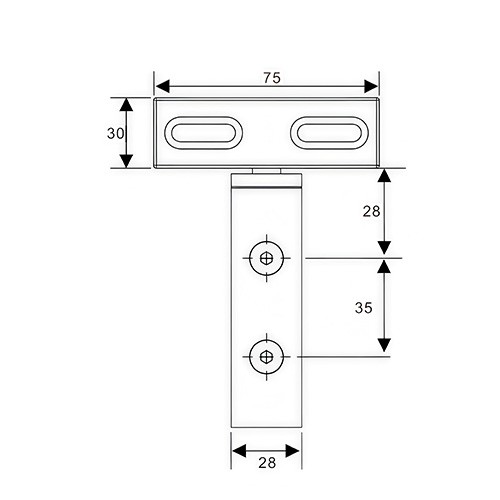

5) Key Dimensions (for technical verification)
Based on the provided drawing, typical reference dimensions include:
Top mounting plate length: approx. 75mm
Top mounting plate width: approx. 30mm
Glass clamp section width: approx. 28mm
Hole spacing and other details: verify with the drawing for your installation plan
If you need engineering confirmation for a specific project (door weight, door width, substrate type), it’s recommended to confirm these parameters during quotation to ensure the pivot system components are properly matched.
6) Choosing JC-183 or JC-184: a practical decision checklist
Because the structure and application range are consistent, selection is usually finish-driven:
Choose JC-183 (gunmetal) if:
Your project uses dark grey metallic accents
You want a “premium metal” look without full matte black styling
Choose JC-184 (matte black) if:
The shower frame and accessories are matte black
You want a minimalist black-and-white aesthetic
For large projects sensitive to finish consistency, consider standardizing one finish across all fittings or requesting a controlled custom color for batch uniformity.
7) Installation Tips
To ensure smooth operation and long service life, these installation practices are commonly recommended:
Confirm glass specification and edge finishing
Use 8–12mm tempered glass and appropriate edge finishing (arrised/polished edges) for safety and durability.
Check substrate strength
Make sure the mounting surface (wall, frame, support structure) can handle operational loads. Select anchors/fasteners suitable for the substrate.
Use the slot adjustment wisely
Pre-tighten first, align the door position and gaps, then fully tighten once alignment is correct.
Re-check fasteners after initial use
After a short period (e.g., 1–2 weeks of use), a quick inspection helps confirm everything remains secure.
Note: Pivot systems vary widely (top pivot, bottom pivot, floor hardware combinations). For best matching advice, share door size, approximate door weight, glass thickness, and installation structure during inquiry.
8) Maintenance & Cleaning
Wipe with a soft cloth and mild cleaner to maintain appearance.
Avoid prolonged exposure to strong acidic/alkaline chemicals.
This clamp series can support typical project requirements such as:
Material selection: SS201 / SS304
Finish selection: brushed, mirror, black, custom colors
Bundled supply: compatible shower door and glass hardware can be supplied together to reduce multi-vendor coordination
To plan a complete set, you can select additional items from your product catalog page and send one combined inquiry:https://www.stainlesssteelhardwares.com/products.html
10) FAQ
Q1: Can this clamp be used with laminated glass?
A: The stated range is 8–12mm tempered glass. Laminated glass may be possible if thickness and edge structure match—please confirm with your actual specification.
Q2: Can the black finish be customized for gloss level or shade?
A: Black and custom colors are available. For strict color matching, providing a sample or finish standard helps achieve better consistency.
Q3: What’s the fastest way to decide between JC-183 and JC-184?
A: Choose based on your overall bathroom hardware theme (gunmetal vs matte black). For projects using multiple black fittings, standardize the finish system to minimize visual variation.
