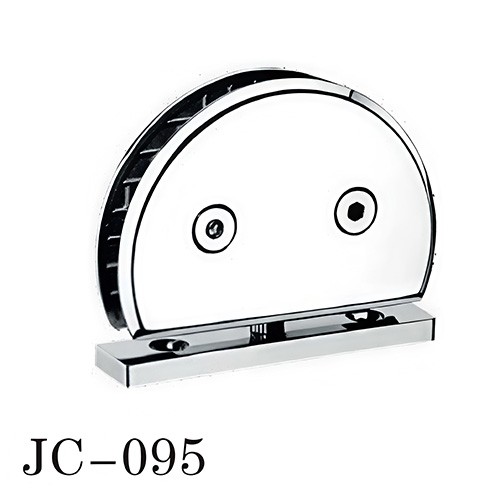

Heavy-Duty Stainless Steel Wall Mount Shower Door Pivot Hinge
Heavy-Duty Stainless Steel Wall Mount Shower Door Pivot Hinge
Discover the JC-095 heavy-duty wall mount shower pivot hinge. Crafted from premium 304 stainless steel, it supports up to 88 lbs (40kg) per pair for 5/16" to 3/8" (8-10mm) glass doors. Features a 25° self-closing mechanism for a sleek, smooth, and elegant frameless shower experience.
In the realm of contemporary bathroom architecture, spatial flow and visual openness are paramount. Frameless shower doors are celebrated for their transparency, but the way a door opens defines the space's user experience and aesthetic ceiling. It's time to move beyond the visual interruption of traditional side-mount hinges and embrace a more elegant, architectural solution: the JC-095 Heavy-Duty Stainless Steel Wall Mount Pivot Hinge. This component is more than functional hardware; it's a design statement. It transforms the act of opening a shower door into a smooth, graceful ceremony, bringing an unparalleled level of minimalist charm to your bathroom sanctuary.
The Allure of the Pivot: Why Choose a Pivot Hinge?
A shower door pivot hinge is a specialized hinge that places the door's axis of rotation inboard from the edge, rather than along the frame. The JC-095 series is an outstanding example of this design, offering distinct advantages over conventional hinges:
Minimalist Visuals: Because the stress points are concentrated at the top and bottom of the door (or on one wall-mounted side), there's no need for a vertical line of hinges. This allows for an incredibly tight and uniform gap between the door and wall, creating a "floating door" illusion. This maximizes the transparency of the glass, making the entire space feel larger and cleaner.
Unique Opening Experience: When a pivot door opens, a portion of the door swings inward while the rest swings outward. This unique dynamic is a design feature in itself. It provides ample clearance for entry and exit while requiring less outward swing space than a side-hinged door of the same width, making it ideal for compact bathrooms.
Balanced Structural Support: This wall mount pivot hinge transfers the door's weight vertically to the floor and a reinforced point above. Compared to side-mount hinges that apply all torque to a single vertical line on the wall, this system offers a more balanced and scientifically sound distribution of force. This not only supports heavier doors but is also friendlier to the installation wall.
Engineered for Excellence: A Technical Deep Dive into the JC-095
Our stainless steel pivot hinge demonstrates an obsession with quality and performance in every detail.
1. Intelligent Self-Closing Mechanism for Convenience & Safety
This self-closing shower hinge integrates a precision-engineered mechanism. When the door is moved to within a 25-degree arc of the closed position, it will smoothly and automatically return to center. This feature provides multiple benefits:
Convenience: No need to consciously pull the door fully shut every time. Especially with wet hands or when carrying items, the door takes care of itself.
Heat Retention & Splash Prevention: Ensures the shower door remains closed, effectively trapping heat and preventing water from splashing out, keeping the rest of your bathroom dry.
Enhanced Safety: Prevents the door from swinging unexpectedly due to drafts or accidental nudges, making it a safer option for households with children and seniors.
2. Heavy-Duty Capacity: Built for Stability
The JC-095 series frameless glass door pivot is specifically engineered for today's large, heavy glass doors.
Supports 88 lbs (40kg) Per Pair: Rigorously tested, a pair of these hinges (typically one top, one bottom) can reliably support a door weighing up to 40 kg (approx. 88 pounds), giving you the confidence to specify thicker, more substantial glass.
Accommodates Wide Doors: Perfectly suited for glass doors ranging from 600mm to 800mm (approx. 23.6" to 31.5", or 2 to 2.6 feet) in width, fitting most standard and custom shower openings.
Glass Thickness Compatibility: Designed for 8mm to 10mm (5/16" to 3/8") thick tempered glass, the most common specifications for high-quality frameless shower doors.
3. Elegant and Robust Design
The design of this semi-circle hinge marries aesthetics with function.
Elegant Semi-Circle Form: The unique half-moon shape softens the coldness of metal, adding a touch of geometric beauty and design interest to the bathroom.
Premium SUS 304 Stainless Steel: Forged from high-industry-standard stainless steel, it guarantees long-lasting performance without rust or discoloration in high-humidity bathroom environments, retaining its luster and strength for years to come.
Versatile Finishes: Available in Polished, Satin (Brushed), Matte Black, and other finishes to create a perfect match with your faucets, showerhead, and other bathroom pivot hinge hardware.
Application Scenarios & Pairing Recommendations
The JC-095 shower door pivot hinge is incredibly versatile, capable of sparking endless design inspiration.
The Master Bathroom Centerpiece: Use it for the main shower entrance in a master bath to instantly elevate the entire space with its unique opening and premium feel.
Hotels and High-End Clubs: In commercial projects, its durability, self-closing feature, and ease of cleaning make it an ideal choice for hotel suites, fitness centers, and spa shower areas.
Interior Glass Partitions: Beyond the shower, it’s equally suitable for a glass door connecting a bedroom to a walk-in closet or as a stylish glass door for a home office, enabling both transparency and division.
For a complete and harmonious shower space, consistency in hardware is key. While the JC-095 offers a distinct pivot solution, some designs may still require traditional side-hinged doors. In such cases, you can browse our extensive collection of Stainless Steel Shower Door Hinges on our website to find matching styles, ensuring design integrity across your entire project.

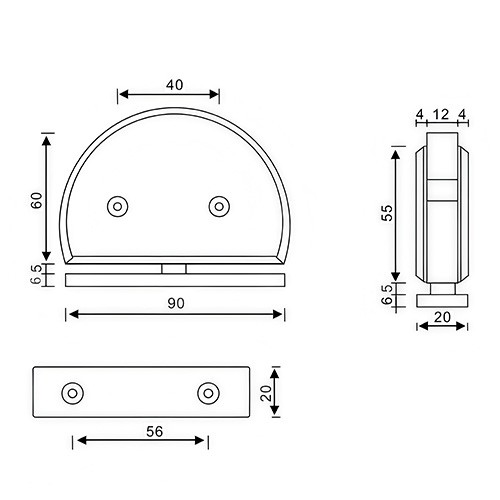

Technical Specifications & Installation Guidelines
Product Technical Parameters:
Product Name: Wall Mount Shower Door Pivot Hinge (JC-095)
Material: Quality SUS 304 Stainless Steel
Finish: Polished / Satin / Matte Black / etc.
Bearing Capacity: 40 kg/pair (approx. 88 lbs/pair)
Applicable Door Width: 600mm - 800mm (approx. 23.6" - 31.5")
Applicable Glass Thickness: 8mm - 10mm (approx. 5/16" - 3/8")
Features: Self-closing from a 25-degree angle
Precise Glass Fabrication: This is the key to success. The glass must be professionally fabricated with precise cut-outs at the top and bottom before tempering, according to our detailed technical drawings.
Secure Mounting Surface: Ensure the wall, floor, or ceiling where the hinge base will be mounted is solid, level, and plumb. Use appropriate fasteners to securely mount the hinge base.
Door Installation: Carefully lift the fabricated glass door and seat it into the top and bottom pivot hinge sockets, ensuring it is fully engaged.
Adjustment and Testing: After installation, open and close the door several times to check for smooth operation and to verify the self-closing function engages correctly. Check for even gaps around the door.
Conclusion: Infuse Your Design with Architectural Beauty
The JC-095 wall mount pivot hinge is more than high-performance shower hardware; it is a design element that elevates the quality of a space. It masterfully blends functionality, durability, and architectural aesthetics, redefining your interaction with the space by changing the very way a door opens. To choose the JC-095 is to choose a freer, more elegant, and more contemporary bathroom experience.
Incorporate this trend-setting glass door pivot into your design portfolio today and let every opening be a moment of beauty.
