L220A4 Double Arm Fin Spider Fitting | 220mm Stainless Steel Glass Connector
L220A4 stainless steel double-arm fin spider with 220mm center distance for curtain walls, skylights, and elevator façades. Strong and reliable glass connection.

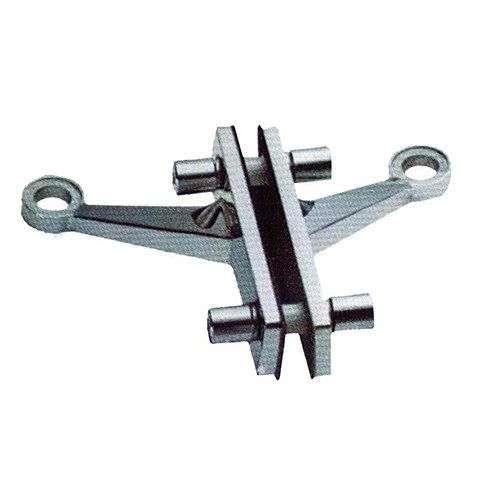

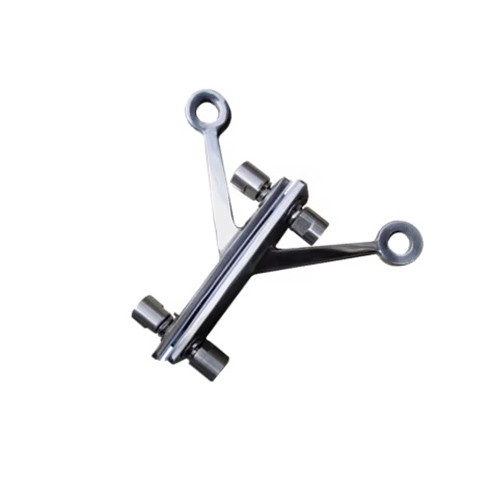

The L220A4 is a high-strength double-arm fin spider fitting with a 220mm center distance, designed for modern structural glass applications. Crafted from corrosion-resistant stainless steel, this spider fitting is ideal for curtain walls, steel skylight systems, and elevator enclosures. Its fin-type double-arm structure ensures even force distribution and secure, stable glass support, making it a preferred component in architectural glass systems.
✳ Features:
-
Double-arm design, suitable for corner or T-type glass connections
-

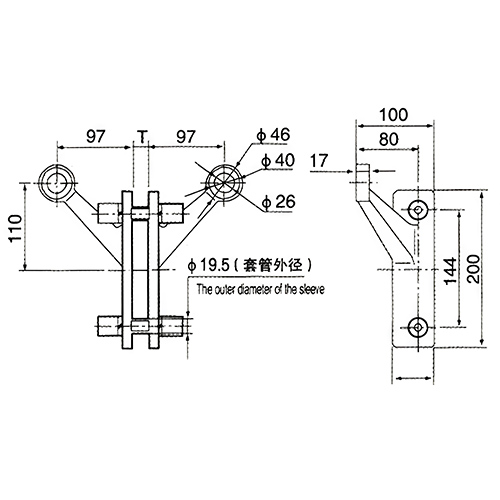

220mm center distance, compatible with standard curtain wall layouts
-
Material options: Available in both 304 and 316 stainless steel
-
Surface finishes: Satin brushed or mirror polished for aesthetic flexibility
-
Compatible with other accessories such as routels, bases, and tension rods
-
In stock and ready to ship, with OEM customization supported
✳ Application Scenarios:
-
Glass curtain walls in commercial buildings and plazas
-
Overhead skylight glazing systems in steel structures
-
Glass observation elevator façades
-
High-rise exterior glass canopies and awnings
-
Modern exhibition halls, office buildings, and hotels
✳ Usage Tips & Notes:
-
Ensure glass holes align precisely with spider arms before installation
-
Use with suitable glass pads and structural silicone for added safety
-
For coastal or high-humidity areas, 316 stainless steel is recommended
-
Installation should be done by professional façade system contractors
