J03 RL Four‑Way Adjustable Stainless Steel Glass Clamp
J03 RL stainless steel glass clamp designed for frameless glass railing systems. Heavy‑duty adjustable glass clamp fits 12–14 mm glass. Factory direct supplier, global glass hardware manufacturer servicing USA, Indonesia, UAE markets.

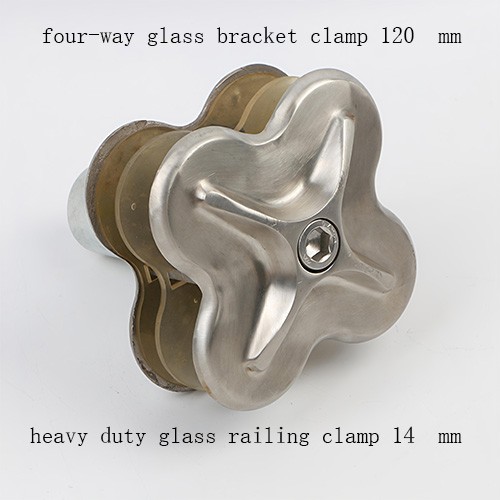

The J03 RL is a robust stainless steel glass clamp engineered for frameless glass railing systems. Featuring a cross‑shaped body at 120 × 120 mm, it secures glass panels in four directions and accommodates 12mm to 14mm thick glass. With an adjustable mounting system, installers can fine‑tune panel angles for perfect alignment.
Features & Attributes:
-
Material options: ASTM 316 stainless steel or Duplex 2205 for superior corrosion resistance
-

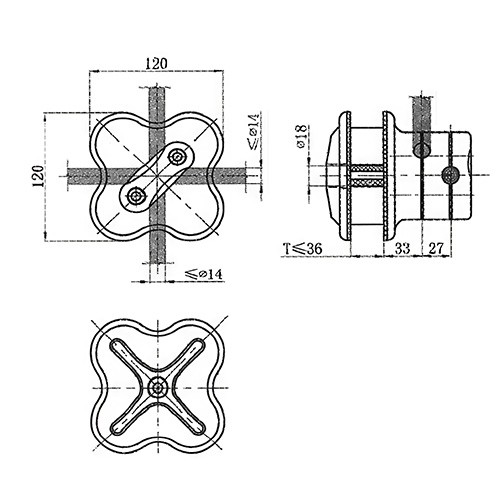

Dimensions: 120 × 120 mm cross clamp, body thickness 27–33mm, glass gap ≤36mm
-
Compatible glass: tempered glass thickness 12.7mm–14.0mm (1/2″–9/16″)
-
Finish: polished or brushed stainless steel, ideal for indoor and outdoor use
-
Adjustable via Allen key bolts to ensure tight glass fit
-
Available for OEM and custom orders; wholesale factory direct supply
Usage Scenarios & Precautions:
Ideal for indoor/outdoor glass railings, balconies, pool fencing, stairwell glazing, and office partitions. During installation, insert glass panel evenly and progressively tighten all bolts for balance. Ensure glass thickness within specified range for safety. For corrosive environments (e.g. coastal areas), choose Duplex 2205 stainless steel.
Performance & Technical Specs:
-
Load capacity: varies based on installation pattern
-
Glass thickness: 12.7–14.0mm
-
Material: 316 SS or Duplex 2205
-
Dimensions: 120 mm × 120 mm × 27–36 mm
-
Surface finish: polished/brushed
-
Weight: approx. 0.8 kg each
Application: Glass railing systems, stair glass panels, balcony safety barriers, outdoor fencing, commercial glazing partitions. Exported to USA, UAE, Indonesia, Canada, etc.
FAQ:
Q: Can J03 RL be custom‑sized or branded?
A: Yes. We offer OEM customization including custom dimensions, material, surface finish and logo as a glass clamp manufacturer.
Q: What glass thickness is compatible?
A: Suitable for 12mm to 14mm tempered glass. Please adhere strictly to this range for optimal safety.
Q: Is it suitable for seaside locations?
A: Choose Duplex 2205 SS version for enhanced corrosion resistance, perfect for marine and high‑humidity environments.
