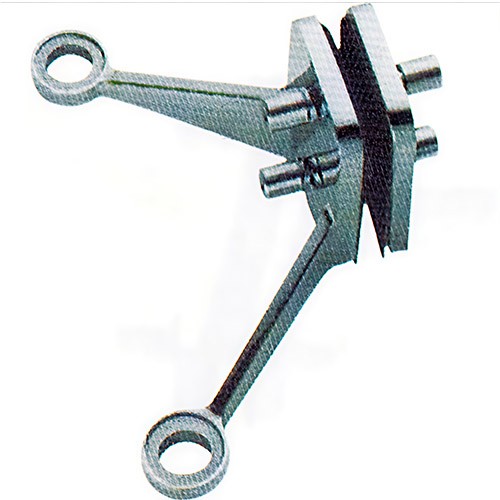

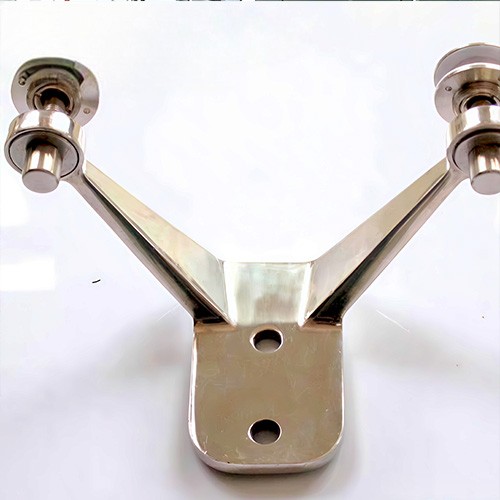

L250B5 Two-Claw Fin Spider Fitting | Stainless Steel Glass Connector

Overview
The L250B5 two-claw fin spider fitting is a modern stainless steel glass connector designed for architectural curtain walls, hotel canopies, elevator shafts, and villa skylights. Built with corrosion-resistant SS304 or SS316, it features a sleek satin or mirror finish, and is suitable for use with 8–15mm tempered or laminated glass.

Features & Benefits

• 2-claw / two-arm design: Ideal for connecting vertical and horizontal glass, or glass to tension rods and brackets.

• Material: Available in stainless steel 304 or 316.

• Finish options: Satin-brushed or mirror-polished.

• Compatibility: Works with fin spider glass systems and point-fixed fittings.

• Support services: Includes free spare parts, technical assistance, and on-site training/inspection.

•

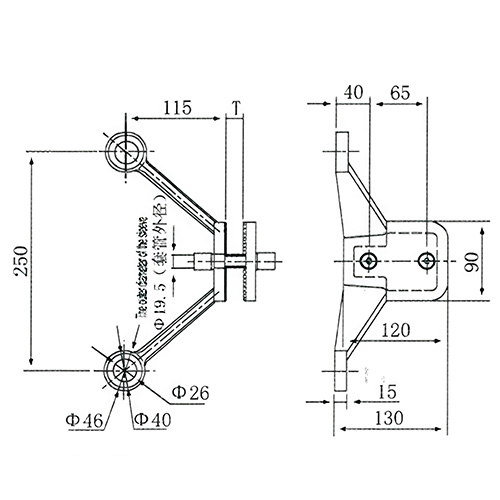

Specifications

• Model: L250B5

• Type: 2-Claw Spider Fitting

• Claw-to-claw spacing: 250mm

• Glass thickness: 8–15mm

• Surface: Satin or Mirror

• Material: SS304 / SS316

• Warranty: Over 5 years

• Service life: 20+ years

• Origin: Jiangsu, China

Applications
Widely used in:

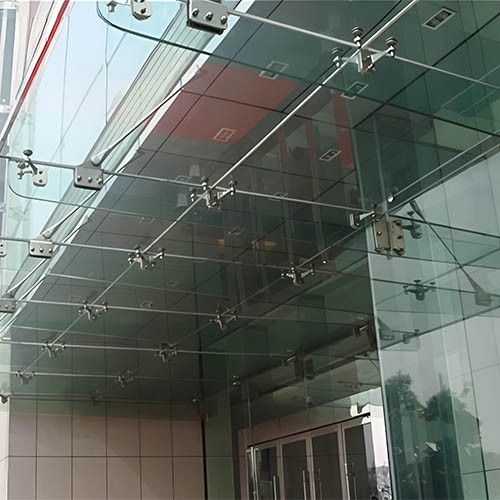

• Commercial glass canopies and skylights

• Hotel entrance curtain wall systems

• Glass observation elevators

• Modern villa glass roofs and facade systems

Installation & Maintenance
Use with stainless steel tension rods and glass hangers. Perform bolt inspections every 6 months. Clean using stainless steel-compatible solutions. For added load, consider the four-claw L250B8 model.

FAQ

Q1: What glass thickness is supported?
A: 8–15mm tempered or laminated safety glass.

Q2: Do you offer a four-claw version?
A: Yes, the L250B8 model is available for higher structural demand.

Q3: Can you ship globally?
A: Absolutely. We export to the USA, UAE, Indonesia, India, Germany, and more.

Q4: What maintenance is required?
A: Inspect bolts every 6 months and re-tighten if necessary. Spare parts are available upon request.
