Stainless Steel Glass Railing Installation in Istanbul | Leveling & Safety Guide

1. Project Background: High-Rise Balcony in Istanbul, Turkey

This project is located in Istanbul, Turkey, in a high-rise residential building close to the Marmara Sea. The owner wanted to upgrade from a traditional metal rail to a modern, transparent stainless steel glass railing Istanbul system.

Compared with a typical iron demir korkuluk, a paslanmaz cam korkuluk (stainless steel glass railing) offers clear advantages in Istanbul’s coastal environment:

Better corrosion resistance in humid, salty air;
Clean, modern appearance with a fully open view;
Easier cleaning and lower maintenance for apartments, residences and villas.
The main requirements were:

A safe railing for a high-rise balcony;
A perfectly straight line for the balcony glass railing Turkey along the whole edge;
Neat details with stable stainless steel posts and fittings.
To meet these needs, we used a system based on stainless steel railing posts + stainless steel handrail brackets + glass infill panels, forming a complete glass railing system Istanbul solution.

2. System Configuration: Posts, Brackets and Glass

In Istanbul and nearby cities such as Bursa, Kocaeli and Yalova, balcony railings must deal with wind, humidity and temperature changes. When designing this stainless steel glass railing Istanbul project, we focused on:

Stainless Steel Grade
Posts and rails use 304 or 316 stainless steel, ideal for paslanmaz çelik korkuluk Istanbul in outdoor conditions;
Brushed or mirror finishes improve corrosion resistance and appearance.
Stainless Steel Railing Posts
Post height follows local safety codes, usually 950–1100 mm;
Each stainless steel railing post has a reinforced base plate anchored to the concrete slab;
Post spacing is designed according to glass size and wind load to keep the balcony glass railing Turkey safe and stable.
Stainless Steel Handrail Brackets
Full product range here:
https://www.stainlesssteelhardwares.com/handrail-bracket.html

These stainless steel handrail brackets connect posts with top rails or side rails and are critical components in the glass railing system Istanbul:

Multiple angles and shapes to fit straight runs and corners;
Installer‑friendly design allowing fine adjustment on site, reducing welding work.
Glass Panels and Fittings
Tempered or laminated safety glass, commonly 10–12 mm thick;
Stainless steel glass clamps and spider fittings connect the glass to the posts;

Together they form a transparent, safe paslanmaz cam korkuluk system.

3. Installation Steps: From Layout to Glass Panels

The full installation of this stainless steel glass railing Istanbul project is shown in our YouTube short:
Installation video: https://www.youtube.com/shorts/Pa2Wt-1zswk

To achieve a straight, level balcony glass railing Turkey, we followed a strict sequence:

3.1 On-Site Measurement and Layout
Measure the overall balcony length along the edge;
Calculate spacing for each stainless steel railing post;
Mark the center of each post on the concrete slab, forming a continuous reference line.
Good layout prevents problems such as mismatched glass panel sizes and uneven gaps later.

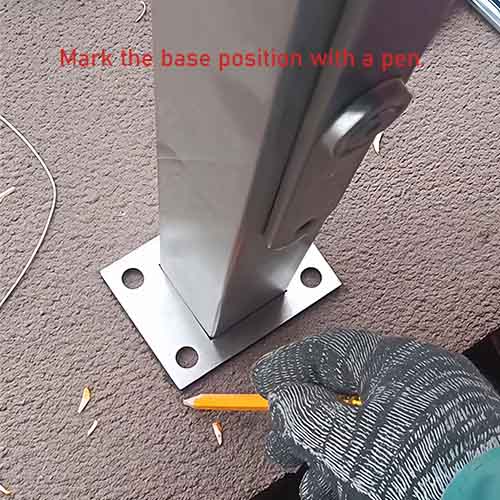

3.2 Marking Post Base Outlines
Place each stainless steel post on its mark so the post center matches the layout point;
Trace the full outline of each base plate with a marker;
When all outlines are drawn, you can visually check the future line of the paslanmaz korkuluk Istanbul.
This step helps installers detect any misalignment early, before drilling and fixing.

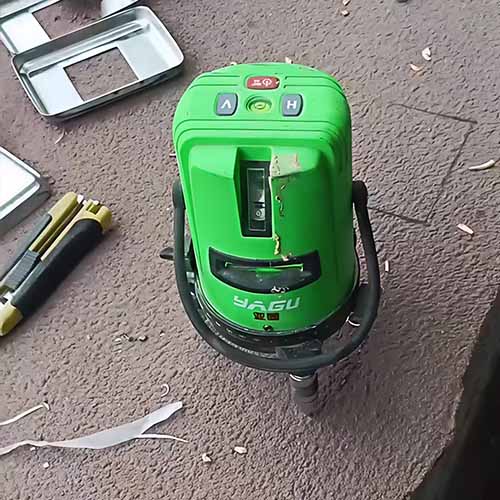

3.3 Leveling and Grinding High Spots
Balcony surfaces in Istanbul often have uneven tiles or concrete. If you mount stainless steel railing posts directly, the top of the railing will not be level and glass installation becomes difficult.

Use a spirit level to check multiple post positions and set a global height reference;
Where a spot is too high, locally grind or cut down the surface with a cutting machine;
Recheck with the level until the entire post‑installation plane is flat and level.
This is the key step for a premium‑quality stainless steel glass railing Istanbul installation.

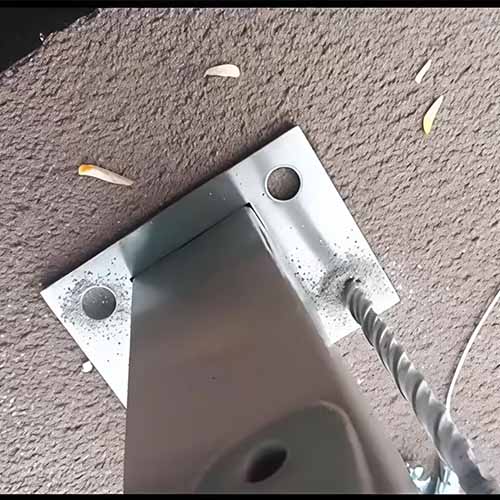

3.4 Drilling and Fixing with Expansion Bolts
Once the surface is leveled, we fix the posts:

Drill fixing holes through the marked base plate outlines into the structural concrete;
Insert the correct size expansion bolts and fasten each stainless steel railing post firmly;
Check the vertical alignment of every post and make minor adjustments before fully tightening.
These steps ensure the balcony glass railing Turkey can withstand daily use and wind loads safely.

3.5 Installing Stainless Steel Base Covers
To protect the fixing points and improve aesthetics:

Slide stainless steel base covers over the expansion bolts and post bases;
This hides the hardware, keeps dirt and water out, and gives the paslanmaz çelik korkuluk Istanbul a neat finish.
At this stage, the post line is straight and level, ready for the glass infill.

3.6 Glass Panel Installation
In the final phase of the glass railing system Istanbul:

Bring pre‑cut glass panels to the balcony according to the design sizes;
Use stainless steel glass clamps or spider fittings and other stainless steel handrail bracket accessories to connect glass to the posts;
Adjust the gaps between panels so the whole paslanmaz cam korkuluk looks continuous and aligned;

If a top rail is included, mount it onto the posts using stainless steel handrail brackets for added comfort and stiffness.

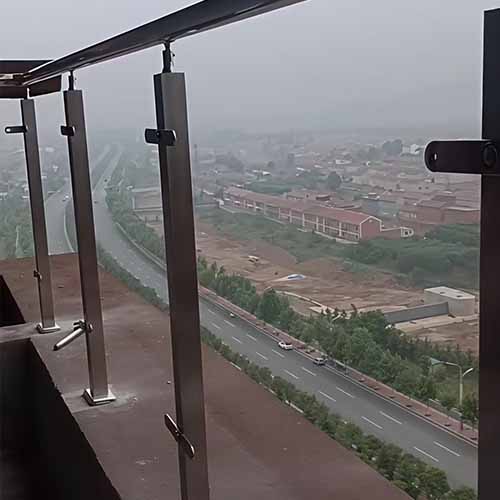

4. Final Result: Modern, Safe Balcony for Istanbul

After completion, this stainless steel glass railing Istanbul project delivers:

Open City and Sea Views
The glass infill replaces solid panels, giving the owner a wide, unobstructed view of Istanbul’s skyline and surrounding landscape.

Clean, Straight Lines
Because of the careful layout, leveling and grinding work, the finished balcony glass railing Turkey forms a perfectly straight horizontal line, with even joints and minimal visual clutter.

Durability for Istanbul’s Climate
A paslanmaz korkuluk Istanbul built from stainless steel handles sea wind, rain and sun better than painted iron railings, reducing long‑term maintenance.

Compatibility with Different Building Styles
This stainless steel balcony railing + glass railing system Istanbul fits modern apartment facades, villas and commercial buildings, upgrading the overall look of the property.

5. Applications in Istanbul and Surrounding Areas

The solution used in this project is flexible and can be applied in many locations:

Residential balconies and terraces on both the European and Asian sides of Istanbul;
Projects in nearby cities such as Bursa, Kocaeli, Yalova and Sakarya;
Shopping mall atriums, hotel terraces and office balconies using a glass railing system Istanbul;
Indoor stairs and mezzanines combining paslanmaz cam korkuluk with stainless steel handrail brackets.
For contractors, developers and distributors working in Turkey, a standardized set of stainless steel railing posts and stainless steel handrail brackets makes design, quoting and installation much easier.

6. Product Page and Cooperation

The stainless steel posts and fittings used in this case are available here:

Stainless Steel Handrail Bracket & Railing Hardware
https://www.stainlesssteelhardwares.com/handrail-bracket.html

On this page you’ll find:
Various models of stainless steel handrail bracket;
Compatible hardware for stainless steel railing posts, glass railings and stair handrails;
A complete set of components to build stainless steel glass railing Istanbul and balcony glass railing Turkey systems.
If you have a paslanmaz cam korkuluk / paslanmaz korkuluk Istanbul project in Istanbul or elsewhere in Turkey, feel free to contact us via the website. We can help with hardware selection and provide a complete bill of materials based on your drawings.
