In any high-end staircase balustrade or modern glass balcony project, the true measure of quality and safety lies in the details—specifically, the connections. As a vital component of our comprehensive architectural hardware range, our Premium Stainless Steel Handrail Fittings and Connectors are engineered to solve every challenge regarding tube joining, directional changes, wall mounting, and terminal finishing.
Say goodbye to ugly weld marks, complex on-site polishing, and misaligned joints. Our entire range of fittings—from adjustable elbows to flush joiners and wall flanges—is meticulously cast and machined for a Weld-Free Installation. This system empowers contractors, architects, and DIY enthusiasts to assemble incredibly robust handrails faster, cleaner, and with a flawless aesthetic finish.

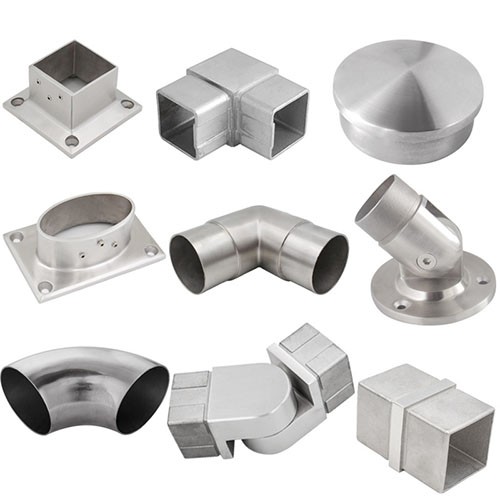

1. The Complete Fittings Matrix: Solutions for Every Project
Depending on your design requirements, we offer a full suite of connectors precisely matched to our standard round tubes, modern square tubes, and specialized slotted tubes designed for glass infills. Explore our core fitting categories:
1.1 Elbows & Corner Joints: Mastering the Angles
Navigating staircase inclines and platform landings can be the most challenging part of a balustrade installation. Our elbow series provides smooth, structural transitions:

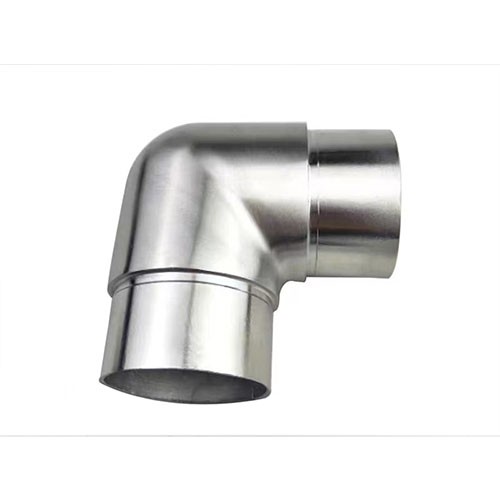

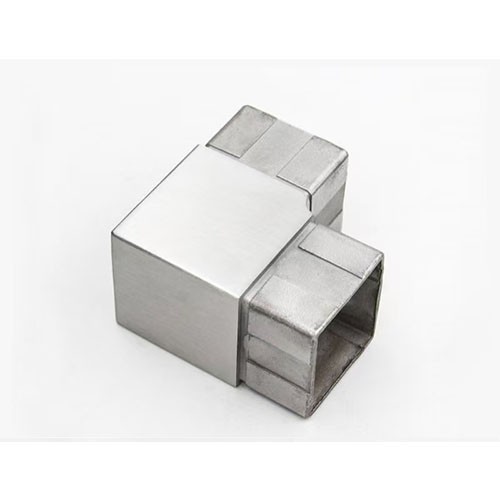

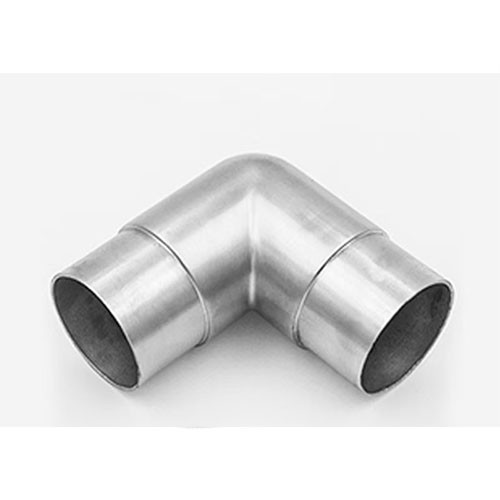

90-Degree Elbows (直角弯头): Available in both round and square profiles, these create sharp, minimalist right-angle turns perfect for modern industrial or geometric designs.

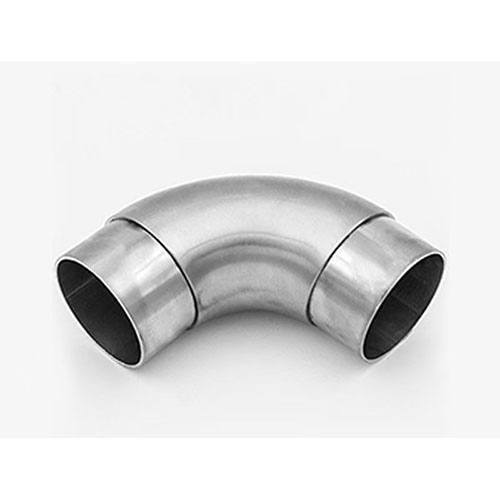

Curved/Swept Elbows (弧形弯头): Featuring a gentle, sweeping radius, these elbows comply with ergonomic standards for continuous grip, making them ideal for high-traffic commercial handrails.

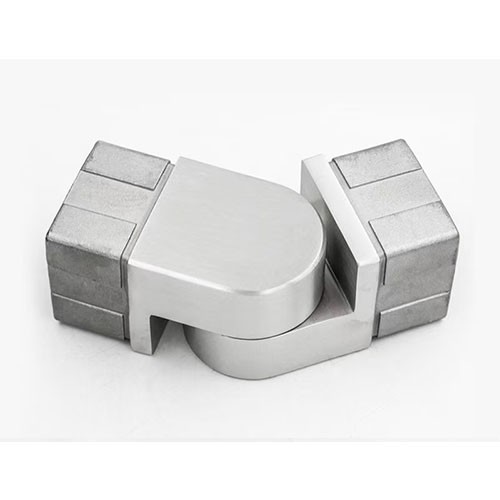

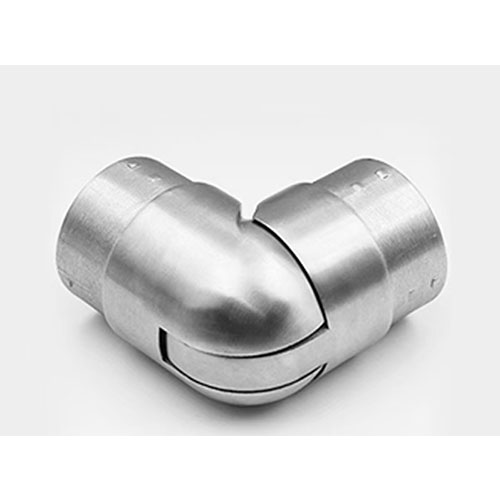

Adjustable / Universal Joints (活动万向弯头 - The Game Changer): Staircase pitches rarely measure exactly 45 degrees. Our multi-directional adjustable joints articulate smoothly from 0° up to 90° (and beyond in some models). This allows the handrail to perfectly match the unique gradient of any staircase or disability ramp on-site, completely eliminating the need for complex angle calculations and custom pipe bending.
For long balcony runs or continuous handrails:

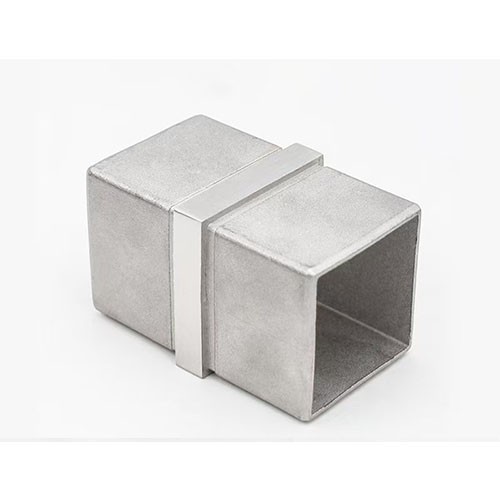

Straight Flush Joiners (直接头): When one length of tubing isn't enough, our straight connectors seamlessly splice two lengths of [Insert Link to: Stainless Steel Handrail Tube page] together. Once installed, the joint leaves only a microscopic hairline seam, achieving a flawless "flush fit" that looks like a single continuous pole.
1.3 Flanges & Base Plates: Rock-Solid Foundations
Safety begins with how the system is anchored to the building:

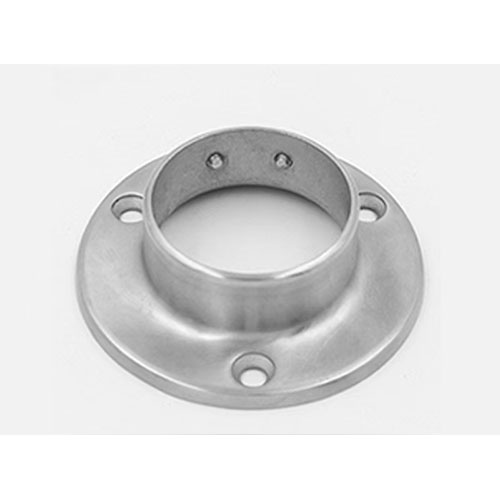

Wall Flanges (上墙法兰): Used when the handrail needs to terminate directly into a brick, concrete, or timber wall. They feature countersunk mounting holes to ensure screw heads sit perfectly flush.

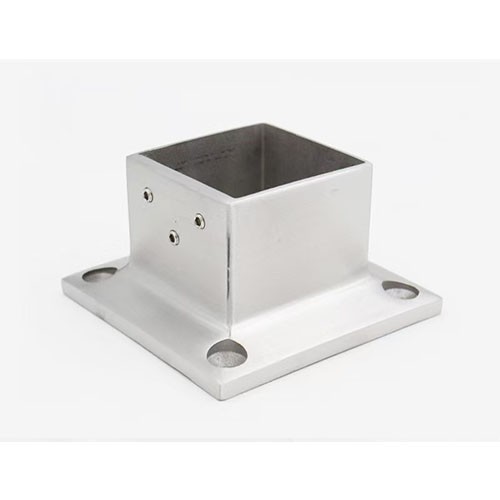

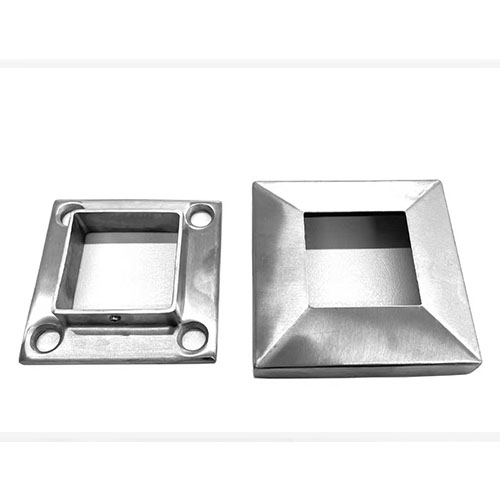

Base Flanges with Cover Caps (法兰+装饰盖): Designed for floor-mounted newel posts. Once the heavy-duty flange is bolted to the ground, the matching brushed or mirror-polished cover cap slides down to hide the unsightly expansion bolts, leaving a clean, architectural finish at the floor level.
An open tube is not only a hazard but invites corrosive moisture inside.

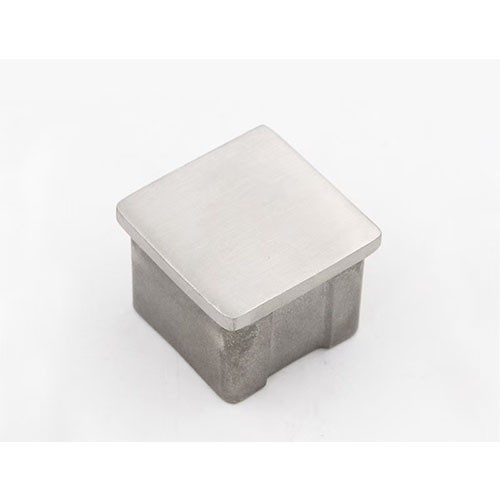

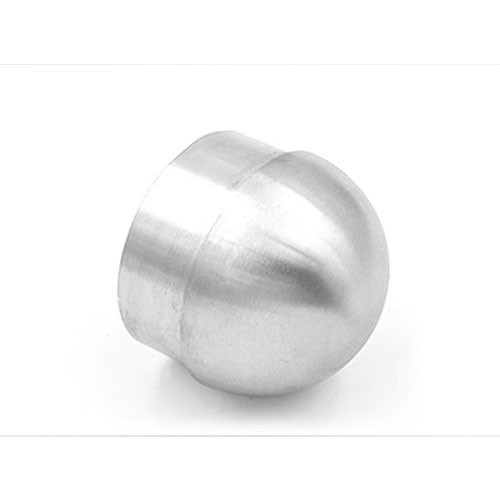

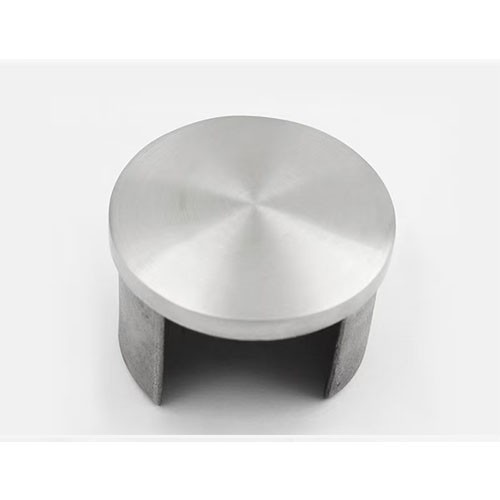

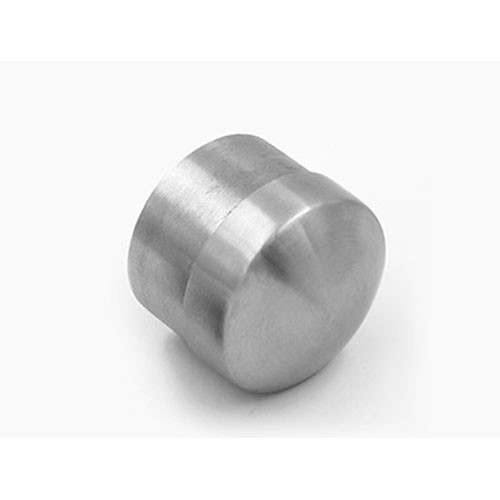

End Caps (封口盖): Available in Flat, Domed, and Hemispherical profiles. They tap securely into the ends of round, square, or [Insert Link to: Slotted/Oval tube for glass] tubes. These caps protect users from sharp metal edges and prevent dust and insects from accumulating inside the railing system.
Historically, assembling a stainless steel balustrade required highly skilled fabricators to TIG weld joints on-site, followed by hours of grinding, sanding, and repolishing to restore the metal's finish. Our fittings eliminate this entirely.
Precision Machining:
Every fitting features a precisely machined spigot (the insertion end) with a slight chamfer. This spigot is designed to slide perfectly into tubes with a standard wall thickness of 1.5mm or 2.0mm. Once pushed together, the outer diameter of the fitting perfectly matches the outer diameter of the tube, creating zero stepping or raised edges.
Glue-In Assembly (How it works):
To achieve a bond as strong as a weld without the fire hazards, simply apply a high-strength stainless steel structural adhesive (retaining compound) around the knurled spigot of the fitting. Slide it into the tube, wipe away any excess glue, and use masking tape to hold it in place. Within 24-48 hours, the glue cures anaerobically, creating a permanent, rock-solid joint that will not vibrate loose over time.
3. Material Integrity & Exquisite Surface Finishes
As a premier manufacturer, we understand that a fitting is only as good as the steel it’s made from. Due to their complex shapes, our fittings are manufactured using the advanced Investment Casting (Lost Wax) method, ensuring ultra-high material density and zero internal porosity.
Grade 304 vs. Grade 316: We offer our fittings in AISI 304 for standard indoor applications (like residential staircases) and marine-grade AISI 316 for outdoor, coastal, or high-humidity environments. Grade 316 contains molybdenum, which drastically prevents pitting and tea-staining from salt and pollution.
Matching Finishes: To ensure your handrail looks like a unified system, all fittings are available in our signature Satin/Brushed Finish (excellent for hiding fingerprints on stairways) and a luxurious Mirror Polished Finish (providing maximum corrosion resistance for coastal balconies).
Q1: Do I need to drill holes or use rivets with these fittings?
Answer: No drilling or riveting is required for the connections. The system is designed purely for structural adhesive (glue-in) assembly. The friction fit combined with the metal glue creates an incredibly strong bond that easily passes standard load tests for balustrades.
Q2: How do I lock the Adjustable Universal Joint at the correct angle?
Answer: Our adjustable elbows feature a discreet central hex-head (Allen key) grub screw. Once you have articulated the elbow to match the exact pitch of your stairs, you simply tighten this internal screw. The joint locks permanently in place and becomes entirely rigid.
Q3: How accurate do my tube cuts need to be?
Answer: While a straight, 90-degree cut is highly recommended, the beauty of our flush-fit connectors is that the shoulder of the fitting sits over the cut edge. This means minor imperfections or slight burrs from your drop saw will be completely hidden from view once the fitting is inserted. Just ensure you deburr the inside of the tube so the fitting can slide in smoothly.
Q4: Will the Wall Flanges support a heavy handrail on their own?
Answer: Our wall flanges are incredibly strong and designed to take significant load. However, the overall strength depends entirely on the substrate (the wall) and the fixings you use. We recommend using heavy-duty masonry anchors for brick/concrete, or ensuring you hit structural timber studs when mounting to drywall.
Q5: Can these fittings be used with glass balustrade systems?

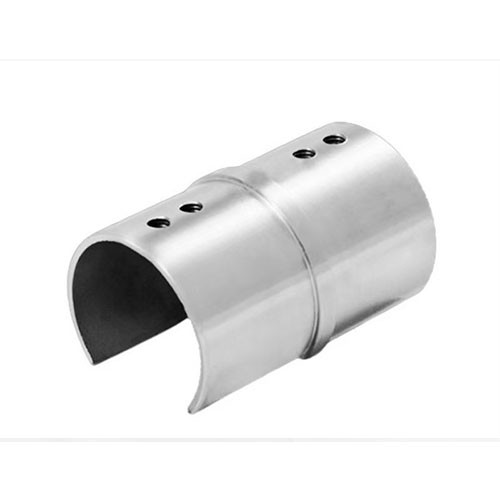

Answer: Absolutely. Many of these fittings, especially the slotted tube end caps and slotted corner elbows, are specifically manufactured to sit on top of our [Insert Link to: Premium Glass Balustrade System] as a continuous top rail, protecting the glass edges while providing a stylish grip.
Build Smarter, Not Harder.
Whether you are constructing a sleek frameless glass balcony or a complex multi-level wire-rope staircase, our Premium Stainless Steel Fittings provide the engineered precision you need. Browse our comprehensive range above, and experience the ultimate ease of weld-free architectural design.
