Premium Stainless Steel Handrail Tube: The Ultimate Solution for Modern Balustrades and Staircases
Welcome to the pinnacle of architectural hardware. Whether you are an architect designing a state-of-the-art commercial glass balustrade, a contractor outfitting a multi-level staircase with wire rod infills, or a homeowner upgrading your balcony decking, our Premium Stainless Steel Handrail Tubes deliver uncompromising quality.

Combining industry-leading manufacturing tolerances with cutting-edge installation technologies like our Fast-Fit system, we provide handrail tubing that guarantees structural integrity, flawless aesthetics, and lifetime durability. Manufactured directly by our advanced steel production facility, we cater to both standard retail requirements and large-scale custom B2B orders.

1. Comprehensive Technical Specifications
Our stainless steel tubing is engineered to meet the exact demands of modern architecture. While we specialize in the industry-standard sizes for handrails, our manufacturing capabilities extend far beyond to accommodate fully custom architectural projects.

Standard Handrail Specifications (Ready to Install)
Standard Outer Diameters (OD): 38.1mm, 42.4mm (Most Popular), 50.8mm
Standard Wall Thickness: 1.5mm, 2.0mm (Recommended for Structural Safety)
Available Pre-Cut Lengths: 1 metre, 2 metres, 3 metres, 4 metres
Application Method: Compatible with Fast-Fit technology, flush fittings, and standard brackets.
Factory-Direct Custom Capabilities (For B2B & Large Projects)
If your project requires specialized dimensions, our factory is equipped to produce stainless steel tubing to your exact blueprints:

Material Grades Available: AISI 201, 304, 304L, 316, 316L
Outer Diameter Range: 6mm up to a massive 1000mm
Wall Thickness Range: 0.30mm up to 8.0mm
Standard Manufacturing Length: 6000mm (6 Metres) as a standard production run, optimizing shipping and continuous installations.
2. Engineering Precision: Why Our Tolerances Matter
In the world of metal fabrication and architectural installations, precision is everything. A fraction of a millimetre can be the difference between a seamless installation and a structural failure. Our manufacturing process strictly adheres to ultra-precise engineering tolerances, making our tubes the preferred choice for professional installers.

Roundness Tolerance (±0.02mm): Handrail tubes are rarely used in isolation; they must connect to wall brackets, corner elbows, and end caps. Our strict ±0.02mm roundness tolerance ensures that every tube remains a perfect circle. This guarantees that internal and external fittings slide in effortlessly, creating a flush, hairline joint without the need for forcing, grinding, or hammering.
Straightness Tolerance (≤1.5mm per 1 metre): For long staircase runs or expansive balcony balustrades, bowed tubing is highly visible and structurally compromised. We guarantee a straightness deviation of less than 1.5mm per metre, ensuring perfectly linear sightlines for modern architectural designs.
Thickness Tolerance (±10%): Consistent wall thickness ensures that the structural load-bearing capacity remains uniform across the entire length of the handrail, eliminating weak points that could buckle under pressure.
Rigorous Quality Control: Before leaving our facility, every batch of stainless steel tubes undergoes strict Mechanical Property Testing (to verify tensile strength and yield stress) and Surface Roughness Testing (to ensure the tactile feel is smooth and safe for human hands).
3. Material Selection Guide: Choosing the Right Grade
Not all stainless steel is created equal. Understanding the metallurgical differences between grades is crucial for ensuring the longevity of your handrail system based on its environment. We offer a full spectrum of materials to suit your specific project:

Grade 316 / 316L (Marine Grade - Premium Choice)
As the standard for our Premium Balustrade Range, Grade 316 stainless steel contains a higher percentage of chromium and nickel, alongside the vital addition of molybdenum. Molybdenum significantly increases the steel's resistance to pitting and crevice corrosion, particularly in environments exposed to chlorides.

Best For: Outdoor glass balustrades, coastal properties (marine environments), swimming pool enclosures, and high-pollution urban areas.
316L Variant: The "L" stands for Low Carbon. If your installation requires extensive on-site TIG welding, 316L minimizes carbide precipitation during welding, preventing weld-decay and maintaining maximum corrosion resistance at the joints.
Grade 304 / 304L (Standard Grade)
The most versatile and widely used stainless steel in the world. It offers excellent corrosion resistance for most standard environments but lacks the molybdenum found in Grade 316.

Best For: Indoor staircases, internal commercial handrails, shopping mall barriers, and dry-climate outdoor projects. It offers an excellent balance of high quality and cost-effectiveness.
Grade 201 (Economy Grade)
Grade 201 uses manganese and nitrogen to replace some of the nickel found in 304. While it is highly durable and formable, it has a lower resistance to rust.

Best For: Strictly indoor applications in climate-controlled environments, decorative furniture, or budget-conscious interior handrail projects.
4. Surface Finishes for Architectural Excellence
The visual impact of a stainless steel handrail is determined by its surface finish. We offer a variety of surface treatments to match your architectural vision:

Brushed / Satin Finish (Standard): Characterized by fine, directional polishing lines, the brushed finish is the industry favorite. It provides a sleek, modern, and muted aesthetic. Crucially for handrails, the brushed texture excels at hiding fingerprints, minor scratches, and daily wear-and-tear, making it ideal for high-traffic public staircases and commercial balustrades.
Mirror Polished Finish: Polished to a highly reflective, mirror-like gleam, this finish is synonymous with luxury. The ultra-smooth surface means there are virtually no microscopic crevices for corrosive particles or salt to cling to, making mirror-polished tubing exceptionally resilient in severe coastal environments.
Pickled & Mill Finish: Primarily requested by B2B industrial clients or fabricators who intend to perform heavy welding, painting, or powder-coating on-site. The raw mill finish provides the perfect base for secondary surface treatments.
5. Versatile Architectural Applications
Our high-precision stainless steel tubes are designed to be the backbone of diverse architectural railing systems. Here are the two most prominent applications:

Application A: The Premium Glass Balustrade System
This product is a core component of our Premium Glass Balustrade with Handrail System. When combined with our 10mm toughened clear glass (featuring dubbed corners and polished edges), the 42.4mm handrail acts as a robust top rail.
The stainless steel tube protects the fragile top edge of the glass panels, aligns the entire balustrade structure, and provides a continuous, comfortable grip for users. This application is highly popular for modern balconies, raised decking, and mezzanine floors, offering unobstructed views without compromising on safety.

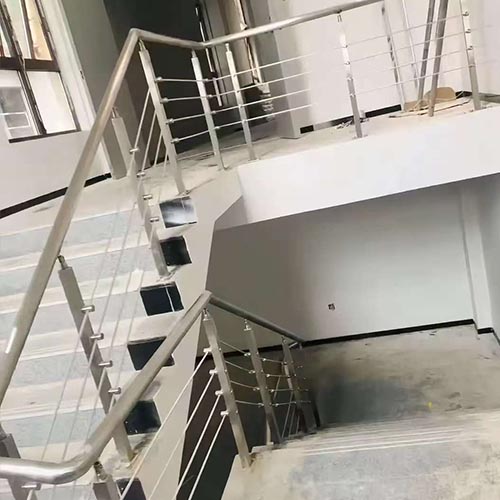

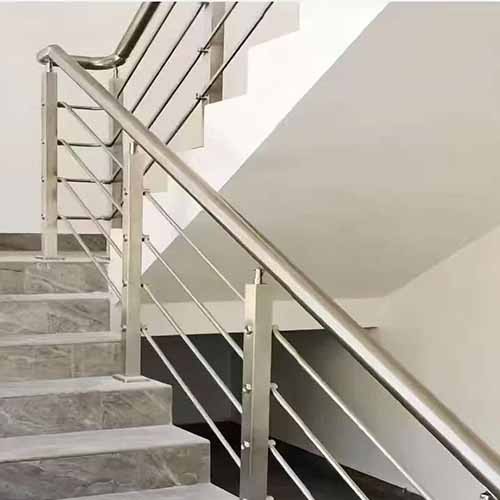

Application B: Modern Staircases with Wire Rope & Rod Infills
As showcased in contemporary interior design trends, our stainless steel tubing is the perfect structural frame for open-concept staircases. By using our thick-walled (2.0mm) tubes as the main handrail and vertical newel posts, installers can drill perfectly aligned holes to thread horizontal stainless steel wire ropes or solid cross-bars.
The ±0.02mm roundness tolerance and superior straightness ensure that the stair posts remain perfectly plumb, even under the high tension required to pull wire rope taut. This creates a stunning, industrial-chic aesthetic that allows light to flow freely through multi-level residential or commercial buildings.

6. The Revolutionary Fast-Fit Installation Technology
Historically, assembling a stainless steel handrail required expensive TIG welding, specialized hot-works permits, grinding, and repolishing on-site. We have eliminated these hurdles with our Fast-Fit Installation System.

How Fast-Fit Transforms Installation:
Our handrail system utilizes Fast-Fit, a cutting-edge, weld-free system developed to make installation drastically easier, faster, and more secure.
When connecting two lengths of tube, or attaching an elbow joint, the Fast-Fit rubber sleeve mechanism comes into play. The specially designed sleeve slides snugly into the 42.4mm / 2.0mm tube. This sleeve automatically perfectly aligns the fitting with the tube, eliminating stepping or misaligned joints.

Once combined with our specialized structural stainless steel adhesive (glue), the fitting is secured. The internal rubber sleeve holds the components firmly in place while the glue cures. The result? A joint that remains rock-solid, will not vibrate loose over time, and requires zero welding, polishing, or specialized labor. It is the ultimate solution for quick, clean, and professional installations.

7. Uncompromising Safety: BS 6180 Compliance & Load Testing
When constructing a barrier that protects people from falls, aesthetics must never supersede safety. Building regulations and structural integrity are our highest priorities.

Our glass balustrade with handrail system complies fully with BS 6180 ‘Barriers in and about buildings’. To guarantee this, our systems have been subjected to rigorous third-party load testing.

Load Test Results: Our system has been successfully load-tested to withstand 0.74 kN/m (kilonewtons per metre) of horizontal force, when installed with posts at 1.13m centres.
Why Load Testing is Crucial: Load testing is a mandatory building regulation requirement. A rating of 0.74 kN/m means the handrail can safely withstand the pressure of a crowd leaning heavily against it, or the impact of high wind loads. This is particularly critical when the handrail system acts as a protective barrier from a fall of over 600mm. By choosing our tested tubing, architects and builders can easily satisfy local building control officers and ensure total peace of mind. (Test data and certification are available for download upon request).
8. Care and Maintenance for Long-Lasting Brilliance
Stainless steel is highly corrosion-resistant, but it is not completely maintenance-free. To preserve the pristine appearance of your handrail tube for decades, follow these simple maintenance guidelines:

Routine Cleaning: Wipe down the handrail regularly using warm water, a mild pH-neutral detergent, and a soft microfiber cloth. Always wipe in the direction of the grain if you have a brushed/satin finish.
Avoid Contamination: Never use carbon steel brushes, steel wool, or abrasive scouring pads on stainless steel, as these will embed iron particles into the surface, leading to localized rust spots. Avoid harsh chemicals containing chlorides, bleach, or muriatic acid.

Coastal Environment Care: If your Grade 316 handrail is installed within 5 miles of the ocean, airborne sea salt can accumulate on the surface. We recommend washing the handrails down with fresh water every 3-4 weeks to remove salt deposits and preserve the passive chromium oxide layer that protects the steel.

9. Frequently Asked Questions (FAQs)
To help you make an informed purchasing decision, we have compiled the most common questions from our B2B and retail customers regarding our stainless steel handrail tubes.

Q1: What is the difference between Grade 304 and Grade 316 stainless steel?
Answer: The main difference lies in the chemical composition. Grade 316 contains 2-3% molybdenum, which drastically enhances its resistance to corrosion, particularly against chlorides (salt) and industrial solvents. Grade 304 is excellent for indoors, but Grade 316 is mandatory for outdoor, coastal, and marine environments.

Q2: Can I cut the handrail tubes on-site?
Answer: Yes. While we offer tubes in standard lengths up to 6 metres, they can be easily cut to exact measurements on-site. We highly recommend using a high-quality angle grinder fitted with a 1mm cutting disc specifically rated "Inox" (for stainless steel) to prevent heat discoloration and carbon contamination.

Q3: Is a 42.4mm diameter comfortable for a staircase handrail?
Answer: Absolutely. 42.4mm (approx. 1.67 inches) is the global architectural standard for handrails. It complies with the ergonomic requirements of most building codes, ensuring a secure, comfortable power grip for both adults and children, making it ideal for both residential stairs and commercial disability ramps.

Q4: Do I need to weld the handrail to connect corners?
Answer: Not at all. By utilizing our Fast-Fit system and our range of flush-fitting elbows, connectors, and wall flanges, you can assemble the entire system using structural adhesive. This weld-free process saves massive amounts of time and eliminates the need to polish weld burns.

Q5: Can I order custom tubing sizes not listed on the website?
Answer: Yes! As a direct manufacturer, our factory can produce stainless steel tubing with outer diameters ranging from 6mm to 1000mm, and thicknesses from 0.3mm to 8.0mm. Please contact our B2B sales team for custom dimensions, bulk orders, and specialized surface finishes.

Q6: Why is the wall thickness (2.0mm) important?
Answer: While 1.0mm or 1.2mm tubes are cheaper, they lack the structural rigidity required for safety barriers. A 2.0mm wall thickness ensures that the tube will not dent upon impact, provides enough material depth to securely hold tapped screws or rivets, and guarantees the system passes the strict 0.74 kN load tests.

10. Conclusion: Elevate Your Project with Unmatched Quality
The structural integrity and visual appeal of your staircase or glass balcony rely entirely on the quality of its components. By choosing our Premium Stainless Steel Handrail Tubes, you are investing in factory-direct precision, unmatched metallurgical quality, and the revolutionary ease of the Fast-Fit installation system.

From the strict ±0.02mm roundness tolerances to the superior rust resistance of our Grade 316 steel, every detail has been optimized for architectural excellence. Compliant with BS 6180 safety standards and ready to transform any space, our handrails are the definitive choice for industry professionals and discerning homeowners alike.

Build with Confidence. Build with Precision. Contact us today to discuss your project requirements, request a custom quote for large-scale B2B orders, or browse our standard lengths to start your installation tomorrow.
