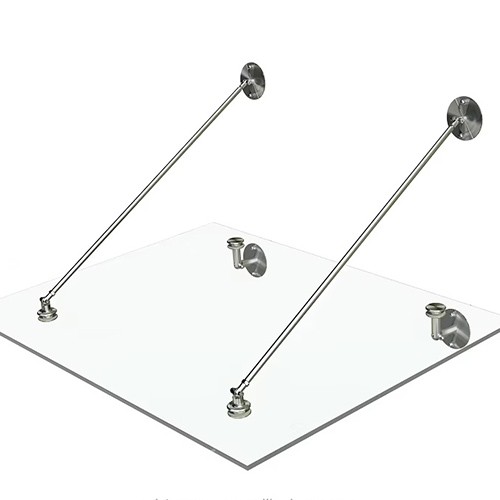

14mm Stainless Steel Tension Rod for Glass Canopy | Wall Support Rod

This 14mm stainless steel tension rod is designed for structural support in glass canopies, entrance overhangs, and facade systems. With a load capacity of up to 150kg, it is both durable and aesthetically suitable for outdoor architectural applications.

Features & Specifications

• Diameter: 14mm ± 0.2mm, ensuring high stiffness and tensile resistance

• Material Options: 304 or 316 stainless steel, ideal for outdoor and coastal conditions

• Surface Finish: Available in satin (brushed) or mirror-polished finish

• Tensile Strength: ≥ 500 MPa

• Hardness: ≥ 200HV

• Temperature Resistance: –40°C to +150°C

• Standard Lengths: 200mm – 2000mm, customizable on request

• Connection Options: Compatible with anchor bolts, rod ends, ball joints, and canopy spider fittings

•

•

• Applications

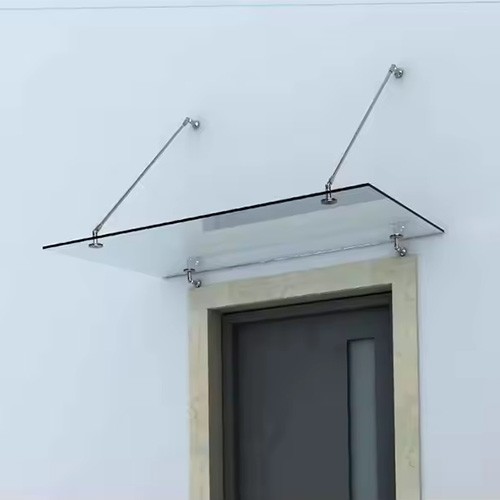

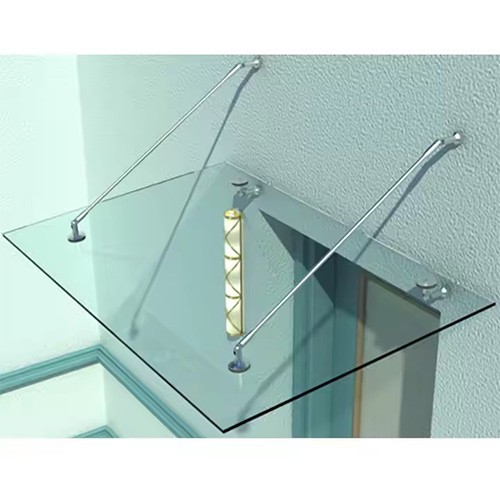

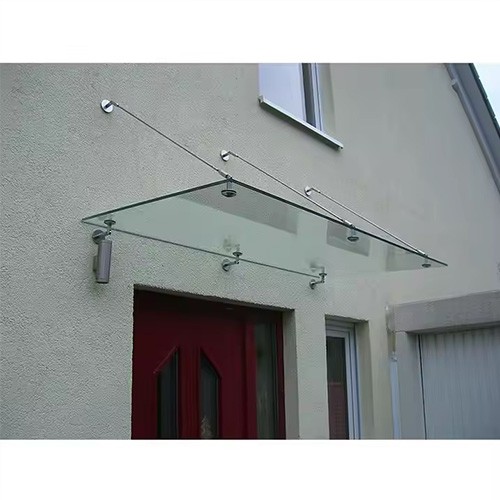

  Ideal for entry door glass canopy systems, structural facade supports, outdoor rain shelters, and frameless glass roof brackets. This tension rod provides reliable anchoring for glass panels or steel beams, transferring loads safely to wall brackets or columns.

  Installation Notes
  Ensure aligned installation with embedded parts or wall plates. After installation, tighten and secure both ends to maintain even tension. Periodic inspections are recommended for safety.

  Usage Recommendations

  • Not intended for climbing or load-bearing beyond structural support

  • For marine or corrosive environments, 316 stainless steel is strongly recommended

  • Install with appropriate wall anchors and follow architectural safety codes

  OEM & Customization
  We accept custom length, threading, finish, and connection accessories. OEM and ODM services are welcomed for commercial projects.
