Telescopic Shower Support Bar 25mm Stainless Steel 304 Flat Head & Angled Head Wall to Glass Fixed Support Bar

Telescopic Shower Support Bar 25mm 304 Stainless Steel Flat Head & Angled Head for Fixed Glass Panel

1. Technical Specifications

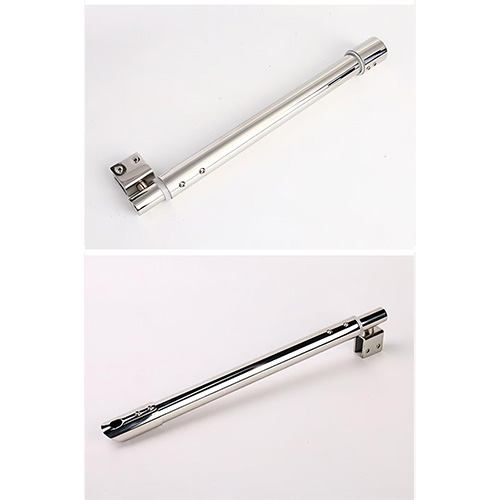

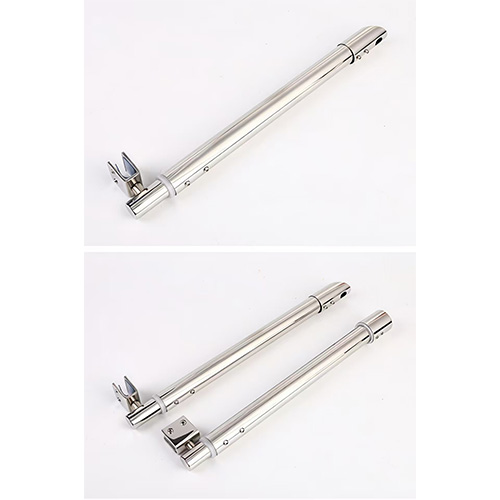

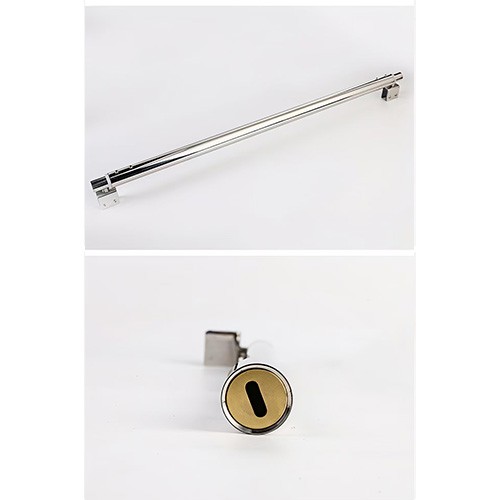

The YD‑901 telescopic shower support bar is manufactured from 25 mm diameter SUS304 stainless steel tubing (18% Cr + 8% Ni), with two end configurations: Flat Head (wall‑to‑glass vertical block) and Angled Head (compensating misalignment). This support bar is widely adopted to stabilize fixed glass panels in frameless or semi‑frameless shower enclosures.

Parameter Details
Name Telescopic Support Bar
Material SUS304 Stainless Steel
Tube Diameter 25 mm

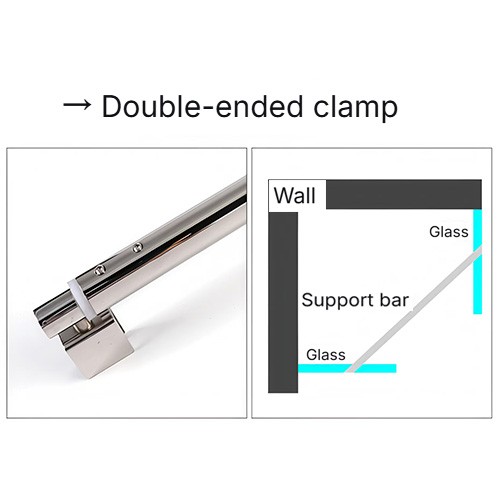

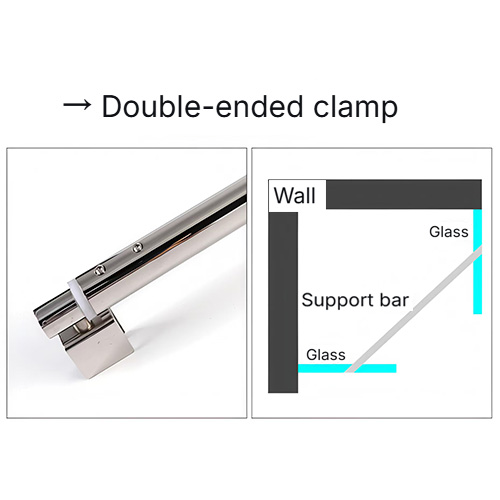

Available Configurations Flat Head + Angled Head / Flat Head + Flat Head (custom)
Length Ranges 300–500 mm / 400–600 mm / 600–800 mm / 800–1000 mm
Finish Bright Polished / Brushed (custom matt black, PVD on request)
Load Capacity ≥147 N per rod (wall‑mounted into solid structure)
Glass Thickness Compatibility 6 mm / 8 mm / 10 mm / 12 mm
Installation Wall bracket + glass clamp (no glass drilling required)

Warranty 3 years (structural integrity + surface corrosion resistance)

2. Advantages vs. Standard Aluminum/Zinc Alloy Support Rods
Comparison Dimension Telescopic Shower Support Bar (304 Stainless Steel) Ordinary Aluminium Support Bar Zinc Alloy Rod
Corrosion Resistance Excellent (self‑healing Cr oxide layer) Medium (oxidation under humidity) Poor (plating damage leads to rapid corrosion)
Tensile Strength & Fatigue High, stable during repeated door movement Medium‑low, may cause micro‑bending Brittle, impact‑sensitive
Adjustability / Span Range Telescopic structure, wide coverage Fixed / very limited span Non‑telescopic
Service Life >10 years 3–5 years 2–3 years
Aesthetics Consistency Flat & Angled heads blend with modern frameless                                         design Limited finishes, visible “industrial” look Plating degrades over time

System Compatibility Seamless match with spider routel, shower door pivot, Colour mismatch Unreliable after aging

shower door roller / sliding roller and shower door hinge

3. Installation Overview — Flat Head vs. Angled Head

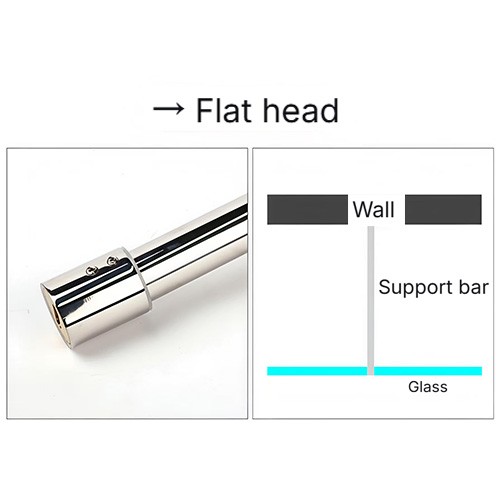

Flat Head Installation

Use when the glass panel is nearly parallel to the wall and the fixing point is vertically aligned.

Drill the wall, fix the flat base with stainless steel expansion screws → slide the telescopic shower support bar into the base clamp the glass edge (rubber cushion included).

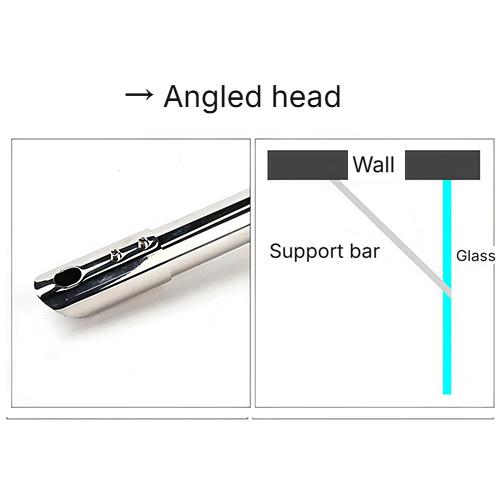

Angled Head Installation

Use when the glass‑to‑wall angle exceeds 90°, or where the wall alignment presents a deviation (15°–45° offset). The angled head naturally compensates the gap, preventing stress concentration on the glass panel.

Critical requirement: whether flat head or angled head, the wall bracket must anchor into solid masonry or a pre‑embedded metal structure. Otherwise, the telescopic support bar cannot deliver its rated load capacity. See also heavy‑duty shower door hinge reinforcement guidelines.

4. Real‑World Case Studies — Kazakhstan
4.1 Rixos President Hotel Astana — Renovation Project, Q2 2025
Astana, Kazakhstan. 156 suites required glass reinforcement without full wall‑slotting.
Feedback from Aidos B., Engineering Manager:
“After three weeks in high‑humidity winter bathrooms, ordinary bars showed surface pitting. The YD‑901 304 stainless steel telescopic bar remained perfectly stable. The availability of both flat and angled head styles allowed us to match different glass‑wall angles without rework. We ended up combining them with spider routel and new shower door pivot assemblies on executive floors while keeping the finish consistent with the shower door hinge.”

4.2 Marrone Boutique Apartments — Almaty (42 residential units)
Medeu district, Almaty. Developer wanted unobtrusive structural reinforcement for 6 mm fixed glass panels.
Feedback from facility manager E. Imangaliev:
“We installed a mix of flat and angled head support bars for 25 units. The attachment to the wall proved reliable, and the bar’s compatibility with the sliding rollers simplified scheduled checks. After two heating seasons, the brushed finish remains stain‑free and free of white oxidation.”

4.3 Grand Aisha Boutique Hotel — Shymkent (Custom extension project)
Custom‑length telescopic support bars for VIP shower enclosures with non‑parallel glass‑wall positions.
Project feedback:
“Most suppliers could not provide the extended length we needed. YD‑901 was tailored to our exact spans. The first suite installation alone reduced structural reinforcement man‑hours by 26%.”

5. Frequently Asked Questions (FAQ)
Q1: Can this telescopic shower support bar work with 10 mm tempered glass?

Yes. The included glass clamps fit 6–12 mm thickness, and silicone slip pads come standard.

Q2: Flat Head or Angled Head — which should I choose?
If glass‑to‑wall vertical alignment is good → choose Flat Head for simpler, stronger vertical load transfer.

If glass‑to‑wall alignment carries an angle >90° or lateral offset → choose Angled Head to prevent edge stress on the glass.

Q3: Do you offer 316L stainless steel for coastal high‑salt environments?
Yes, 316L upgrade is available upon request (Mo addition provides superior chloride resistance). Contact us for custom orders.

Q4: What are the actual min/max installation spans for the telescopic bar?
Minimum closed span: approx Lmin ±5 mm
Maximum effective span: Lmax –10 mm (leaving safe over‑extension margin)
Recommend sending us the exact D‑distance from wall to glass edge for accurate selection.

Q5: Can you provide a manufacturer certificate (Mill Certificate)?

Yes. Every batch order includes a manufacturer test certificate according to EN 10204 / ISO 10474. Third‑party inspection is welcome.

Q6: Does the telescopic bar match spider routel and shower door hinge systems?
Yes. To maintain a consistent anti‑corrosion visual system, the bar is designed to be compatible with spider routel shower hardware assemblies and modern shower door hinge mounting dimensions.

Request a Quote Today
Ready to upgrade your shower enclosure projects with premium YD-901 telescopic support bars? Contact our engineering team today for bulk pricing, custom length inquiries, and free technical drawings.
