Ultimate Dual-Action Freedom: 180° Inner & Outer Opening Shower Door Hinge (Matte Black / Gunmetal)
Ultimate Dual-Action Freedom: 180° Inner & Outer Opening Shower Door Hinge (Matte Black / Gunmetal)
Break the boundaries of your bathroom! The JC-A09/A10 heavy-duty 304 stainless steel shower hinge allows 180° bi-directional swinging (inward & outward). Designed for 8-12mm glass with dual 25° auto-centering. Available in luxury Matte Black and Gunmetal finishes.
The JC-A09 / JC-A10 180-Degree Dual-Action Shower Door Hinge
In the realm of high-end custom bathrooms and modern luxury hotel designs, "boundlessness" and "absolute freedom" are the ultimate goals pursued by architects. When a traditional one-way swinging door (only opening outwards or inwards) fails to meet the demands of complex movement flows or the need for ultimate convenience, a hardware component that brings a revolutionary experience in both mechanical engineering and industrial design is required.
We are incredibly proud to introduce the JC-A09 (Matte Black) and JC-A10 (Gunmetal) Series — 180-Degree Inner and Outer Opening (Dual-Action) Shower Glass Hinges to global architects, developers, and premium homeowners. This heavy-duty, glass-to-glass hinge shatters the single-trajectory limitation of traditional doors, granting the shower enclosure unprecedented bi-directional freedom. It is the crowning touch for building luxurious, safe, and fully accessible bathroom sanctuaries.
Core Mechanical & Dimensional Specifications
Model Numbers: JC-A09 (180° inner/outer hinge - Sub-black) / JC-A10 (180° inner/outer hinge - Gun grey)
Swing Mechanism: 180-Degree Bi-directional Free Swing (The door panel can be pulled outward up to 180 degrees AND pushed inward up to 180 degrees).
Smart Auto-Centering: Features an exclusive dual-damping system. Whether swinging inward or outward, it automatically and perfectly centers to close when the door angle reaches 25° or less.
Glass Compatibility: specifically engineered to bear the immense weight of 8mm - 12mm thick heavy-duty tempered safety glass.
Base Material: High-Strength Stainless Steel (Available in standard 201# and superior, highly oxidation-resistant 304# options).
Surface Finishes: Sub-black (Matte Black) / Gun grey (Gunmetal) / Brushed / Mirrored — Full support for customized color matching for large architectural projects.
1. Dual-Action Swinging: Unmatched Convenience and Crucial Safety
This is the absolute soul of this hinge. Standard 180-degree hinges typically only allow opening in one direction. However, the JC-A09/A10 utilizes a highly complex internal bi-directional pivot mechanism, empowering the user to freely choose to push the door in or pull it out based on real-time spatial needs.
Ultimate Daily Convenience: Before showering, you can pull the door outward to keep the interior spacious. After showering, to prevent water from dripping onto the dry bathroom floor, you can simply push the door inward as you exit. You control the flow of movement.
Vital Safety Feature (ADA & Aging-in-Place Design): In an aging society or within luxury wellness hotels, a dual-swing door is a lifesaver. If a person slips and falls inside the shower, fainting against an inward-swinging door, it becomes nearly impossible for rescuers to open it from the outside without shattering the glass. With a dual-action hinged door, emergency responders can effortlessly pull the door outward, gaining precious golden minutes for rescue.
3. Heavy-Duty Architectural Aesthetics: Bearing Weight, Exuding Luxury
Unlike the slender, lightweight hinges flooding the market, the JC-A09 and A10 feature exceptionally bold, rectangular, and wide-bodied lines (117mm total width, 90mm height). This expansive metal footprint doesn't just deliver a visual "architectural gravitas" and a strong modern minimalist vibe; mechanically, it is designed to provide unassailable load-bearing strength.
The massive clamping plates, combined with a 70mm x 60mm four-point screw anchoring matrix, bite down onto 12mm thick tempered glass with incredible force. The internal high-density silicone or specialized rubber gaskets provide massive friction while protecting the glass from metal scratches, completely solving the industry-wide problem of wide, heavy glass doors sagging over time.
4. Premium Surface Finishes: A Visual Revolution in Matte Black & Gunmetal
We have poured immense effort into polishing and coating these surfaces, elevating them from mere industrial parts to art pieces within the bathroom space.
JC-A09 Sub-black (Matte Black): A deep, profound matte black, as quiet as the night sky. Achieved through high-temperature baking paint or advanced PVD (Physical Vapor Deposition), the surface is non-reflective, fingerprint-resistant, and highly resistant to chemical cleansers. It is the perfect partner for Industrial Chic and ultra-modern black-and-white minimalist bathrooms.
A top-tier dual-action hinge requires perfect peripheral hardware to support a safe and beautiful shower enclosure. As a comprehensive hardware manufacturer, we provide a complete suite of solutions within our Stainless Steel Hardware Product Line:
A Rock-Solid Foundation: A 180-degree swinging heavy door generates centrifugal force when moving. Therefore, the stationary glass panel supporting the hinges must be absolutely rigid. We strongly advise using heavy-duty Fixing Clamp / Glass Clamp components, or versatile wall-to-floor Bathroom&Shower Glass Clamp / Fixed Clamp brackets, to firmly anchor the fixed panel to the wall and threshold, creating an unshakeable load-bearing pillar.
Visual and Tactile Harmony: To match the bold, rectangular aesthetic of the JC-A09/A10, you can equip your heavy bi-fold door with a similarly modern, substantial, square-profiled Shower Door Handle / Pull. Available in perfectly matching Matte Black or Gunmetal, it completes the unified designer look.
Alternative Door Control Solutions: While dual-action hinges offer ultimate swinging freedom, if your bathroom has severe depth limitations that cannot accommodate a door's swinging radius, you can explore our incredibly space-saving, silent, and smooth Shower Door Roller / Sliding Roller systems.
In the shower environment—filled with steam, extreme temperature shifts, and constant exposure to body washes and harsh chemical cleaners—the corrosion resistance of the hardware dictates the lifespan of the entire enclosure.
We heavily promote our Premium 304# Stainless Steel variant. It contains high proportions of Chromium (Cr) and Nickel (Ni). These elements form a dense, microscopic Chromium-rich oxidation layer (passive film) on the metal's surface. Even if scratched, this film rapidly self-heals in the presence of oxygen. This is the core mechanism that allows 304 stainless steel to withstand the hostile, wet bathroom environment for decades, ensuring the hinge will never rust, snap, or degrade after tens of thousands of swinging cycles. It is a long-term value investment that cheap zinc alloys or low-grade steel simply cannot match.
Professional Advice for Contractors and Installers
Precision Glass Fabrication: The JC-A09/A10 utilizes a glass-to-glass mounting system. Both the active door and the stationary panel require precise cut-outs and holes. You must strictly follow our provided 117x90mm and 70x60mm hole-spacing CNC templates. ALL glass cutting, drilling, and notching MUST be completed BEFORE the physical tempering process.
Clearance Allowances: Because the door swings a full 180 degrees in both directions, when calculating glass dimensions, you must leave adequate clearance gaps (usually sealed with vinyl sweeps/wipes) between the active door and walls, adjacent glass, and the floor. This prevents the glass from violently striking hard surfaces at the extremes of its swing.
In the realm of high-end custom bathrooms and modern luxury hotel designs, "boundlessness" and "absolute freedom" are the ultimate goals pursued by architects. When a traditional one-way swinging door (only opening outwards or inwards) fails to meet the demands of complex movement flows or the need for ultimate convenience, a hardware component that brings a revolutionary experience in both mechanical engineering and industrial design is required.
We are incredibly proud to introduce the JC-A09 (Matte Black) and JC-A10 (Gunmetal) Series — 180-Degree Inner and Outer Opening (Dual-Action) Shower Glass Hinges to global architects, developers, and premium homeowners. This heavy-duty, glass-to-glass hinge shatters the single-trajectory limitation of traditional doors, granting the shower enclosure unprecedented bi-directional freedom. It is the crowning touch for building luxurious, safe, and fully accessible bathroom sanctuaries.
Core Mechanical & Dimensional Specifications
Model Numbers: JC-A09 (180° inner/outer hinge - Sub-black) / JC-A10 (180° inner/outer hinge - Gun grey)
Swing Mechanism: 180-Degree Bi-directional Free Swing (The door panel can be pulled outward up to 180 degrees AND pushed inward up to 180 degrees).
Smart Auto-Centering: Features an exclusive dual-damping system. Whether swinging inward or outward, it automatically and perfectly centers to close when the door angle reaches 25° or less.
Glass Compatibility: specifically engineered to bear the immense weight of 8mm - 12mm thick heavy-duty tempered safety glass.
Base Material: High-Strength Stainless Steel (Available in standard 201# and superior, highly oxidation-resistant 304# options).
Surface Finishes: Sub-black (Matte Black) / Gun grey (Gunmetal) / Brushed / Mirrored — Full support for customized color matching for large architectural projects.

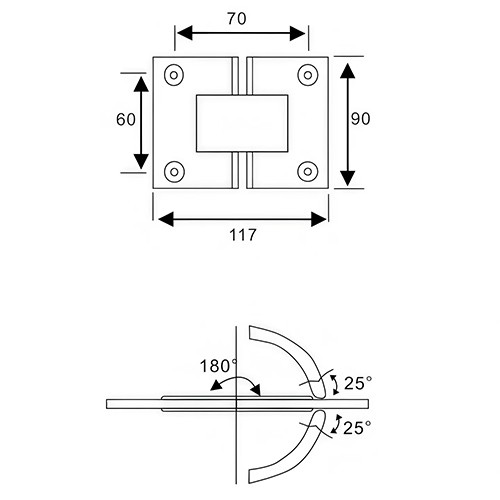

Substantial Dimensions: A grand overall width of 117mm and a height of 90mm. The glass cut-out hole spacing is a robust 70mm x 60mm, projecting a commanding presence of heavy-duty hardware.
1. Dual-Action Swinging: Unmatched Convenience and Crucial Safety
This is the absolute soul of this hinge. Standard 180-degree hinges typically only allow opening in one direction. However, the JC-A09/A10 utilizes a highly complex internal bi-directional pivot mechanism, empowering the user to freely choose to push the door in or pull it out based on real-time spatial needs.
Ultimate Daily Convenience: Before showering, you can pull the door outward to keep the interior spacious. After showering, to prevent water from dripping onto the dry bathroom floor, you can simply push the door inward as you exit. You control the flow of movement.
Vital Safety Feature (ADA & Aging-in-Place Design): In an aging society or within luxury wellness hotels, a dual-swing door is a lifesaver. If a person slips and falls inside the shower, fainting against an inward-swinging door, it becomes nearly impossible for rescuers to open it from the outside without shattering the glass. With a dual-action hinged door, emergency responders can effortlessly pull the door outward, gaining precious golden minutes for rescue.
2. Dual 25-Degree Auto-Centering: A Masterpiece of Engineering
Allowing a heavy glass door to swing freely in two directions is difficult enough; ensuring it "automatically closes and precisely centers" along both trajectories is a testament to our superior manufacturing prowess. The hinge is equipped with high-tensile, symmetrical return springs internally. Whether you push or pull the door, once you let go and the panel enters the 25-degree zone on either side of the center line, the hinge takes over. It pulls the heavy glass door smoothly, silently, and firmly to a perfect 0-degree closed position. This ensures the shower remains tightly sealed when not in use, preventing any steam or water leakage.3. Heavy-Duty Architectural Aesthetics: Bearing Weight, Exuding Luxury
Unlike the slender, lightweight hinges flooding the market, the JC-A09 and A10 feature exceptionally bold, rectangular, and wide-bodied lines (117mm total width, 90mm height). This expansive metal footprint doesn't just deliver a visual "architectural gravitas" and a strong modern minimalist vibe; mechanically, it is designed to provide unassailable load-bearing strength.
The massive clamping plates, combined with a 70mm x 60mm four-point screw anchoring matrix, bite down onto 12mm thick tempered glass with incredible force. The internal high-density silicone or specialized rubber gaskets provide massive friction while protecting the glass from metal scratches, completely solving the industry-wide problem of wide, heavy glass doors sagging over time.
4. Premium Surface Finishes: A Visual Revolution in Matte Black & Gunmetal
We have poured immense effort into polishing and coating these surfaces, elevating them from mere industrial parts to art pieces within the bathroom space.

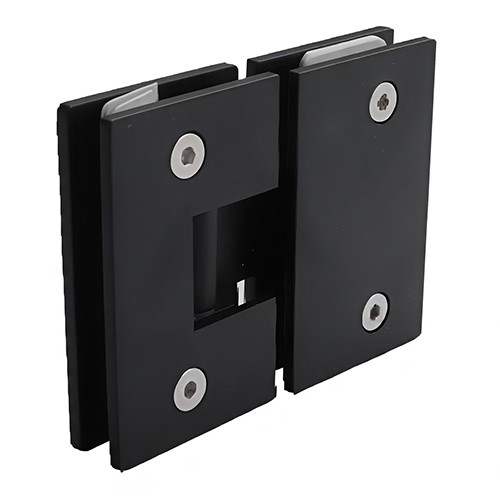

JC-A09 Sub-black (Matte Black): A deep, profound matte black, as quiet as the night sky. Achieved through high-temperature baking paint or advanced PVD (Physical Vapor Deposition), the surface is non-reflective, fingerprint-resistant, and highly resistant to chemical cleansers. It is the perfect partner for Industrial Chic and ultra-modern black-and-white minimalist bathrooms.

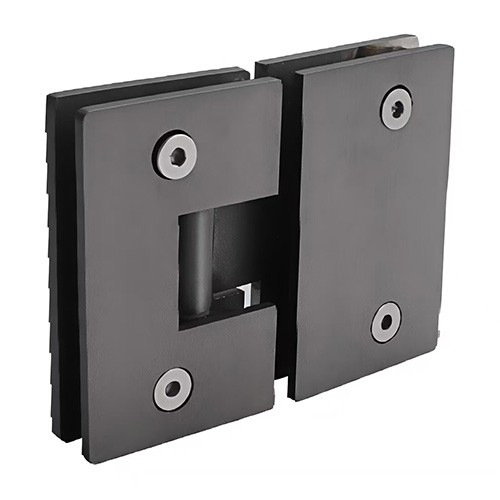

JC-A10 Gun Grey (Gunmetal): Gunmetal represents avant-garde tech-aesthetics and restrained luxury. It reflects light with a cool, metallic depth, is more dirt-concealing than silver, and feels visually lighter than stark black. Whether paired with natural marble, micro-cement, or wood-grain tiles, gunmetal hardware instantly elevates the textural hierarchy of the entire room.
A top-tier dual-action hinge requires perfect peripheral hardware to support a safe and beautiful shower enclosure. As a comprehensive hardware manufacturer, we provide a complete suite of solutions within our Stainless Steel Hardware Product Line:
A Rock-Solid Foundation: A 180-degree swinging heavy door generates centrifugal force when moving. Therefore, the stationary glass panel supporting the hinges must be absolutely rigid. We strongly advise using heavy-duty Fixing Clamp / Glass Clamp components, or versatile wall-to-floor Bathroom&Shower Glass Clamp / Fixed Clamp brackets, to firmly anchor the fixed panel to the wall and threshold, creating an unshakeable load-bearing pillar.
Visual and Tactile Harmony: To match the bold, rectangular aesthetic of the JC-A09/A10, you can equip your heavy bi-fold door with a similarly modern, substantial, square-profiled Shower Door Handle / Pull. Available in perfectly matching Matte Black or Gunmetal, it completes the unified designer look.
Alternative Door Control Solutions: While dual-action hinges offer ultimate swinging freedom, if your bathroom has severe depth limitations that cannot accommodate a door's swinging radius, you can explore our incredibly space-saving, silent, and smooth Shower Door Roller / Sliding Roller systems.
Solutions for Oversized Glass: If your architectural design calls for exceptionally wide or floor-to-ceiling ultra-heavy glass doors, side-mounted hinges might approach their physical load limits. In such extreme cases, consider utilizing top-and-bottom bearing Shower Door Pivot hinges to distribute the immense vertical weight directly into the floor and header.
In the shower environment—filled with steam, extreme temperature shifts, and constant exposure to body washes and harsh chemical cleaners—the corrosion resistance of the hardware dictates the lifespan of the entire enclosure.
We heavily promote our Premium 304# Stainless Steel variant. It contains high proportions of Chromium (Cr) and Nickel (Ni). These elements form a dense, microscopic Chromium-rich oxidation layer (passive film) on the metal's surface. Even if scratched, this film rapidly self-heals in the presence of oxygen. This is the core mechanism that allows 304 stainless steel to withstand the hostile, wet bathroom environment for decades, ensuring the hinge will never rust, snap, or degrade after tens of thousands of swinging cycles. It is a long-term value investment that cheap zinc alloys or low-grade steel simply cannot match.
Professional Advice for Contractors and Installers
Precision Glass Fabrication: The JC-A09/A10 utilizes a glass-to-glass mounting system. Both the active door and the stationary panel require precise cut-outs and holes. You must strictly follow our provided 117x90mm and 70x60mm hole-spacing CNC templates. ALL glass cutting, drilling, and notching MUST be completed BEFORE the physical tempering process.
Clearance Allowances: Because the door swings a full 180 degrees in both directions, when calculating glass dimensions, you must leave adequate clearance gaps (usually sealed with vinyl sweeps/wipes) between the active door and walls, adjacent glass, and the floor. This prevents the glass from violently striking hard surfaces at the extremes of its swing.
Torque Control: When fastening the screws, use a manual torque wrench to tighten them diagonally and alternatingly. This ensures the clamping plates apply even pressure and the anti-slip gaskets are perfectly compressed. Never use aggressive power tools to overtighten one side at a time, as this creates localized stress points that can cause the tempered glass to spontaneously shatter.
