JC-A03/A04 Square 180-Degree Glass-to-Glass Shower Hinge | Matte Black & Gun Ash | Heavy Duty Stainless Steel

Product Overview: Where Geometric Aesthetics Meet Industrial Precision

In the world of high-end bathroom design, every line counts. The JC-A03 and JC-A04 Series 180-Degree Square Shower Door Hinges redefine the standard for shower enclosure hardware with their sharp, rectangular profiles and exquisite surface finishes. Unlike traditional rounded designs, this series is tailor-made for modern Industrial Chic and Minimalist bathrooms that demand clean, decisive lines.

This hinge is not just a pivot point for your glass; it is a statement piece. Whether you choose the deep, commanding Sub-Black (Matte Black) of the JC-A03 or the sophisticated, metallic texture of the Gun Ash JC-A04, these hinges instantly elevate the visual hierarchy of any shower space.

Technical Specifications
Designed for architects, contractors, and discerning homeowners, here are the detailed specs:

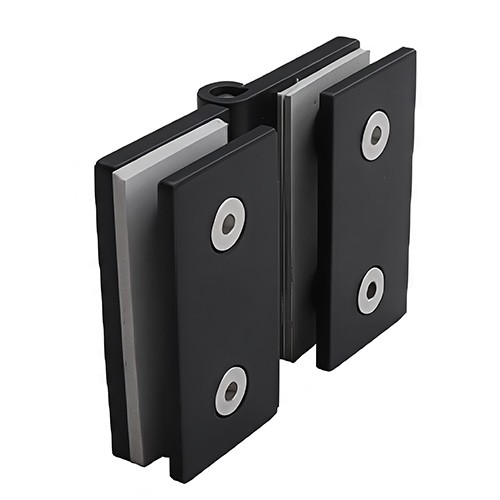

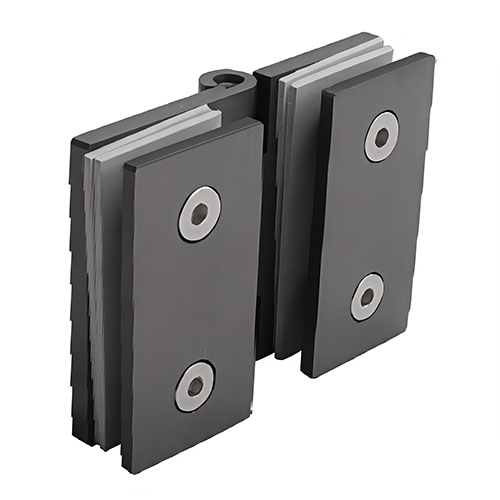

Model No: JC-A03 (Sub-Black/Matte Black) / JC-A04 (Gun Ash)
Configuration: 180-Degree Glass-to-Glass (Linear connection)
Shape: Rectangular/Square profile with beveled edges
Material: Investment Cast Stainless Steel (Available in SUS304 or SUS201)
Glass Compatibility: 8mm to 12mm Tempered Safety Glass

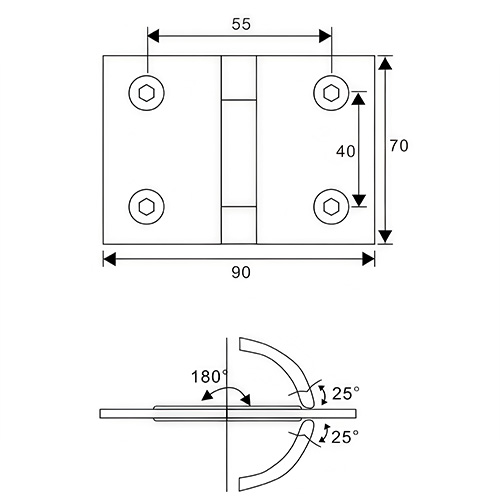

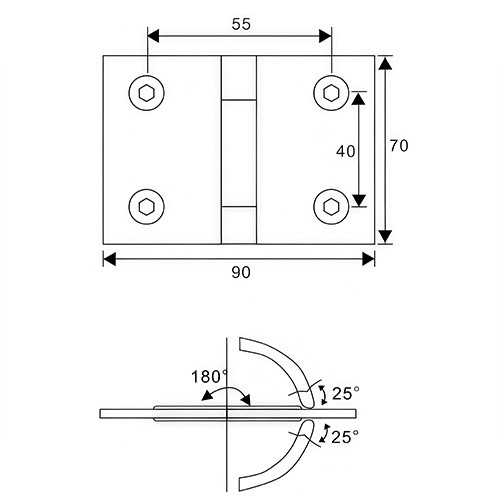

Dimensions:
Hinge Height: 70mm (Compact design for minimal visual obstruction)
Total Width (Open): 90mm
Hole Spacing: 55mm (Width) x 40mm (Height)
Surface Treatments: High-Temp Baking Paint (Black), PVD Plating (Gun Ash), Brushed, Mirror Polished.
Load Capacity: Approx. 45kg per pair (Recommended 2-3 hinges per door).

Key Features: Dual-action opening, Self-closing from 25 degrees, Silent operation.

In-Depth Analysis: Design Philosophy & Material Science
1. The Architectural Tension of Square Design
Departing from soft curves, the JC-A03/A04 utilizes a 90mm x 70mm rectangular ratio. This design language provides a sense of stability and perfectly complements square tiling grids, linear shower drains, and cubic faucet fixtures.
Matte Black (JC-A03): Black is timeless. Our finish is achieved through a specialized high-temperature baking process, creating a surface that is not only deep and uniform but also resistant to fingerprints and water spots.

Gun Ash (JC-A04): Currently the most trending finish in global interior design. Sitting comfortably between silver and black, Gun Ash (or Gun Metal) offers a unique metallic sheen that exudes understated luxury, pairing exceptionally well with marble or concrete textures.

2. Investment Casting vs. Stamping
Many budget hinges on the market use stamped sheet metal or zinc alloy die-casting, which are prone to snapping and corrosion. The JC-A03/A04 series insists on Stainless Steel Lost-Wax Investment Casting.
This means the main body of the hinge is molded as a single, solid unit with high density and no air pockets. This process grants the product immense structural strength, ensuring it won't deform or sag even when supporting heavy 12mm glass doors over years of use.

3. Intelligent Self-Closing & Silent Experience
Water containment is a primary concern for shower users. The JC-A03/A04 integrates a high-tensile spring component within its core.
25-Degree Auto-Close: When the door is brought to within an angle of approximately 25 degrees, the hinge takes over, using physical torque to gently pull the door into the closed position. This ensures a tight seal against leaks and prevents the door from swinging open due to air drafts.

Silent Nylon Bushings: Wear-resistant silent washers are added at the pivot points, ensuring every swing is smooth and noiseless, maintaining the tranquility of your spa-like bathroom.

Installation & Construction Guide
Proper installation is vital for product longevity. Please ensure your installer follows these steps:
Cutouts and Drilling: Strictly follow the CAD drawings provided for glass fabrication. Although the hinge height is 70mm, adequate tolerance should be left in the "Mouse Ear" cutout. Edges must be polished to prevent stress fractures.
The Importance of Gaskets: Included in the box are specialized high-friction gaskets. You must place these gaskets between the stainless steel plate and the glass before tightening. They serve three purposes: anti-slip, shock absorption, and surface protection.
Leveling: When installing the fixed glass panel, use a laser level to ensure verticality. For glass-to-glass installations, the gap between the two panels should be maintained at 4-6mm to accommodate magnetic seals.

Torque Control: Use an Allen key to tighten the backplate screws evenly. We recommend a "diagonal alternating" tightening pattern to distribute pressure evenly across the glass surface.

Why Choose Our Stainless Steel Hardware?
As a dedicated manufacturer showcased at StainlessSteelHardwares.com, we understand the harsh nature of bathroom environments.

Salt Spray Testing: Our 304 stainless steel products undergo 48-72 hour neutral salt spray testing, ensuring resistance to rust even in humid, high-temperature, or coastal environments.
100% Inspection: Every hinge is manually inspected before packaging to ensure a flawless finish free from scratches or pitting.

Customization: Beyond Black and Gun Ash, we support OEM/ODM color customization (e.g., Rose Gold, Brushed Gold) for specific project requirements.

Frequently Asked Questions (FAQ)
Q: Does this hinge open inwards or outwards?
A: The JC-A03/A04 is designed for 180-degree range of motion, theoretically allowing both inward and outward opening. However, the actual direction is usually dictated by the placement of your water stops and vinyl seals.

Q: Will the Gun Ash finish fade over time?
A: No. Our Gun Ash finish uses PVD (Physical Vapor Deposition) technology. This coating bonds with the stainless steel substrate at a molecular level, resulting in extreme hardness and wear resistance. It will look new for over a decade with normal use.

Q: How many hinges do I need per door?
A: For a standard 2-meter high shower door using 8-10mm glass, 2 hinges are sufficient. If using 12mm glass or if the door width exceeds 800mm, we recommend installing 3 hinges for enhanced safety and stability.
