JC-A01/A02 180-Degree Semicircle Stainless Steel Glass-to-Glass Shower Hinge (Gold/Gun Ash)
JC-A01/A02 180-Degree Semicircle Stainless Steel Glass-to-Glass Shower Hinge (Gold/Gun Ash)
Premium JC-A01/A02 Semicircle 180-degree shower hinges. Made of 201/304 Stainless Steel for 8-12mm tempered glass. Available in Gold, Gun Ash, Brushed, and Black finishes. Self-closing feature included.
Product Overview: Redefining Luxury and Functionality in Modern Bathrooms
In the realm of interior design, excellence lies in the details. The JC-A01 and JC-A02 Series 180-Degree Semicircle Shower Door Hinges are not merely connectors; they are the cornerstone of shower enclosure stability and the finishing touch of bathroom aesthetics. Engineered for homeowners and designers who refuse to compromise on quality, these hinges are the perfect match for frameless shower doors, combining smooth, rounded lines with superior mechanical performance.
Whether you choose the opulent Gold finish of the JC-A01 or the understated sophistication of the Gun Ash JC-A02, each unit undergoes precision CNC machining and rigorous surface treatment. This ensures that they remain pristine and functional even in the humid, high-stress environment of a bathroom.
Technical Specifications
Model No: JC-A01 (Gold) / JC-A02 (Gun Ash)
Opening Type: 180-Degree Dual Action (Glass-to-Glass)
Main Material: Premium Stainless Steel (Available in SUS304 or SUS201)
Glass Compatibility: 8mm - 12mm Tempered Safety Glass

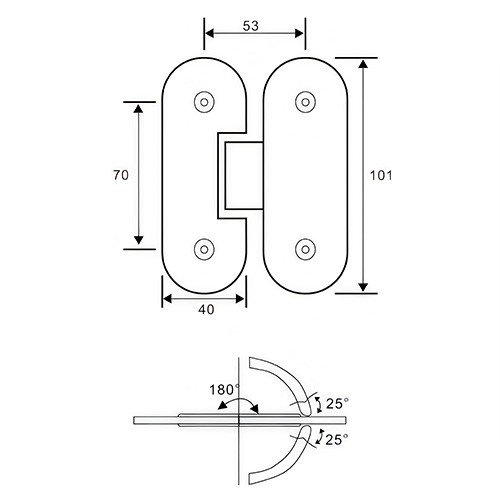

Dimensions:
Total Plate Height: 101mm
Leaf Width: 53mm
Hole Spacing (Center-to-Center): 70mm
Surface Treatments: PVD Plating, Mirror Polished, Brushed Satin, Matte Black, Customizable Colors.
Load Capacity: Approx. 45-50kg per pair (depending on installation conditions).
1. Material Science: An Unyielding Barrier Against Corrosion
Bathrooms are the most humid areas in any building, making ordinary metals prone to oxidation and rust. Our Shower Door Hinge collection is cast from high-grade stainless steel.
304 Stainless Steel Option: Enriched with Nickel and Chromium, this alloy offers exceptional corrosion resistance. It is the ideal choice for coastal regions or commercial projects where longevity is paramount.
Precision Casting: Unlike cheaper stamped hinges, our precision casting process ensures higher density and structural integrity, eliminating risks of deformation or fracture under the weight of heavy glass.
2. The Semicircle Aesthetic
The JC-A01/A02 departs from rigid, sharp-edged industrial designs, embracing a softer Semicircle profile. This oval-edged design is not only visually pleasing and modern but also enhances safety. The lack of sharp corners significantly reduces the risk of injury during accidental bumps, making it a family-friendly choice for households with children or the elderly.
3. 180-Degree Flexibility & Self-Closing Mechanism
Designed specifically for "Glass-to-Glass" configurations, this hinge allows the door to swing 180 degrees, providing maximum accessibility and efficiently utilizing bathroom space.
A standout feature is the integrated precision spring system. When the shower door is closed to within approximately 25 degrees, the hinge engages its self-closing mechanism. This ensures a tight seal against water leakage and adds a premium "soft-close" feel to the operation.
4. Exquisite Surface Treatments
We understand that hardware finish defines the tone of the bathroom.

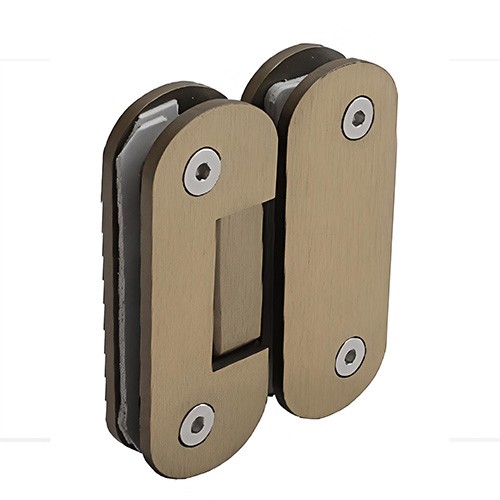

JC-A01 (Gold): Utilizes advanced PVD (Physical Vapor Deposition) technology to achieve a brilliant, durable gold finish that resists tarnishing and scratching. It exudes a sense of royalty and warmth.

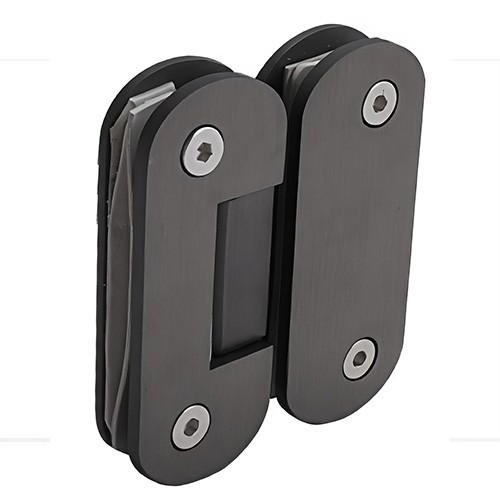

JC-A02 (Gun Ash): The Gun Ash finish offers a unique, metallic grey hue that perfectly complements industrial or minimalist design themes. It is understated yet unmistakably premium.
To ensure the longevity and optimal performance of the JC-A01/A02 hinges, please adhere to the following installation guidelines:
Glass Fabrication: Precise glass cutouts are essential. Please refer to our technical CAD drawings for exact measurements. Standard "Mickey Mouse" ears or rectangular cutouts must have chamfered edges to prevent stress cracks in the tempered glass.
Gasket Application: Included in the box are high-density gaskets. These must be placed between the metal hinge and the glass. They serve a dual purpose: preventing the glass from slipping and protecting the glass surface from metal contact.
Torque Management: When tightening the hex screws with an Allen key, apply moderate torque. Loose screws cause sagging, while overtightening can shatter the glass.
Regular Cleaning: Wipe the hinges weekly with a soft, damp cloth to remove water spots and soap scum.
Chemical Warning: Never use abrasive cleaners, scouring pads, or harsh chemicals (like acidic toilet cleaners) on the hardware. These can strip the protective PVD coating or clear coat, leading to discoloration.
Q: Will this hinge work with 10mm thick glass?
A: Absolutely. The JC-A01/A02 is engineered for a range of 8mm to 12mm. Since 10mm is the industry standard for frameless showers, it fits perfectly using the provided gaskets.
Q: What is the difference between 304 and 201 Stainless Steel?
A: Grade 304 contains more Nickel, offering superior rust resistance compared to Grade 201. For humid bathroom environments, we highly recommend the 304 Stainless Steel Series for long-term durability.
Q: Can I order these hinges with my own logo?
A: Yes, as a direct manufacturer, we offer OEM services including laser etching for logos. Contact our sales team to discuss branding options for your wholesale order.
Looking for matching accessories? Explore our range of Shower Door Handles and Glass Clamps to complete your bathroom renovation.
In the realm of interior design, excellence lies in the details. The JC-A01 and JC-A02 Series 180-Degree Semicircle Shower Door Hinges are not merely connectors; they are the cornerstone of shower enclosure stability and the finishing touch of bathroom aesthetics. Engineered for homeowners and designers who refuse to compromise on quality, these hinges are the perfect match for frameless shower doors, combining smooth, rounded lines with superior mechanical performance.
Whether you choose the opulent Gold finish of the JC-A01 or the understated sophistication of the Gun Ash JC-A02, each unit undergoes precision CNC machining and rigorous surface treatment. This ensures that they remain pristine and functional even in the humid, high-stress environment of a bathroom.
Technical Specifications
Model No: JC-A01 (Gold) / JC-A02 (Gun Ash)
Opening Type: 180-Degree Dual Action (Glass-to-Glass)
Main Material: Premium Stainless Steel (Available in SUS304 or SUS201)
Glass Compatibility: 8mm - 12mm Tempered Safety Glass
Dimensions:
Total Plate Height: 101mm
Leaf Width: 53mm
Hole Spacing (Center-to-Center): 70mm
Surface Treatments: PVD Plating, Mirror Polished, Brushed Satin, Matte Black, Customizable Colors.
Load Capacity: Approx. 45-50kg per pair (depending on installation conditions).
Key Features: Automatic self-closing at approx. 25 degrees; silent buffer mechanism.
1. Material Science: An Unyielding Barrier Against Corrosion
Bathrooms are the most humid areas in any building, making ordinary metals prone to oxidation and rust. Our Shower Door Hinge collection is cast from high-grade stainless steel.
304 Stainless Steel Option: Enriched with Nickel and Chromium, this alloy offers exceptional corrosion resistance. It is the ideal choice for coastal regions or commercial projects where longevity is paramount.
Precision Casting: Unlike cheaper stamped hinges, our precision casting process ensures higher density and structural integrity, eliminating risks of deformation or fracture under the weight of heavy glass.
2. The Semicircle Aesthetic
The JC-A01/A02 departs from rigid, sharp-edged industrial designs, embracing a softer Semicircle profile. This oval-edged design is not only visually pleasing and modern but also enhances safety. The lack of sharp corners significantly reduces the risk of injury during accidental bumps, making it a family-friendly choice for households with children or the elderly.
3. 180-Degree Flexibility & Self-Closing Mechanism
Designed specifically for "Glass-to-Glass" configurations, this hinge allows the door to swing 180 degrees, providing maximum accessibility and efficiently utilizing bathroom space.
A standout feature is the integrated precision spring system. When the shower door is closed to within approximately 25 degrees, the hinge engages its self-closing mechanism. This ensures a tight seal against water leakage and adds a premium "soft-close" feel to the operation.
4. Exquisite Surface Treatments
We understand that hardware finish defines the tone of the bathroom.
JC-A01 (Gold): Utilizes advanced PVD (Physical Vapor Deposition) technology to achieve a brilliant, durable gold finish that resists tarnishing and scratching. It exudes a sense of royalty and warmth.
JC-A02 (Gun Ash): The Gun Ash finish offers a unique, metallic grey hue that perfectly complements industrial or minimalist design themes. It is understated yet unmistakably premium.
We also offer Brushed (Satin), Mirrored (Chrome-look), and Matte Black finishes.
To ensure the longevity and optimal performance of the JC-A01/A02 hinges, please adhere to the following installation guidelines:
Glass Fabrication: Precise glass cutouts are essential. Please refer to our technical CAD drawings for exact measurements. Standard "Mickey Mouse" ears or rectangular cutouts must have chamfered edges to prevent stress cracks in the tempered glass.
Gasket Application: Included in the box are high-density gaskets. These must be placed between the metal hinge and the glass. They serve a dual purpose: preventing the glass from slipping and protecting the glass surface from metal contact.
Torque Management: When tightening the hex screws with an Allen key, apply moderate torque. Loose screws cause sagging, while overtightening can shatter the glass.
Alignment: Once hung, check the door for level and plumb. Use the internal adjustment capabilities to ensure an even gap for the Weather Stripping/Seals to function correctly.
Regular Cleaning: Wipe the hinges weekly with a soft, damp cloth to remove water spots and soap scum.
Chemical Warning: Never use abrasive cleaners, scouring pads, or harsh chemicals (like acidic toilet cleaners) on the hardware. These can strip the protective PVD coating or clear coat, leading to discoloration.
Safety Check: We recommend inspecting the screws every six months. If any looseness is detected, retighten them immediately to maintain structural integrity.
Q: Will this hinge work with 10mm thick glass?
A: Absolutely. The JC-A01/A02 is engineered for a range of 8mm to 12mm. Since 10mm is the industry standard for frameless showers, it fits perfectly using the provided gaskets.
Q: What is the difference between 304 and 201 Stainless Steel?
A: Grade 304 contains more Nickel, offering superior rust resistance compared to Grade 201. For humid bathroom environments, we highly recommend the 304 Stainless Steel Series for long-term durability.
Q: Can I order these hinges with my own logo?
A: Yes, as a direct manufacturer, we offer OEM services including laser etching for logos. Contact our sales team to discuss branding options for your wholesale order.
Looking for matching accessories? Explore our range of Shower Door Handles and Glass Clamps to complete your bathroom renovation.
