90 Degree Wall-to-Glass Bi-Swing Shower Door Hinge | JC-006 Series
Seeking the perfect corner solution for your frameless shower project? The JC-006 series 90° wall-to-glass hinge allows bi-directional swing, forged from 304 stainless steel, and available in Gunmetal, Matte Black, and Satin Gold. Fits 8-12mm glass. Contact us for wholesale pricing!
Precisely Defining Space: JC-006 Series 90° Wall-to-Glass Bi-Directional Hinge
In the architecture of frameless shower enclosures, the elegant connection between the glass door and the wall is a key indicator of hardware quality and design prowess. Unlike a 180-degree hinge that connects two glass panels, the JC-006 Series 90° Wall-to-Glass Hinge is specifically engineered to mount a shower door directly onto a structural wall, making it the core component for creating L-shaped or corner-entry shower spaces.
Its hallmark feature, the bi-directional 90-degree swing, offers users unparalleled convenience and spatial adaptability. Regardless of the bathroom's size, users can choose to push the glass door inward or outward according to their preference, significantly enhancing daily comfort and safety.

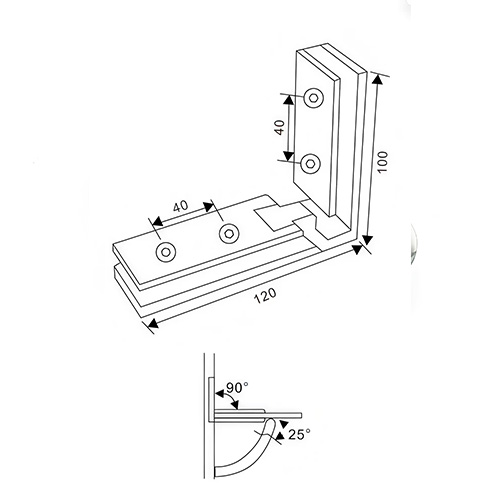

Core Technical Specifications & Finish Options
To ensure a perfect match for your project, please verify the following specifications:
Product Model Series: JC-006 (Gunmetal Grey), JC-007 (Satin Gold), JC-008 (Matte Black)
Functional Type: 90 Degree Wall-to-Glass Mounting, Bi-directional Swing
Body Material: Recommended: High-Purity 304# Stainless Steel (Superior Rust Resistance) / Optional: Cost-Effective 201# Stainless Steel
Glass Compatibility: For 8mm to 12mm thick tempered safety glass
Durability: Cycle tested for over 100,000 open/close actions for long-lasting performance

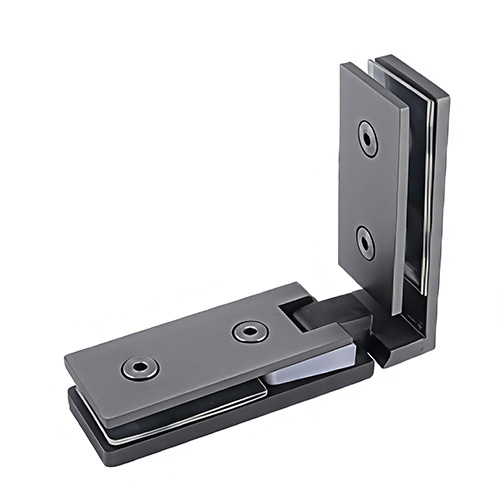

JC-006 Gunmetal Grey: Modern, understated, and tech-savvy; a top choice for contemporary designers.

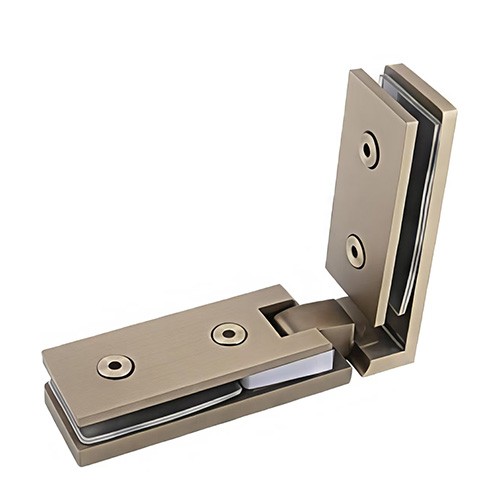

JC-007 Satin Gold: A brushed texture that is luxurious yet subtle, illuminating the entire bathroom space.

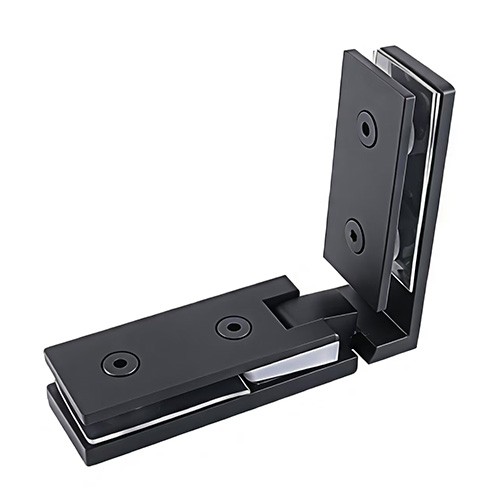

JC-008 Matte Black: An eternal classic, imparting a sense of ultimate simplicity and strength.
In-Depth Advantages Explained
Advantage 1: The Flexible Bi-Directional 90° Swing Mechanism
Traditional single-action hinges have significant limitations. The JC-006 series utilizes an advanced internal mechanism that allows the door to swing 90 degrees both inwards and outwards, with a precise auto-centering function at the 0-degree position. This design not only facilitates easy entry and exit but also provides a crucial two-way access route in case of an emergency (e.g., someone slips inside the shower).
Advantage 2: Robust Wall-Mount Design for Superior Reliability
Compared to glass-to-glass connections, mounting the hinge directly onto a solid concrete or brick wall provides far greater structural support. Our hinge base features a thickened design and multiple fixing points. When used with high-strength stainless steel screws, it distributes the weight of the glass door evenly across the wall, fundamentally preventing sagging or deformation risks associated with heavy glass.
Advantage 3: Precision Casting & Multi-Layer Finishing
Every JC-006 series hinge is precision-cast from a single piece of stainless steel, eliminating the potential fracture risks associated with welded parts. The surface treatment undergoes multiple processes, including acid washing, polishing, and multi-layer electroplating or painting. This ensures that finishes like Gunmetal Grey, Matte Black, and Satin Gold are uniform, durable, and can easily pass a 48-hour salt spray test, fearlessly facing the harsh, humid bathroom environment.
How to Choose the Right Shower Hardware for Your Project (Selection Guide)
A complete shower enclosure project may require various types of hardware. As a professional bathroom hardware manufacturer, we provide a one-stop solution:
For installing a door in a corner (wall-to-glass): This JC-006 Series 90° Wall-to-Glass Hinge is the ideal choice.
For connecting two glass panels in a straight line: You will need our JC-001 Series 180° Glass-to-Glass Hinge.
For a minimalist design with a central rotating door: Our JC-A19 Pivot Hinge Series is the perfect solution, transferring the load to the floor and header.
A well-planned hardware combination not only fulfills the design function but also enhances the overall stability and aesthetics of the project.
Installation Notes & Warranty Commitment
In the architecture of frameless shower enclosures, the elegant connection between the glass door and the wall is a key indicator of hardware quality and design prowess. Unlike a 180-degree hinge that connects two glass panels, the JC-006 Series 90° Wall-to-Glass Hinge is specifically engineered to mount a shower door directly onto a structural wall, making it the core component for creating L-shaped or corner-entry shower spaces.
Its hallmark feature, the bi-directional 90-degree swing, offers users unparalleled convenience and spatial adaptability. Regardless of the bathroom's size, users can choose to push the glass door inward or outward according to their preference, significantly enhancing daily comfort and safety.
Core Technical Specifications & Finish Options
To ensure a perfect match for your project, please verify the following specifications:
Product Model Series: JC-006 (Gunmetal Grey), JC-007 (Satin Gold), JC-008 (Matte Black)
Functional Type: 90 Degree Wall-to-Glass Mounting, Bi-directional Swing
Body Material: Recommended: High-Purity 304# Stainless Steel (Superior Rust Resistance) / Optional: Cost-Effective 201# Stainless Steel
Glass Compatibility: For 8mm to 12mm thick tempered safety glass
Durability: Cycle tested for over 100,000 open/close actions for long-lasting performance
Load Capacity: Standard load of 45kg (99 lbs) per pair, supporting glass doors up to 800mm (31.5 inches) wide
JC-006 Gunmetal Grey: Modern, understated, and tech-savvy; a top choice for contemporary designers.
JC-007 Satin Gold: A brushed texture that is luxurious yet subtle, illuminating the entire bathroom space.
JC-008 Matte Black: An eternal classic, imparting a sense of ultimate simplicity and strength.
In-Depth Advantages Explained
Advantage 1: The Flexible Bi-Directional 90° Swing Mechanism
Traditional single-action hinges have significant limitations. The JC-006 series utilizes an advanced internal mechanism that allows the door to swing 90 degrees both inwards and outwards, with a precise auto-centering function at the 0-degree position. This design not only facilitates easy entry and exit but also provides a crucial two-way access route in case of an emergency (e.g., someone slips inside the shower).
Advantage 2: Robust Wall-Mount Design for Superior Reliability
Compared to glass-to-glass connections, mounting the hinge directly onto a solid concrete or brick wall provides far greater structural support. Our hinge base features a thickened design and multiple fixing points. When used with high-strength stainless steel screws, it distributes the weight of the glass door evenly across the wall, fundamentally preventing sagging or deformation risks associated with heavy glass.
Advantage 3: Precision Casting & Multi-Layer Finishing
Every JC-006 series hinge is precision-cast from a single piece of stainless steel, eliminating the potential fracture risks associated with welded parts. The surface treatment undergoes multiple processes, including acid washing, polishing, and multi-layer electroplating or painting. This ensures that finishes like Gunmetal Grey, Matte Black, and Satin Gold are uniform, durable, and can easily pass a 48-hour salt spray test, fearlessly facing the harsh, humid bathroom environment.
How to Choose the Right Shower Hardware for Your Project (Selection Guide)
A complete shower enclosure project may require various types of hardware. As a professional bathroom hardware manufacturer, we provide a one-stop solution:
For installing a door in a corner (wall-to-glass): This JC-006 Series 90° Wall-to-Glass Hinge is the ideal choice.
For connecting two glass panels in a straight line: You will need our JC-001 Series 180° Glass-to-Glass Hinge.
For a minimalist design with a central rotating door: Our JC-A19 Pivot Hinge Series is the perfect solution, transferring the load to the floor and header.
A well-planned hardware combination not only fulfills the design function but also enhances the overall stability and aesthetics of the project.
Installation Notes & Warranty Commitment
Wall Requirements: The wall for installing this hinge must be a solid, load-bearing wall. If it is a lightweight partition (e.g., drywall/plasterboard), a solid wood or metal reinforcement must be pre-embedded; otherwise, load-bearing safety cannot be guaranteed.
Glass Fabrication: Before installation, the glass must be precisely cut and drilled according to the standard template we provide. Incorrect fabrication will lead to installation failure or stress concentration.
