Premium 90-Degree Inner Opening Wall-to-Glass Shower Hinge (Matte Black & Gunmetal)

JC-A07 / JC-A08 90-Degree Inner Opening Wall-to-Glass Hinge

In modern urban residential design, bathroom space is often at a premium. The challenge lies in creating a visually stunning, dry/wet separated frameless shower enclosure within a limited footprint, without compromising the flow of movement. The solution lies in the intelligent engineering of your hardware. We proudly present the JC-A07 (Matte Black) and JC-A08 (Gunmetal) Series — 90-Degree Inner Opening Folding Shower Hinges. This is not just a hinge connecting a wall to glass; it is a "space magician" designed specifically for compact bathrooms and refined boutique apartments.

As a direct-source manufacturer deeply rooted in the stainless steel hardware industry, we intimately understand the pain points of architects, interior designers, and end-users. This product, while ensuring maximum load-bearing safety, introduces an innovative inward-swinging mechanism, offering a smarter door control solution for your sanctuary.

Core Engineering & Technical Specifications

Model: JC-A07 (90° folding hinge - Sub-black) / JC-A08 (90° inner opening folding hinge - Gun ash)
Configuration: Wall-to-Glass. Mounts directly to a structural wall on one side, clamping the glass on the other.
Opening Action: Precision 90-degree inward opening (folding into the shower area).
Return Mechanism: Features a smart auto-closing function when the door reaches a 25° angle.
Glass Compatibility: Tailor-made for 8mm - 12mm thick high-strength tempered safety glass.
Core Material: Premium Stainless Steel (Available in cost-effective 201# and marine-grade corrosion-resistant 304# options).
Finishes: Sub-black (Matte Black) / Gun ash (Gunmetal) / Brushed / Mirrored — Custom color matching available for large architectural projects.

Dimensions: Wall mounting plate 68mm x 33mm; Glass clamping plate 70mm x 53mm; Glass hole spacing 40mm.

Why the JC-A07/A08 is the Ultimate Choice for Compact Bathrooms?
1. The Genius of 90-Degree Inward Swinging: A Win-Win for Space and Hygiene
Compared to traditional outward-swinging doors, an inner opening door possesses overwhelming advantages in smaller bathroom layouts.
Firstly, it demands zero external clearance. When you open the shower door, the glass panel folds inward toward the shower base. It will never clash with toilets, vanities, or towel racks, completely resolving door-interference issues in narrow aisles.
Secondly, it is the ultimate anti-drip design. After a shower, the inner surface of the glass is covered in water droplets. With an outward-swinging door, these droplets inevitably drip onto your dry bathroom floor. However, with the inward-swinging design of the JC-A07/A08, residual water drops simply fall directly back onto the shower tray or drain floor, achieving true "dry and wet separation."

2. The Asymmetrical Beauty of Wall-to-Glass Mechanics

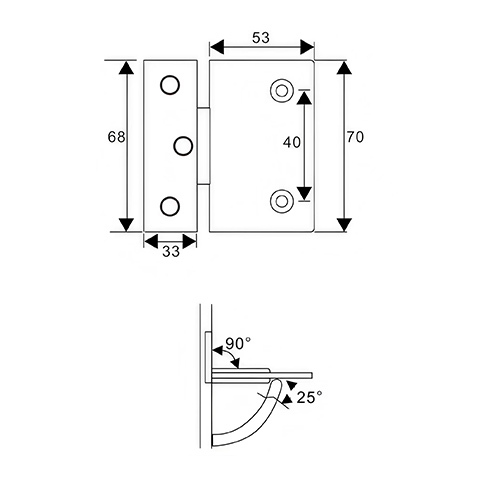

Look closely at the dimensional drawing (the asymmetrical design of 68x33mm vs. 70x53mm). This is the result of rigorous mechanical calculations. The wall-side features a compact yet incredibly thick metal plate designed to be deeply anchored into brick or concrete with countersunk screws, providing unshakeable grip. The glass-clamping side is slightly widened to maximize the contact area with the 8-12mm heavy tempered glass. Paired with high-friction inner gaskets, this perfectly distributes the sheer stress of the glass weight, entirely eliminating the risk of door sagging over time.

To further enhance the structural rigidity of the entire shower enclosure, contractors often pair these wall-to-glass hinges with our Fixing Clamp / Glass Clamp on the stationary glass panels, or utilize a Bathroom&Shower Glass Clamp / Fixed Clamp to firmly anchor fixed panels to the floor and ceiling, creating an indestructible glass framework.

3. The 25-Degree Auto-Closing Function: Breathing Life into Metal
True luxury is found in the meticulous details. This hinge incorporates an industrial-grade, high-resilience return spring. When you finish bathing and gently pull the door towards you, once the angle reaches 25 degrees or less, the hinge automatically takes over. Utilizing mechanical dampening, it pulls the door tightly, smoothly, and silently shut. This not only enhances daily convenience but ensures the magnetic or vinyl seals compress perfectly, locking in the warmth and steam.

4. Leading Industrial Aesthetics: Matte Black & Gunmetal
Bathroom hardware is no longer just functional; it is a visual focal point that dictates the room's character.

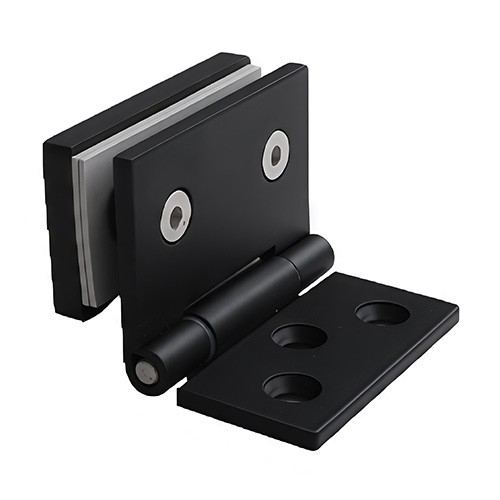

    JC-A07 Sub-black (Matte Black): Utilizing an advanced eco-friendly baking paint or electroplating process, the surface boasts a highly tactile, micro-matte finish. It is grounded and sophisticated, serving as the soul of minimalist or dark-industrial bathroom designs. Pairing this with a matching Shower Door Handle / Pull instantly sharpens the architectural lines of the space.

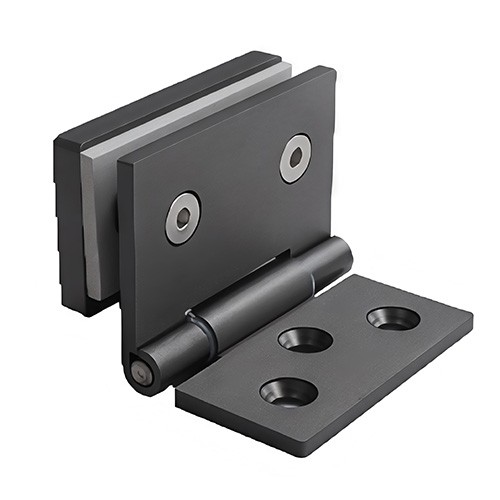

    JC-A08 Gun Ash (Gunmetal): The perfect balance between stark black and bright silver. Gunmetal carries a sleek, brushed metallic depth that is incredibly trendy. It pairs flawlessly with modern grey micro-cement walls or marble tiles, projecting an understated, quiet luxury.

5. Fearless in High Humidity: The Reliability of Stainless Steel
We recognize that the bathroom is the most humid environment in any home, subject to daily exposure to steam and chemical cleansers. Therefore, we highly recommend the 304# Stainless Steel variant. Its exceptional oxidation and corrosion resistance ensure that even after years of relentless moisture assault, the hinge will not rust, peel, or bind. For hotel projects or coastal properties, 304 stainless is a permanent, worry-free investment.

Build Your Complete Bathroom Hardware Ecosystem
On our platform, you will find much more than just premium wall-to-glass hinges. We offer a comprehensive, one-stop procurement solution for glass hardware.
    If your project involves exceptionally wide or heavy non-standard glass doors, consider replacing side-mounted hinges with top-and-bottom bearing Shower Door Pivot hinges for superior vertical load support.

    If your bathroom layout favors sliding functionality over swinging doors, we also manufacture incredibly smooth and silent Shower Door Roller / Sliding Roller systems.

Installation Guide for Contractors
    Solid Wall Verification: The fundamental prerequisite for installing a wall-to-glass hinge is confirming the wall structure. You must ensure the mounting points are on solid brick or concrete using heavy-duty expansion anchors. Drywall or hollow stud walls cannot safely bear the dynamic pulling force of a swinging heavy glass door.
    Precise Glass Fabrication: Please provide our precise dimensional drawings (40mm hole spacing) to your professional glass fabricator. All drilling and notch cutting must be completed BEFORE the glass undergoes the physical tempering process. It is strictly prohibited to cut or drill tempered glass.
    Alignment and Testing: After installation, repeatedly test the 25-degree auto-closing function. Ensure that during the free-swinging closure, the edge of the glass door does not violently strike the adjacent wall or the shower threshold.

Choosing the JC-A07 / JC-A08 means maximizing functionality and aesthetic pleasure within a limited space. Contact our sales team today for detailed material quotes, bulk pricing, and custom engineering services.
