JC-063: A Synthesis of Strength and Ingenuity in a Heavy-Duty 180° Glass-to-Glass Hinge
When a design demands the utmost in linear purity and spatial continuity, every connection point must be a masterpiece of thoughtful engineering. The JC-063 180-degree glass-to-glass hinge was forged for this exact purpose. It is more than a robust pivot capable of supporting heavy glass doors; it is a piece of engineering artistry embodying a dual-face design wisdom, created to provide both structural integrity and aesthetic perfection for your in-line frameless shower and glass partition projects.
The Secret of the Dual-Face Design: One Side Grace, One Side Power
The first thing you'll notice about the JC-063 is its distinctive two-sided appearance. These are not two different models, but the meticulously designed front and back faces of a single, superior product, each with its own functional mission.

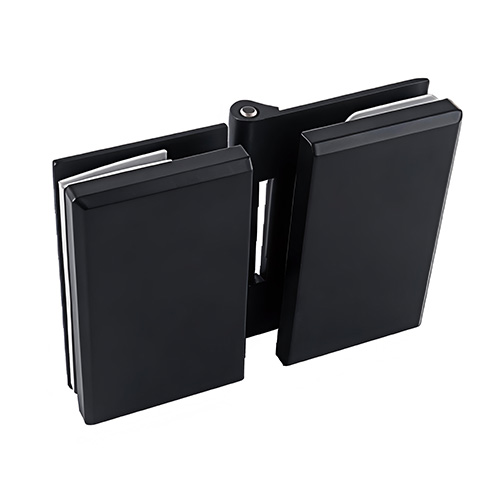

The Smooth, Aesthetic Face: This side presents a flawless, uninterrupted metal surface with clean, crisp lines. In a typical installation, this face is oriented towards the exterior of the shower or the primary line of sight. By concealing all fixing screws, it offers a visual of ultimate simplicity and minimalism, quietly embodying the "less is more" design philosophy.

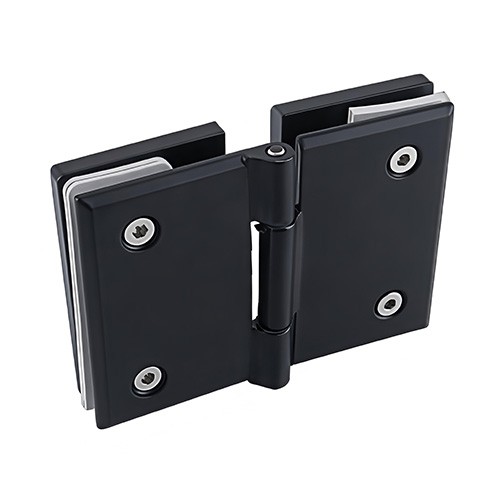

The Countersunk Screw Face: This side is the powerhouse. Four precisely engineered countersunk screw holes allow the fixing screws to sit perfectly flush with the hinge surface. This is not just an aesthetic choice; it's a critical feature for functionality, safety, and water-tightness, ensuring no interference with the opposing glass panel or sealing strips when the door is closed. It securely locks the clamping force within the hinge, silently providing unshakeable support.
This "one side grace, one side power" design provides installers with the flexibility to choose which face is presented outward based on project needs and aesthetic preferences, showcasing our obsessive attention to product detail.
Solid as a Rock: The Intrinsic Strength of Solid Stainless Steel
In the humid, high-traffic environment of a bathroom, the material of the hardware dictates its longevity and safety. The JC-063 makes no compromises.
Solid Precision Casting: We reject inferior hollow or welded construction methods. Every JC-063 hinge is created from a single block of solid SUS 304 stainless steel using a precision casting process. This results in a uniform internal structure with no weak points, capable of withstanding tensile and shear forces far exceeding normal use, fundamentally eliminating the risk of breakage or deformation.
The Superiority of SUS 304 Stainless Steel: As the industry-recognized ideal material for bath hardware, 304 grade's high chromium and nickel content forms a dense, passive layer on its surface, offering robust resistance to corrosion from water, soaps, and cleaning agents. Choosing 304 stainless steel is a commitment to a lasting, rust-free, pristine finish and peace of mind. For specific projects, a more cost-effective 201 stainless steel option is also available.
The Precision Mechanical Core: Every Swing is an Experience
The power of the JC-063 lies not just in its static load-bearing capacity, but in its dynamic performance.
Powerful Self-Centering: Concealed within is a powerful spring and damping system. When the door is opened beyond 25 degrees, it can hold its position. Within the 25-degree arc, it uses the spring's potential energy to automatically, smoothly, and silently guide the door back to the 0-degree center position. This ensures the shower door is always closed when not in use, effectively keeping the bathroom dry and tidy.
Durable Pivot Pin: The pivot pin is the heart of the hinge. We use high-hardness, high-wear-resistance materials and precision machining to ensure that even after tens of thousands of cycles, the rotational tolerance remains at a micro-level, preventing any sagging or loosening.
The Care in the Chamfer: Look closely at the edges of the JC-063 and you'll notice that all corners are finely chamfered (beveled). This not only gives the hinge a softer visual appeal but, more importantly, it eliminates sharp edges. This thoughtful detail prevents accidental cuts and scratches during installation and daily use, reflecting our human-centric design philosophy.
From Matte Black to Polished Chrome: A Perfect Match for Your Design
We offer a range of industry-leading finishes to ensure the JC-063 becomes a highlight of your design scheme.
Matte Black: Exceptionally modern and industrial, creating a strong visual contrast that is a top choice for contemporary designers.
Brushed Stainless: A timeless metallic texture, offering understated luxury while effectively resisting fingerprints for easy maintenance.
Polished Chrome: A mirror-like finish that instantly enhances a room's brightness and sense of luxury, perfectly complementing chrome faucets.
All finishes are subjected to rigorous salt spray testing to guarantee their adhesion and durability, ensuring they remain vibrant even after years of service.
A Complete Solution
The JC-063 180° hinge is key to creating grand, linear shower spaces, but a perfect enclosure requires coordinated components. You can pair it with our wall-to-glass fixed clamps to secure side panels or choose a matching stainless steel shower door handle. On our stainless steel hardware products overview page, you will find all the high-quality, stylistically consistent hardware you need.
Conclusion
With its unique dual-face design, solid stainless steel construction, and precision internal mechanics, the JC-063 180-degree glass-to-glass hinge redefines the standard for heavy-duty shower hardware. It is not just a connector; it is a perfect fusion of design ingenuity, engineering force, and safety-conscious detail. Choose the JC-063 to give your project a core that is reliable, beautiful, and truly distinctive.
Technical Specifications
Feature Description
Model Number JC-063
Product Name Heavy-Duty 180-Degree Glass-to-Glass Hinge
Main Material 304 Stainless Steel (Recommended), 201 Stainless Steel (Optional)
Surface Finish Matte Black, Brushed, Polished, Customizable
Applicable Glass 8mm - 12mm Thick Tempered Glass
Installation Type 180-Degree In-Line Glass-to-Glass
Key Design Dual-Face (Smooth Face / Countersunk Screw Face)
Core Function Self-centering within 25°, Dual-action swing

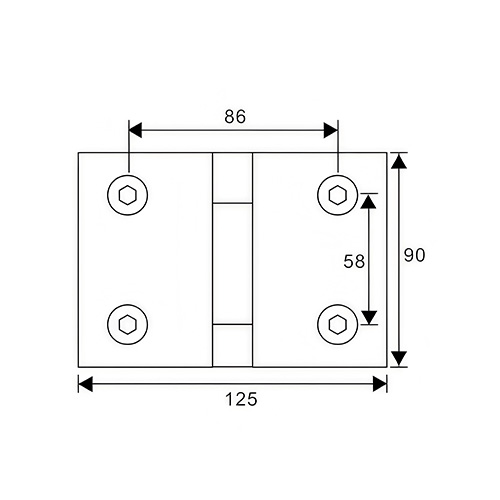

Overall Dimensions 125mm (W) x 90mm (H)
