250 Short One-arm Spider Fitting – Stainless Steel Glass Curtain Wall Connector with Video Demo
Explore how the 250 short one-arm spider fitting is used in real-world glass canopy construction. Stainless steel hardware for frameless glass curtain walls, corners, and rain shelters. Watch the video demo now.

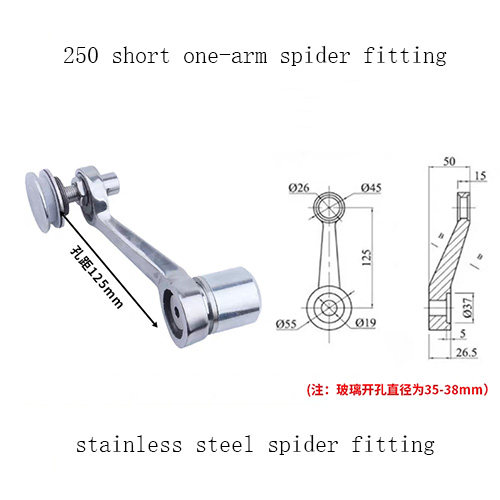

The 250 short one-arm spider fitting is a precision-engineered stainless steel connector widely used in modern curtain wall and frameless glass canopy systems. Its compact, short-arm design is ideal for corner glass connections, edge glazing points, and installations where space is limited.
To showcase this spider fitting in action, we have published a real project installation video on YouTube. You can watch how this hardware is applied to a large glass canopy structure with a steel frame, tension rod support, and full frameless glass panels.
Watch the video here (1) Stainless Steel Spider Fittings Installed on Large Glass Canopy with Tension Rods #spiderfittings - YouTube
Project Summary from the Video

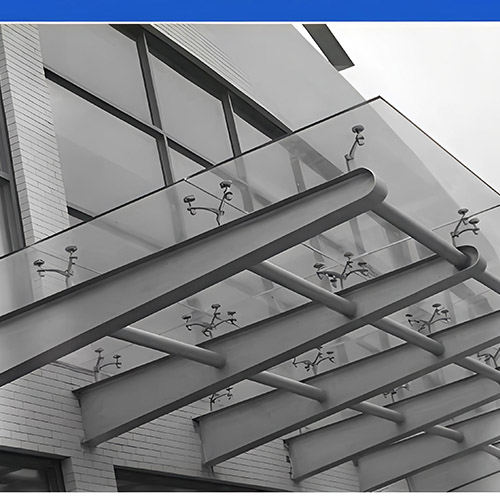

In the featured project, the canopy base is made of a robust steel structure. Each glass panel is mounted using 250 short one-arm spider fittings, providing sleek, secure, and flexible connections. Stainless steel tension rods are added to reinforce the canopy, with one end fixed to the vertical wall and the other connected to the steel beam and spider fittings. This system ensures structural safety, modern aesthetics, and long-lasting performance.
Key Features

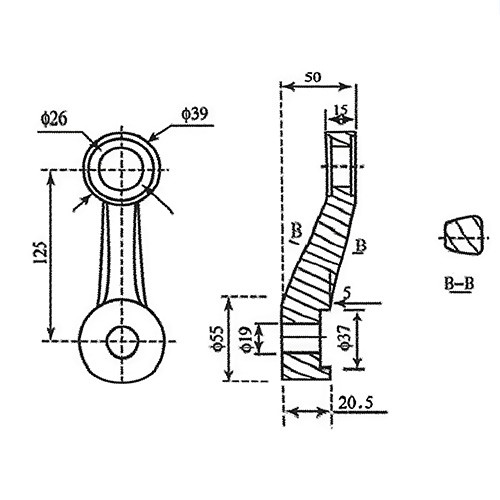

Model 250
Type Short one-arm spider fitting
Material Stainless steel 304 or 316
Finish Brushed or Mirror polished
Glass hole diameter 14mm customizable
Suitable for 12mm to 15mm glass
Supports point-fixed curtain walls, frameless glass canopies, and glass edge connections
Why Choose the 250 Short One-arm Spider Fitting
Space-saving short-arm design for tight installations
Real-world application in glass canopy projects
Supports tension rod systems for added stability
Compatible with spider routels and stainless mounting bases
Ideal for commercial buildings, atriums, airports, and glass facades
Typical Applications
Frameless glass curtain wall corner joints
Glass canopy installations with tension rod support
Atrium skylights and modern entrances
Point-fixed glass facade and commercial rain shelters
Recommended Matching Products
Spider Routel – Model RLT01
Stainless Steel Tension Rod – Model RLYP01
Four-arm Spider Fitting – Model 300N4
Watch It in Action
See how the 250 short one-arm spider fitting is installed in a real construction project.
Watch the Installation Video on YouTube (1) Stainless Steel Spider Fittings Installed on Large Glass Canopy with Tension Rods #spiderfittings - YouTube
This stainless steel spider fitting is part of our architectural glass hardware collection, engineered for modern design, durability, and flexible installation. Explore more on our website or contact us for custom canopy hardware solutions.
