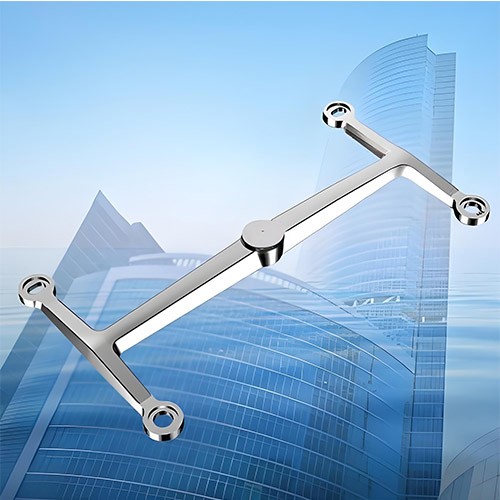

2540 Series H-Type Four Arm Spider Fitting

a. Overview

The 2540 Series H-Type Spider Fitting is a heavy-duty stainless steel glass connector designed for architectural applications like curtain walls, canopies, and skylights. Its distinct rectangular four-hole layout provides stronger structural distribution and a sleek, modern appearance.

b. Material & Finish

• Material Options: SUS304 or SUS316L stainless steel

• Finish Choices: Mirror polished, brushed, or custom matte finish
  These high-grade materials ensure excellent corrosion resistance and long-term durability, even in coastal or high-humidity environments.

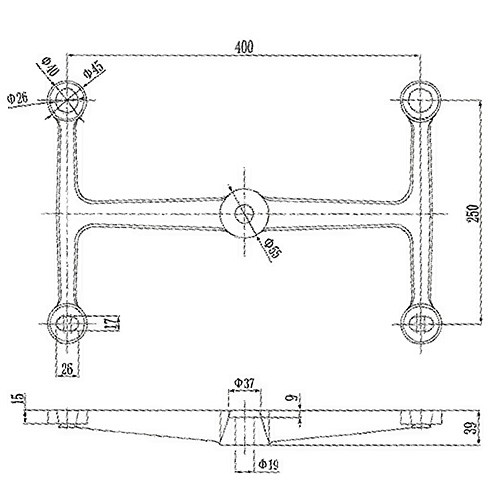

c. Structure & Dimensions

• H-Type Core Body: I-beam inspired structure ensures symmetrical load-bearing performance.

• Rectangular Hole Layout: Designed for enhanced force distribution and aesthetic balance.

• Glass Thickness Compatibility: Supports tempered glass ranging from 8mm to 20mm.

• Custom Sizes Available: Can be adjusted to match project-specific glass panel sizes.

d. Installation Features

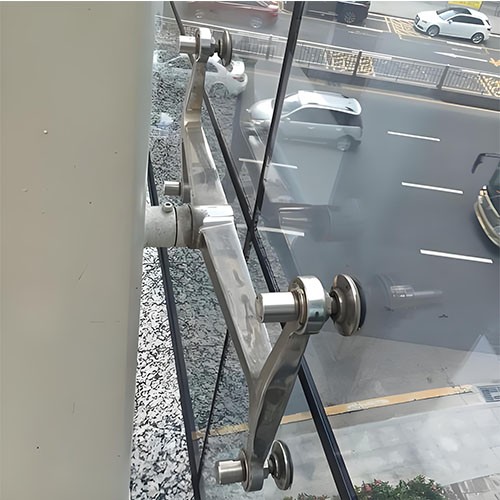

• Easy Bolt Fixing System: Allows for fast and reliable installation on steel, concrete, or aluminum frameworks.

• Strong Compatibility: Perfectly matches with our other spider arm series such as 200, 250, and tension rod components.

• Wide Applications: Suitable for commercial buildings, modern atriums, glass lobbies, sunrooms, skylights, and more.

e. Design Aesthetics

The rectangular symmetry of the H-type spider claw adds a modern geometric character to your facade. It combines strength with minimalism, allowing more natural light while maintaining strong joint integrity.

f. Custom Services

We offer flexible customization, including:

• Dimensions and hole distances

• Surface finishing (mirror/brushed)

• Compatibility for project-specific mounting conditions

g. Key Features (bullet points for clarity)

• Rectangular hole layout for balanced load-bearing

• SUS316L for marine-grade corrosion resistance

• Aesthetic surface finish options: mirror or brushed

• Supports tempered glass panels from 8–20mm

• Ideal for curtain walls, skylights, and glass canopies

• Easy to install and integrate with spider systems
