RL3003 300 Series 2-Way 180 Degree Spider Fittings for Structural Glazing
Category: Glass Spider Fittings / Glass Fin Connectors
Model: RL3003 (I-Shape / Linear)
Material: Stainless Steel 304 / 316
Product Overview

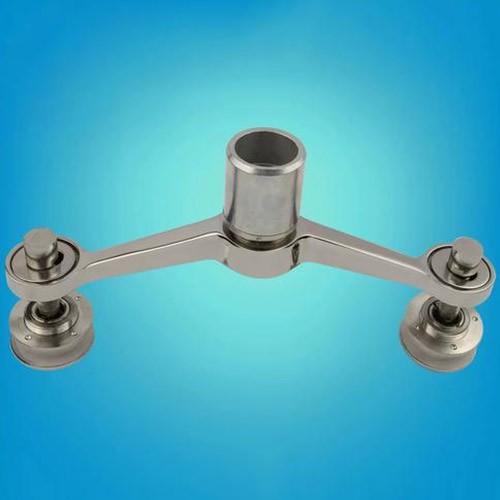

The RL3003 300 Series 2-Way 180 Degree Spider Fitting is a specialized connector in point-fixed glass systems. Unlike the 4-arm variants used in the center of panels, this "I-Shape" or Linear fitting is engineered to connect two glass panels in a straight line or to secure glass fins (structural glass ribs).
Featuring a heavy-duty 300mm axial distance, the RL3003 is designed to handle significant tension and shear loads, making it a preferred choice for high-rise buildings and shopping mall facades in growing construction markets like Lagos (Nigeria) and Addis Ababa (Ethiopia).
Key Features & Technical Advantages
Linear Configuration (180°): The two arms extend in opposite directions (180 degrees), creating a straight line. This is essential for vertical glass joints or horizontal linear spans.
Heavy Duty 300 Series: Compared to the lighter 200 series, the 300mm span offers greater leverage and stability, ideal for thicker tempered glass (12mm-19mm) or insulated glass units.
Material Durability:
SUS304: Standard for general commercial buildings.
SUS316: Essential for coastal projects or high-humidity areas, offering superior rust resistance.
Flexible Mounting: Can be welded to a steel structure or bolted to a concrete anchor, depending on your project design.
Applications (Where to use RL3003)

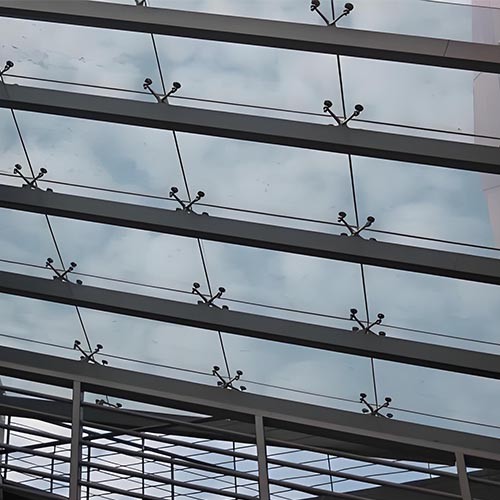

Glass Fin Connections: This fitting is widely used to connect vertical glass fins (mullions) which support the main facade against wind loads.
Vertical Glass Joints: Used between two glass panels stacked vertically in a curtain wall system.
Partition Walls: Ideal for long, straight runs of internal glass partitions in offices or airports.
Canopy Support: Often used in the center of glass canopy beams to connect linear glass sheets.
System Integration: For a complete facade solution, this 2-way fitting is often used alongside ourswivel routelswhich handle the central panel connections.
Technical Parameters
Model: RL3003

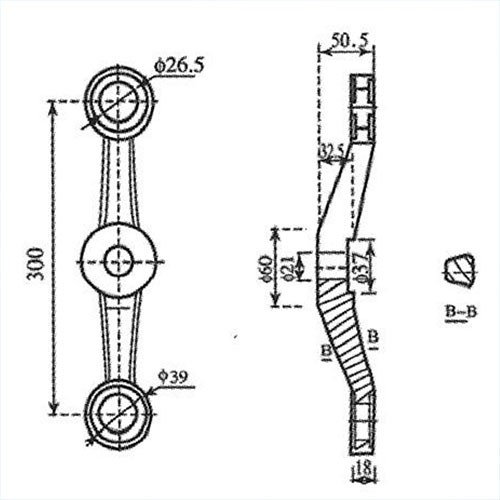

Hole-to-Hole Distance: 300mm (See technical drawing for details).
Arm Angle: 180 Degrees.
Surface Treatment: Mirror Polished (PSS) or Satin Brushed (SSS).
Load Capacity: Heavy duty, tailored for structural glass.
Why Choose Our Spider Fittings?
Precision Casting: We use lost-wax investment casting to ensure dimensional accuracy and a smooth surface finish free of defects.
Global Export: We have extensive experience shipping to Africa (Kenya, South Africa, Ghana), the Middle East, and Europe. We understand the documentation and packaging required for international logistics.
Complete Accessories: We don't just sell the spider arms. We provide the matching swivel routels/bolts that fit perfectly into the RL3003 mounting holes.
FAQ (Frequently Asked Questions)
Q1: What is the difference between the 180-degree (I-shape) and 90-degree (V-shape) 2-way spider?
A1: The 180-degree (RL3003) connects glass in a straight line (linear). The 90-degree V-shape is used at the corners of a building box. Please ensure you select the correct angle for your design.
Q2: Can this fitting support double-glazed (insulated) glass?
A2: Yes, the heavy-duty 300 series is strong enough for insulated glass units (IGU). However, you must choose the correct routels (bolts) that are long enough to pass through the thicker IGU panels.
Q3: Do you offer samples for testing?
A3: Yes, we can provide samples for quality verification before bulk production. Please contact our sales team for shipping costs to your location.
Contact Us
For wholesale inquiries, technical support, or to request a price list for the RL3003 series:
Email: stainless.steels.hardware@gmail.com
Website: www.stainlesssteelhardwares.com
Tel: +86-180-61818518
