RL3004 Heavy Duty 300 Series 2-Way 90 Degree (V-Shape) Spider Fitting for Glass Corners
RL3004 Heavy Duty 300 Series 2-Way 90 Degree (V-Shape) Spider Fitting for Glass Corners
Manufacturer of RL3004 300 series 90-degree V-shape spider fittings. Designed for secure 90° corner connections in glass curtain walls. Heavy-duty stainless steel. Exporting to Vietnam, Saudi Arabia, Chile, and worldwide.

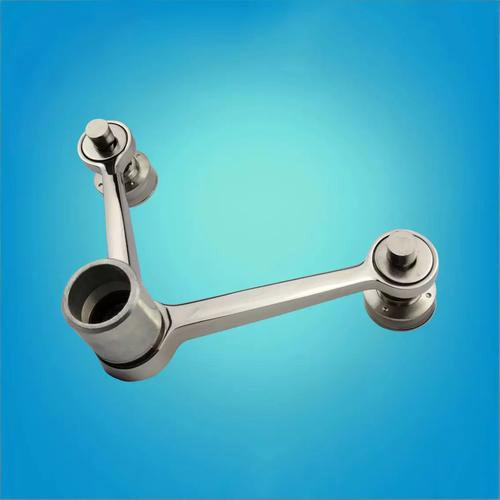

RL3004 300 Series 2-Way 90 Degree (V-Shape) Spider Fittings for Glass Corners
Category: Glass Spider Fittings / Corner Connectors
Model: RL3004 (V-Shape / 90 Degree)
Material: Stainless Steel 304 / 316
Product Overview
The RL3004 300 Series 2-Way 90 Degree Spider Fitting is the definitive solution for handling the corners of point-fixed glass structures. While standard flat walls require 180-degree or 4-arm fittings, building designs often feature 90-degree external corners where two glass facades meet. The RL3004 features a "V-Shape" design that perfectly accommodates this right-angle geometry.
As part of our heavy-duty 300 series (300mm hole-to-hole span), this fitting provides the extra leverage and strength needed at building corners, which are often subject to higher wind loads and vortex shedding than the center of the wall.
Global Application Scenarios
From humid tropical climates to arid desert environments, our RL3004 fittings are installed in diverse locations:
Commercial High-Rises in Ho Chi Minh City (Vietnam): Used for the sleek glass corners of modern office towers, requiring robust 304 stainless steel.
Luxury Hotels in Riyadh (Saudi Arabia): The mirror-polished finish is a favorite for desert climates, reflecting heat and providing a premium look for hotel entrances.
Coastal Resorts in Santiago (Chile): For projects near the ocean, we supply AISI 316 grade, ensuring the fittings resist salt corrosion while securing heavy laminated glass against coastal winds.
Shopping Mall Atriums in Manila (Philippines): Creating seamless 90-degree glass turns for elevator shafts and shopfronts.
Key Features
V-Shape Configuration: The two arms form a precise 90-degree angle. This is strictly for corner applications, distinguishing it from our 180-degree I-shape fitting (RL3003).
Heavy Duty 300mm Span: The larger footprint of the 300 series distributes stress more effectively across the glass corner than smaller 200mm fittings.
Adjustability: When paired with our articulated routels, the system allows for slight movements caused by thermal expansion or seismic activity, protecting the glass from cracking at the corners.
Finish Options:
Satin (Brushed): Low maintenance, hides fingerprints/scratches.
Mirror (Polished): High reflectivity, premium aesthetic.
Technical Specifications

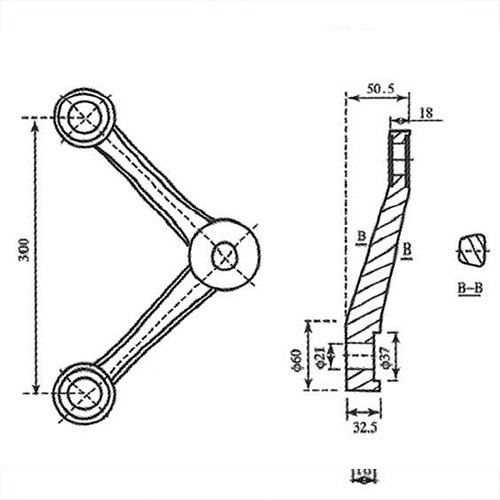

Model: RL3004
Angle: 90 Degrees (Fixed V-Shape).
Axial Distance: 300mm (Distance between glass mounting centers).
Base Connection: Connects to steel post or concrete anchor via a central welding connector.
Glass Thickness: Compatible with 10mm - 25mm glass (dependent on routel selection).
Installation Tip: For a complete building facade, the RL3004 is typically used on the vertical corner columns, while the RL3001 4-arm spiders are used for the main flat surfaces.
Why Buy From Us?
Region-Specific Solutions: We understand the varying requirements of different markets, from the heavy-duty specifications needed in Chile to the aesthetic demands of Dubai.
Direct Manufacturing: By buying directly from our factory, you ensure quality consistency and competitive wholesale pricing.
Customization: Need a non-standard angle (e.g., 135 degrees for a hexagon building)? We can customize the casting mold to fit your architectural drawings.
FAQ (Frequently Asked Questions)
Q1: Can I use this 90-degree spider for an internal corner?
A1: Yes, the RL3004 can be used for both external and internal corners, depending on how the steel structure and glass are positioned relative to the spider.
Q2: What is the recommended glass hole size for this fitting?
A2: The hole size depends on the routel (bolt) you choose, not just the spider. Typically, for standard routels, a hole diameter of roughly 28mm-32mm is common. Please check our Routels & Bolts page for exact specs.
Q3: How do you package these for export to South America?
A3: We use individual bubble wrapping for each spider to prevent scratches, packed into sturdy inner boxes, and then into wooden crates or pallets to ensure safe arrival in places like Valparaíso or Callao.
Contact Information
For price lists, technical CAD drawings, or shipping estimates to your city:
Email: stainless.steels.hardware@gmail.com
Website: www.stainlesssteelhardwares.com
Tel: +86-180-61818518
