304 Stainless Steel Glass Door Patch Fitting – Top & Bottom Set for 10-12mm Frameless Glass Door
304 Stainless Steel Glass Door Patch Fitting – Top & Bottom Set for 10-12mm Frameless Glass Door

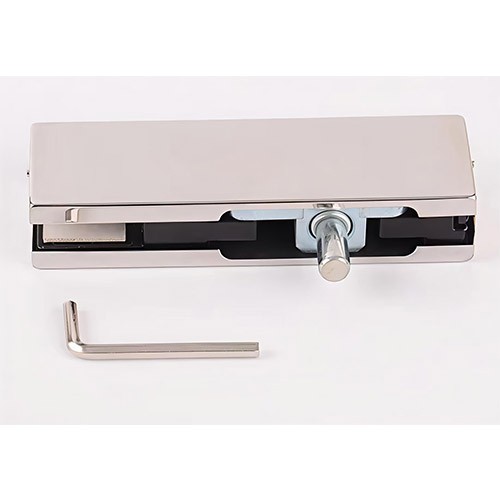

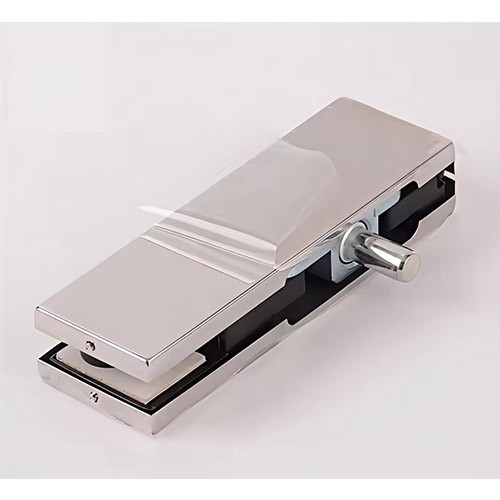

This 304 stainless steel glass door patch fitting set includes top and bottom accessories, designed for 10-12mm frameless tempered glass doors. Cover in SS201/SS304, core in aluminum/zinc alloy, modern style, 3D modeling support. 2-year warranty, online technical support. Includes Korea real case studies and installation guide. Upgrade your glass door stability and security.
304 Stainless Steel Glass Door Patch Fitting – Top & Bottom Set for 10-12mm Frameless Glass Door
The aesthetics of a frameless glass door depend on the precision and durability of its hardware. This 304 stainless steel glass door patch fitting set includes both top and bottom clamps, specifically designed for 10-12mm tempered glass. Whether for office buildings, hotels, shopping malls, villas, or apartments, this frameless glass door clamp set provides reliable fixing and smooth operation. The product features a stainless steel cover (SS201 or SS304) with an aluminum/zinc alloy core, balancing strength and light weight.
1. Technical Specifications
Parameter Value
Product Name Stainless Steel Glass Door Patch Fitting (Top + Bottom Set)
Suitable Door Type Frameless Swing Glass Door
Suitable Glass Thickness 10-12 mm tempered glass
Cover Material Stainless Steel SS201 or SS304
Core Material Aluminum Alloy / Zinc Alloy
Finish Natural (custom colors available)
Function Connect to glass door and bear door weight
Soundproof Performance Rubber shims reduce vibration transmission
Design Style Modern
Project Solution Capability 3D model design
After-sale Service Online Technical Support
Warranty 2 Years
Carton Size 38.5 x 17.5 x 22 cm

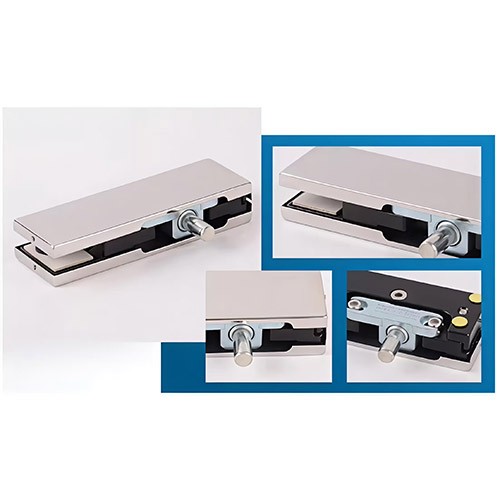

This glass door clamp set uses a split structure: the bottom clamp bears the main door weight, while the top clamp provides guidance and auxiliary fixing. The cover is made of precision-stamped 304 stainless steel (or SS201) with a brushed or polished finish – rust-proof, wear-resistant, and easy to clean. The internal aluminum/zinc alloy core is die-cast for high dimensional accuracy, with rubber shims on the glass-contact surface to avoid hard contact and enhance soundproofing.
Both top and bottom clamps feature adjustable pivot holes to accommodate different glass thicknesses. The modern design style allows this hardware to blend into minimalist, industrial, and light luxury interiors. After installation, the clamps sit nearly flush with the glass surface.
3. Application Scenarios Complete Example
Office Building Entrance : With 12mm tempered glass door, bottom clamp bears weight, top clamp guides – easy to operate.
Hotel Ballroom : Large glass partition doors, stainless steel glass clamp maintains transparency.
High-end Apartment : Balcony or entry glass door, 304 grade resists daily humidity.
Retail Store : Glass display door, 10mm glass with this clamp – simple and durable.
Hospital, School : No sharp edges, meets safety standards.
4. Installation Instructions
Tools required: Electric drill, Allen key, spirit level, screwdriver, marker pen, rubber mallet.
Step 1 – Prepare glass
Ensure glass is 10-12mm tempered with chamfered edges. Clean oil and dust from top and bottom edges.
Step 2 – Install bottom clamp
Fit the bottom clamp core onto the glass bottom corner, typically 15-20mm from the glass side edge. Pre-tighten screws but do not lock. Insert the bottom pivot pin into the clamp’s pivot hole.
Step 3 – Install top clamp
Similarly fit the top clamp onto the glass top corner, vertically aligned with the bottom clamp. Pre-tighten screws.
Step 4 – Position frame pivot sockets
Install bottom and top pivot sockets (purchased separately) on the floor and door frame. Vertically place the glass door so the bottom pivot pin enters the floor socket and the top pivot pin aligns with the top socket.
Step 5 – Adjust verticality and gaps
Use a spirit level to check door verticality. Loosen clamp screws, fine-tune glass position to achieve even gaps (side gaps 2-3mm, bottom gap 3-5mm). Then tighten all clamp screws evenly in 2-3 rounds.
Step 6 – Test operation
Open and close the door 10-20 times, check for sticking or noise. Add a small amount of lubricant to pivots if needed.

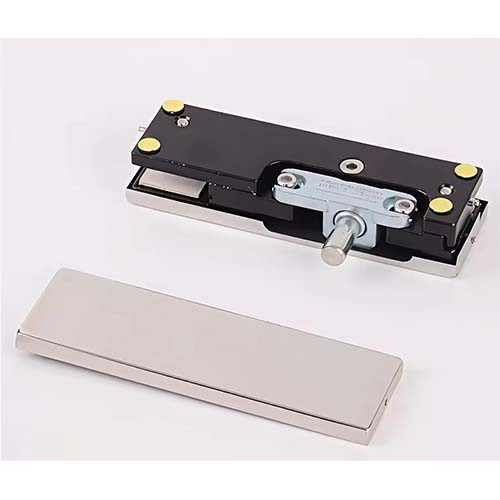

Step 7 – Snap on cover plates
Finally, snap the stainless steel covers onto the clamp bodies.
Professional tip: For large glass curtain wall systems using similar principles, refer to our Spider Fittings and Glass Spigots series. For small shower glass doors, consider Shower Door Pivot pivots.
5. VS Competitors: Clear Advantages of This 304 Stainless Steel Glass Door Patch Fitting
Comparison Ordinary Zinc Alloy Clamp This 304 Stainless Steel Glass Door Clamp
Cover material Painted iron or zinc alloy SS201/SS304 stainless steel, genuine
Core material Plastic or recycled aluminum Aluminum/zinc alloy die-cast, high strength
Rust resistance Rusts within a year 304 version: 48h salt spray test, no rust
Load capacity Average, deforms easily Reinforced bottom clamp design
Soundproof design No rubber shim Built-in rubber shims reduce vibration noise
Warranty Usually 6 months-1 year 2 years
Design support None 3D modeling for project pre-planning
Customer voice: A facility manager at a Grade A office in Gangnam, Seoul, said: “Our previous clamps showed rust spots after one year, and the door started to sag. After switching to this 304 stainless steel glass door patch fitting set, two years later they are still shiny and the door operates very smoothly. The rubber shims also effectively reduced metal collision noise – our tenants are happy.”
6. Use Cases – Korea
Case 1: Gangnam, Seoul – Grade A Office Tower
Project : Gangnam Finance Center, lobby and skybridge glass doors.
Quantity : 48 sets of 304 stainless steel glass door patch fitting (top + bottom).
Installation type : With 12mm tempered glass, floor pivot sockets embedded.
Feedback : Engineering Manager Mr. Park: “Gangnam has extremely high quality standards. This frameless glass door clamp set made of 304 stainless steel has no rust concerns at all. What impressed me most is its dimensional accuracy – the pivot holes of all 48 sets were perfectly aligned, requiring almost no individual adjustment after door installation. After two years of heavy use (500 cycles/day), no loosening or sagging.”
Result : The project won the 2024 Seoul Green Building Award, with zero hardware failures.
Case 2: Haeundae, Busan – Beachfront Resort Hotel
Project : Paradise Hotel Busan, pool area and ocean-view restaurant glass doors.
Quantity : 32 sets of stainless steel glass door patch fitting (SS304 cover, natural color).
Special requirement : High salt-mist coastal environment, extreme corrosion resistance needed.
Feedback : Hotel Maintenance Director Ms. Choi: “Busan’s sea salt is very aggressive – our previous clamps showed white spots in six months. After switching to this 304 stainless steel glass clamp, after one full year of sea breeze, no rust at all. The rubber shims also effectively absorb vibration during typhoon winds – the door doesn’t wobble. We plan to replace all hotel glass doors with this product.”
Related link : For sliding door applications in similar high-humidity environments, choose our Shower Door Roller / Sliding Roller stainless steel wheels.
Case 3: Seogwipo, Jeju Island – Luxury Resort Villa
Project : Jeju Healing Resort, 12 independent villas with entry and balcony glass doors.
Quantity : 24 sets of top + bottom glass door patch fitting (SS201 cover, economy version).
Installation type : 10mm tempered glass, top assisted with Fin Spider from curtain wall accessories.
Feedback : Villa owner Mr. Kim: “Jeju is windy and humid – I need hardware that is both aesthetic and weather-resistant. This stainless steel glass door patch fitting has a modern minimalist look that matches our volcanic stone exterior. The installer said the screw holes were very accurate – all doors were installed in one morning. After one year, no screws loosened and the surface remains shiny. Paired with your Shower Door Support Bar / Stabilizing Bar, the door is very stable even on windy days.”
Internal link : For large-span glass curtain walls, consider Fin Spider to increase wind load resistance.
7. Structured FAQ
Q1: Does this top and bottom clamp set include pivot sockets?
A: This product includes only the clamps (with pivot pins). Floor and frame pivot sockets need to be purchased separately to suit different installation thicknesses and specifications. We can supply matching sockets – please contact sales.
Q2: What glass thickness is it suitable for?
A: 10mm and 12mm tempered glass. The clamp channel has compressible rubber shims that adapt to thickness tolerances and provide cushioning and soundproofing.
Q3: What is the difference between SS201 and SS304 covers? Which should I choose?
A: SS304 has higher nickel content and better salt-spray corrosion resistance, ideal for coastal or high-humidity environments (e.g., Busan, Jeju). SS201 is cost-effective for normal indoor use. Appearance is very similar.
Q4: Can the bottom clamp handle heavy glass doors?
A: This set is designed for glass doors up to 900mm wide x 2100mm high (12mm glass). For larger sizes, consider adding an intermediate clamp or using a heavy-duty floor spring. For extra-heavy glass, inquire about our Glass Spigots series.
Q5: Do I need special tools for installation?
A: No. Standard Allen key, Phillips screwdriver, and spirit level are sufficient. We provide detailed installation templates and drawings.
Q6: What does the 2-year warranty cover?
A: Any non-artificial manufacturing defect (including cover rust, core cracking, rubber shim aging) within 2 years is covered by free replacement. Online technical support is available 7x24.
Q7: Is there a video installation guide?
A: Welcome to visit our YouTube channel for detailed demonstrations: Official Hardware Channel
8. Related Product Recommendations
To build a complete glass door and curtain wall hardware system, we recommend the following products:
Curtain wall glass connectors: Spider Fittings, Fin Spider, Glass Spigots
Shower and small glass door pivots: Shower Door Pivot
Sliding door roller systems: Shower Door Roller / Sliding Roller
Glass door horizontal stabilizing bars: Shower Door Support Bar / Stabilizing Bar
Buy this 304 stainless steel glass door patch fitting set today – stable, durable top and bottom fixing for your frameless glass doors.
