JC102 Stainless Steel Bathroom and Shower Glass Clamp 90 Degree Fixed Clamp
JC102 Stainless Steel Bathroom and Shower Glass Clamp 90 Degree Fixed Clamp
JC102 stainless steel Bathroom and Shower Glass Clamp for 5 to 8mm tempered glass. 90 degree fixed clamp with auto closing feature for frameless shower doors.
The Key to Modern Bathrooms: A Deep Dive into Bathroom & Shower Glass Clamp and Fixed Clamp
In modern home interior design, frameless glass shower enclosures have become the top choice for families worldwide due to their sleek, transparent, and minimalist visual appeal. However, what supports this minimalist aesthetic is the high-performance hardware hidden behind the glass: the Bathroom & Shower Glass Clamp and the Fixed Clamp.
For designers and homeowners alike, selecting the right Bathroom & Shower Glass Clamp is not just about looks; it’s about ensuring long-term structural integrity and safety. Today, we will focus on the JC-102 model and explore how it sets the standard for small-space shower solutions.
1. Why Bathroom & Shower Glass Clamp is Vital for Your Shower
The shower environment is unique, characterized by high-frequency use, high humidity, and the significant dead weight of the glass itself.
Load Bearing and Stability
A standard Fixed Clamp must withstand the constant pressure exerted by the glass panel. Take the JC-102 as an example: it is engineered to support a door weight of 25 kg (approx. 55 lbs) per pair. This load capacity ensures that the door does not sag or loosen over time, protecting users from the risk of glass breakage.
Corrosion Resistance
Given that bathrooms are constantly exposed to moisture, a premium Fixed Clamp must be made from high-grade stainless steel. This material is not only resistant to oxidation but also maintains its texture—whether in a Polish or Satin finish—despite years of exposure to steam.
2. JC-102 Model: Deep Technical Breakdown
The JC-102 is a small-size, square straight-edge, 90-degree single-side bathroom glass clamp. Its precision engineering makes it ideal for light to medium-duty glass door systems.
Core Specifications
Compatible Glass Thickness: 5mm to 8mm (approx. 0.2 inches to 0.31 inches). This thickness is common in space-saving apartments or guest bathrooms.
Suitable Door Width: 600mm to 800mm (approx. 23.6 inches to 31.5 inches).
When installing a Bathroom & Shower Glass Clamp, the JC-102 utilizes a 90-degree single-side mounting structure. This means it connects the glass door directly to the wall or a fixed panel at a perpendicular angle.
Compact Design (Small Size)

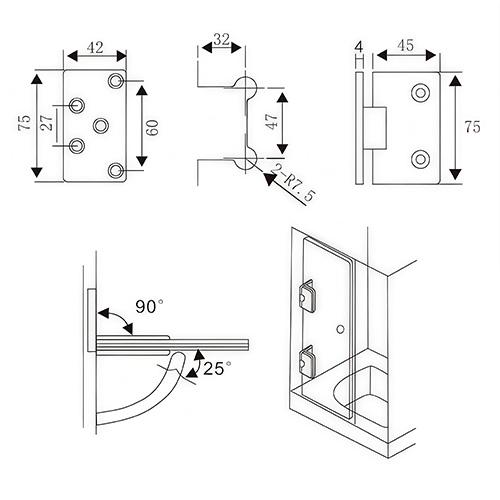

Compared to bulky industrial hinges, the JC-102 has a much more compact footprint. Its base width ranges from 42mm to 45mm (approx. 1.65 inches to 1.77 inches), ensuring minimal visual interference and maximizing the pure, unobstructed look of the glass.
4. How to Professionally Install Your Bathroom & Shower Glass Clamp
Proper installation is a prerequisite for the performance of a Fixed Clamp. Please follow these professional steps:
Step 1: Positioning and Measurement
First, measure the verticality of the wall. Mark the hinge centerline. The JC-102 features a center hole distance of 60mm (approx. 2.36 inches). Ensure drilling is precise.
Step 2: Gasket Installation
High-quality gaskets must be placed between the glass and metal contact surfaces. This prevents the metal from directly touching the tempered glass (which could cause shattering) while increasing friction to ensure the glass does not slide.
Step 3: Securing the Base
Mount the base of the Bathroom & Shower Glass Clamp to the wall. For brick or concrete walls, always use high-strength expansion bolts.
Step 4: Adjustment and Testing
Once the glass is hung, test the auto-closing function. Ensure the door returns smoothly to its closed position at the 25-degree mark.
5. Maintenance Tips for Longevity
To keep your Bathroom & Shower Glass Clamp shining like new for decades:
Regular Wiping: Wipe the metal surface with a soft cotton cloth once a month.
Avoid Acidic Cleaners: Although it is stainless steel, strong acids can damage the electroplated or polished surface layer.
Choosing a high-quality Fixed Clamp is a tribute to life’s finer details. With its stainless steel toughness, 25-degree intelligent sensing, and exquisite surface finishes, the JC-102 has become a staple in the global market. Whether your project is in the USA, Europe, or Asia, this hardware meets all international renovation standards.
FAQ: Frequently Asked Questions
Q1: Can I use the JC-102 on extra-thick glass (e.g., 12mm)?
A: It is not recommended. The JC-102 is specifically designed for 5-8mm (0.2-0.31 inches) glass. Thicker glass will exceed its clamping range and weight capacity.
Q2: Does the auto-closing feature require a power source?
A: No. It is achieved through a purely mechanical internal spring and physical force design, making it extremely safe and reliable.
Q3: Which is better, Polish or Satin finish?
A: The Polish finish looks more luxurious, similar to a mirror; the Satin finish is more modern and better at hiding fingerprints and water spots. Choose based on your bathroom tile style.
In modern home interior design, frameless glass shower enclosures have become the top choice for families worldwide due to their sleek, transparent, and minimalist visual appeal. However, what supports this minimalist aesthetic is the high-performance hardware hidden behind the glass: the Bathroom & Shower Glass Clamp and the Fixed Clamp.
For designers and homeowners alike, selecting the right Bathroom & Shower Glass Clamp is not just about looks; it’s about ensuring long-term structural integrity and safety. Today, we will focus on the JC-102 model and explore how it sets the standard for small-space shower solutions.
1. Why Bathroom & Shower Glass Clamp is Vital for Your Shower
The shower environment is unique, characterized by high-frequency use, high humidity, and the significant dead weight of the glass itself.
Load Bearing and Stability
A standard Fixed Clamp must withstand the constant pressure exerted by the glass panel. Take the JC-102 as an example: it is engineered to support a door weight of 25 kg (approx. 55 lbs) per pair. This load capacity ensures that the door does not sag or loosen over time, protecting users from the risk of glass breakage.
Corrosion Resistance
Given that bathrooms are constantly exposed to moisture, a premium Fixed Clamp must be made from high-grade stainless steel. This material is not only resistant to oxidation but also maintains its texture—whether in a Polish or Satin finish—despite years of exposure to steam.
2. JC-102 Model: Deep Technical Breakdown
The JC-102 is a small-size, square straight-edge, 90-degree single-side bathroom glass clamp. Its precision engineering makes it ideal for light to medium-duty glass door systems.
Core Specifications
Compatible Glass Thickness: 5mm to 8mm (approx. 0.2 inches to 0.31 inches). This thickness is common in space-saving apartments or guest bathrooms.
Suitable Door Width: 600mm to 800mm (approx. 23.6 inches to 31.5 inches).
Auto-Closing Technology: This is the standout feature of the JC-102. When the door is closed to an angle of 25 degrees, the internal precision spring mechanism causes the door to close automatically. This prevents water from splashing out due to an ajar door.
When installing a Bathroom & Shower Glass Clamp, the JC-102 utilizes a 90-degree single-side mounting structure. This means it connects the glass door directly to the wall or a fixed panel at a perpendicular angle.
Compact Design (Small Size)
Compared to bulky industrial hinges, the JC-102 has a much more compact footprint. Its base width ranges from 42mm to 45mm (approx. 1.65 inches to 1.77 inches), ensuring minimal visual interference and maximizing the pure, unobstructed look of the glass.
4. How to Professionally Install Your Bathroom & Shower Glass Clamp
Proper installation is a prerequisite for the performance of a Fixed Clamp. Please follow these professional steps:
Step 1: Positioning and Measurement
First, measure the verticality of the wall. Mark the hinge centerline. The JC-102 features a center hole distance of 60mm (approx. 2.36 inches). Ensure drilling is precise.
Step 2: Gasket Installation
High-quality gaskets must be placed between the glass and metal contact surfaces. This prevents the metal from directly touching the tempered glass (which could cause shattering) while increasing friction to ensure the glass does not slide.
Step 3: Securing the Base
Mount the base of the Bathroom & Shower Glass Clamp to the wall. For brick or concrete walls, always use high-strength expansion bolts.
Step 4: Adjustment and Testing
Once the glass is hung, test the auto-closing function. Ensure the door returns smoothly to its closed position at the 25-degree mark.
5. Maintenance Tips for Longevity
To keep your Bathroom & Shower Glass Clamp shining like new for decades:
Regular Wiping: Wipe the metal surface with a soft cotton cloth once a month.
Avoid Acidic Cleaners: Although it is stainless steel, strong acids can damage the electroplated or polished surface layer.
Check Screws: It is recommended to check the fixing screws once a year to ensure they haven't loosened slightly due to building vibrations.
Choosing a high-quality Fixed Clamp is a tribute to life’s finer details. With its stainless steel toughness, 25-degree intelligent sensing, and exquisite surface finishes, the JC-102 has become a staple in the global market. Whether your project is in the USA, Europe, or Asia, this hardware meets all international renovation standards.
FAQ: Frequently Asked Questions
Q1: Can I use the JC-102 on extra-thick glass (e.g., 12mm)?
A: It is not recommended. The JC-102 is specifically designed for 5-8mm (0.2-0.31 inches) glass. Thicker glass will exceed its clamping range and weight capacity.
Q2: Does the auto-closing feature require a power source?
A: No. It is achieved through a purely mechanical internal spring and physical force design, making it extremely safe and reliable.
Q3: Which is better, Polish or Satin finish?
A: The Polish finish looks more luxurious, similar to a mirror; the Satin finish is more modern and better at hiding fingerprints and water spots. Choose based on your bathroom tile style.
