Industrial Geometric Aesthetics: JC-A16 Matte Black L-Bracket Offset Shower Door Pivot
Industrial Geometric Aesthetics: JC-A16 Matte Black L-Bracket Offset Shower Door Pivot
Design the ultimate industrial bathroom! The JC-A16 Matte Black L-Bracket Offset Shower Pivot features dual wall-and-floor anchoring to maximize door clearance and bear heavy 8-12mm glass. Premium 304 stainless steel ensures rust-free longevity.
Reshaping Bathroom Geometry: The JC-A16 L-Bracket Offset Shower Pivot (Matte Black Series)
In modern interior design, particularly with the soaring popularity of "Industrial Loft" and "Modern Dark Minimalist" styles, frameless shower enclosures featuring bold black metallic accents have become the darling of global architects. However, the challenge remains: how do you allow a massive, heavy glass door to swing smoothly with a wide angle, while ensuring the hardware itself stands out as a geometric piece of art?

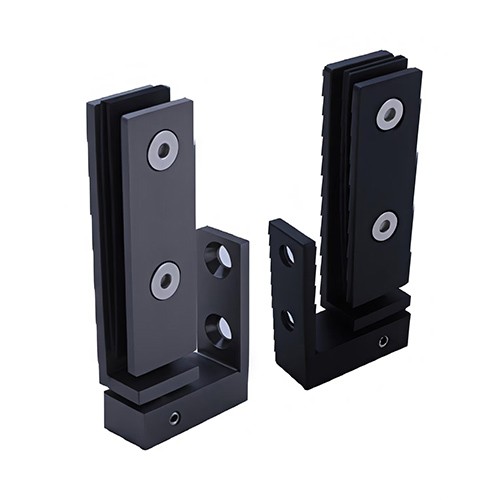

Belonging to our elite Shower Door Pivot category, our star product—the JC-A16 L-Bracket Offset Stainless Steel Shower Pivot (Matte Black)—is the perfect architectural answer to this demand. It breaks free from the limitations of traditional center-mounted pivots by utilizing an innovative "L-Bracket Offset" structure, providing unprecedented dual wall-and-vertical support for heavy-duty frameless glass doors.
Core Engineering & Precision Technical Specs
Model: JC-A16 (Shower room shaft - Offset Pivot System)
Structural Type: L-Bracket Wall-Mounted + Offset Pivot configuration.
Glass Compatibility: Specifically engineered to securely hold high-strength tempered safety glass ranging from 8mm to 12mm (approx. 5/16" to 1/2") in thickness.
Core Material: Forged from premium Stainless Steel (Available in commercial-grade SUS 201# and the highly corrosion-resistant marine-grade SUS 304#).
Surface Finish: An exceptionally profound Matte Black (Sub-black) baked paint or electroplated finish. Also available in Brushed, Mirrored, or custom color-matching for large projects.
Precision Dimensional Matrix (Ideal for custom heavy doors):
Total Height: 105mm (4.13"), projecting a commanding, heavy-duty presence.
L-Bracket Wall Mount Plate: Height 56mm (2.20") x Width 20mm (0.79"), featuring dual holes for aggressive wall anchoring.
Top Pivot Extension Arm: Length 45mm (1.77") x Thickness 13mm (0.51").

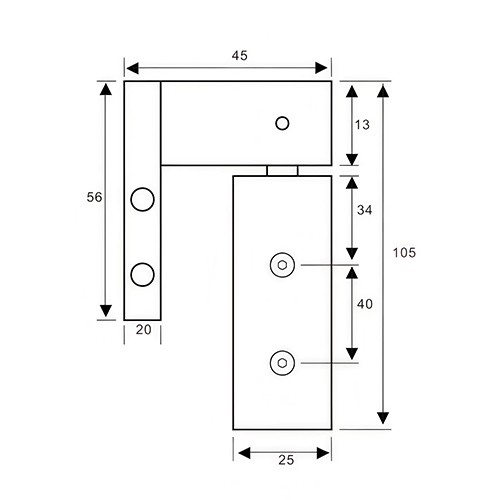

Glass Clamping Plate: Width 25mm (0.98"). Distance from the center of the hole to the pivot axis is 34mm (1.34"), with a dual-hole spacing of 40mm (1.57").
Why Architects Prefer the JC-A16 Offset Pivot System?
1. The Geometric Magic of the Offset Pivot: Maximizing Entry Clearance
Standard center-mounted pivots place the rotational axis right in the middle of the glass thickness. This means when the door opens 90 degrees, a portion of the glass panel intrudes into the entryway.
The JC-A16 utilizes a brilliant Offset Design (the pivot point is extended outward by 45mm / 1.77"). When the door is fully opened, the entire glass panel can swing clear of the wall or adjacent fixed glass edge. This drastically maximizes the actual clear opening width of the shower. It is particularly vital for ADA-compliant (barrier-free) bathroom renovations or compact spaces where moving large bathing items in and out is necessary.
2. L-Bracket Dual Anchoring: The Ultimate Compromise Between Wall and Floor
For oversized, heavy glass doors, relying solely on wall-mounted side hinges can stress and crack the wall tile, while relying solely on floor pivots can sometimes lack lateral anti-twist stability.
The JC-A16’s L-shaped mounting base (56x20mm / 2.20"x0.79") brilliantly solves this pain point. It locks securely into the solid wall via heavy-duty screws, while simultaneously transferring the sheer downward vertical weight through the pivot axis directly to the floor or header. This "Lateral Wall Anti-Sway + Vertical Axis Load Bearing" hybrid mechanism allows it to effortlessly handle ultra-tall, ultra-wide custom glass, completely eliminating door sagging and squeaky hinges.
3. Matte Black Industrial Aesthetics: A Visual Focal Point
Black is an eternally classic architectural statement. The JC-A16 features a multi-layered, high-temperature baked paint or advanced PVD finish, resulting in a highly tactile matte black surface. It is non-reflective, anti-fingerprint, and highly resilient against water spots and soap scum build-up in wet environments. When this rugged, L-shaped black pivot is paired with crystal-clear glass and white subway tiles, it instantly sketches a dynamic, modern geometric outline in your space.
4. The Unyielding Promise of 304# Stainless Steel
In a harsh environment perpetually saturated with steam and chemical shampoos, the lifespan of your hardware dictates the lifespan of the entire shower enclosure. We strongly urge our clients to specify the SUS 304# stainless steel variant. Its superior oxidation and rust resistance ensure that the internal mechanical structure of the pivot remains as silky smooth as day one, even after tens of thousands of opening cycles, saving you from expensive future maintenance and replacement costs.
Build Your Complete Black-Themed Hardware Ecosystem
An outstanding offset pivot requires equally excellent peripheral hardware to create a flawless showering experience. Within our product matrix, you can easily find the perfect matching components:
Anchoring the Stationary Force: Because an offset pivot door generates dynamic swinging forces, the adjacent fixed glass panels must be rock-solid. To maintain absolute color and style uniformity, we recommend securing those panels with our heavy-duty Matte Black Fixing Clamp / Glass Clamp. If your design involves complex wall-to-floor corner joints, our Bathroom&Shower Glass Clamp / Fixed Clamp brackets are the ultimate choice for building an unshakeable framework.
Luxury within Reach: To complement the black pivot, you absolutely must install a visually substantial and ergonomically pleasing Matte Black Shower Door Handle / Pull, turning every push and pull into a tactile joy.
Alternative Solutions for Tight Spaces: While the offset pivot optimizes entry space, it still requires a swinging radius. If your bathroom simply lacks the depth for a swing door, consider changing the operational method entirely by selecting our ultra-smooth, whisper-quiet black-finish Shower Door Roller / Sliding Roller system, achieving zero space waste.
Professional Installation Advice for Contractors
Solid Wall Verification: Because the JC-A16 features a wall-mounted bracket, you must ensure the mounting surface is solid brick, concrete, or contains heavy wood blocking/steel plates behind the drywall. Do not mount heavy pivot brackets to hollow drywall.
Offset Clearance Calculations: Offset pivots require highly precise glass cutting. Please have your professional glass fabricator strictly follow our provided templates (34mm / 1.34" pivot distance and 40mm / 1.57" hole spacing) to calculate the exact movement clearance needed between the glass and the wall/floor, preventing the door from binding during rotation. Remember: All glass drilling and notching MUST be completed BEFORE the physical tempering process.
Absolute Plumb Alignment: When installing the top and bottom L-brackets, a laser level is mandatory. You must ensure the upper and lower pivot pin holes are on the exact same vertical plumb line. Even a fraction of a degree of tilt will cause the offset door to swing poorly or bind.
Choosing the JC-A16 L-Bracket Offset Pivot is not just selecting a load-bearing component; it is choosing a sharp, distinct, and highly personalized architectural lifestyle. We welcome global architects, hotel procurement officers, and hardware distributors to contact us for detailed CAD drawings and bulk wholesale pricing.
