Riyadh Underground Parking Glass Canopy | Stainless Steel Spider Fittings for Saudi Arabia Projects
One of the most popular technical solutions for an “underground parking glass canopy Riyadh” project is a combination of steel structure and stainless steel spider fittings supporting large glass panels. This article explains how stainless steel spider fittings work on an underground parking entrance glass canopy, why they are well‑suited to Riyadh’s climate, and how they can be used on Saudi Arabia projects.
You can also see a real installation process in our short video:
https://www.youtube.com/shorts/fD3A9vUW3PI
Our stainless steel spider fittings product range:
https://www.stainlesssteelhardwares.com/spider-fittings.html

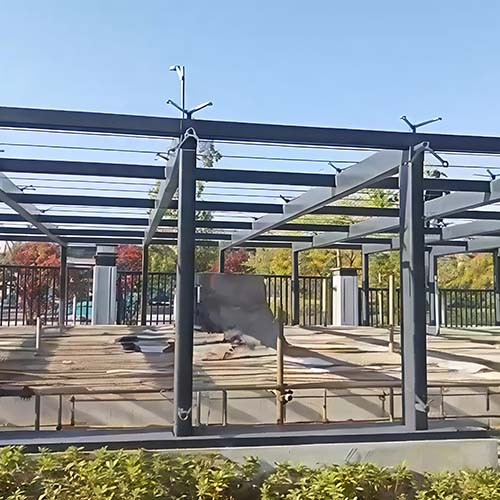

The reference project shown in our video is an underground parking entrance of a residential compound. Above the driveway ramp, a large glass canopy of over 300 m² is built. The construction method is:
first build the steel structure frame on site,
then install stainless steel spider fittings on the steel beams,
use routels to connect each glass panel to the spiders,
finally complete the full glass canopy over the entrance and exit.
This structure is almost identical to what many designers and contractors in Riyadh need when they search for “parking entrance glass canopy Saudi Arabia” or “Riyadh stainless steel spider fittings”.
For a typical underground car park entrance in Riyadh:
The driveway may be 5–8 meters wide with one or two lanes.
There is usually a slope going down to B1 level.
The canopy must cover the ramp and gate area to protect vehicles and people.
The developer often wants a clean, modern glass look to match surrounding façades.
A point‑supported glass system using stainless steel spider fittings satisfies both architectural and engineering needs in this context.
2. Riyadh Climate and Design Requirements
Riyadh has a harsh climate: long, very hot summers, extremely strong sunlight, sand and dust storms, and occasional but sometimes intense rain. These local conditions strongly affect how a parking entrance glass canopy should be designed.
2.1 Need for Natural Light
Underground parking areas are naturally dark. If the entrance is covered with a solid concrete slab or metal sheeting, drivers will experience a sudden change from bright desert sunshine into a dark tunnel. This can be uncomfortable and even unsafe.
With a glass canopy supported by stainless steel spider fittings:
Daylight passes through the glass,
the ramp area remains bright and more visible,
drivers have a smoother transition from outside to inside.
This improves safety and comfort for residents and visitors in Riyadh.
2.2 Sun Shading and Rain Protection
Although rainfall in Riyadh is not frequent, heavy showers can occur. At the same time, solar radiation is very strong for most of the year. A parking entrance canopy must:
stop direct rainwater from flowing straight into the ramp,
reduce intense direct sunshine onto the driveway and vehicles,
provide some comfort for pedestrians and drivers when entering and exiting.
Tempered or laminated glass combined with spider fittings can be clear, tinted, or Low‑E coated to achieve both weather protection and solar control.
2.3 Sand and Dust Considerations
Sand and dust storms are another reason why developers look for “مظلة زجاجية لمواقف السيارات” or “مظلات مواقف سيارات زجاج” in Riyadh. A glass canopy:
creates a partial shield for the ramp,
reduces the amount of sand falling directly into the underground entrance,
makes cleaning and maintenance easier than completely open ramps.
When combined with appropriate drainage and cleaning schedules, this significantly improves the day‑to‑day condition of the car park entrance.
An underground parking glass canopy in Riyadh using stainless steel spider fittings is typically made of four major components:
3.1 Steel Structure Frame
The steel beams and columns form the primary load‑bearing frame. Structural engineers design the frame to:
span across the driveway,
support the self‑weight of glass and fittings,
resist wind loads and any maintenance loads,
transfer forces safely to the main building structure.
Connection plates or embedded parts are reserved on the beams so that spider fittings can be fixed precisely at the desired locations.
3.2 Stainless Steel Spider Fittings
Stainless steel spider fittings are the key hardware element. They connect the steel structure to the glass panels at specific points. In this type of canopy and facade work, spider fittings:
are usually made of stainless steel grade 304 or 316,
come in 2‑arm, 3‑arm, 4‑arm or custom configurations,
can be surface‑mounted or bolted to brackets.
For Riyadh and other Saudi Arabia projects, 304 stainless steel can be used for most inland locations. Where higher corrosion resistance is desired, or near coastal cities, 316 stainless steel is recommended.
3.3 Routels (Glass Connectors)
The routel is the connector that passes through the glass and links it to each arm of the spider. It is designed to:
clamp the glass securely without damaging it,
allow small rotations and movements due to wind and temperature changes,
transmit loads from glass to the spider fitting and then to the steel frame.
Correct design and installation of routels are crucial for the long‑term safety of the glass canopy.
3.4 Tempered or Laminated Glass Panels
Glass panels for a parking entrance canopy in Riyadh are usually:
fully tempered laminated glass (e.g., 8+8 mm or 10+10 mm),
sometimes with a Low‑E or solar‑control coating,
cut and drilled in the factory with holes to match the routels.
The thickness and type of glass depend on panel sizes, spans, wind loads, and safety requirements. For Saudi Arabia projects, laminated glass is highly recommended for overhead canopies to provide extra safety if a panel is damaged.
4. Installation Process for an Underground Parking Glass Canopy
While details vary from project to project, the installation of a Riyadh stainless steel spider fittings glass canopy typically follows these steps:

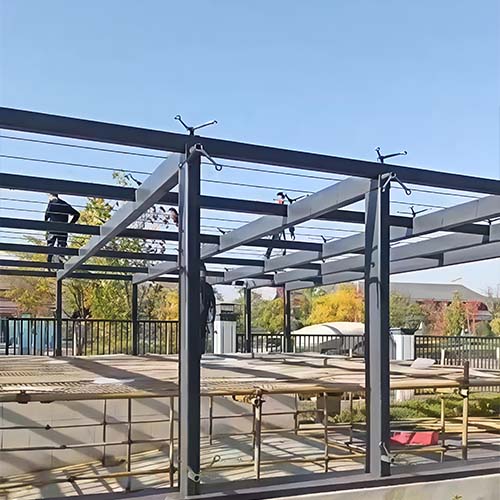

4.1 Survey and Steel Structure Installation
The contractor sets out the positions of columns and beams on site.
Steel members are fabricated and welded/bolted into place.
Protective coatings (galvanizing or paint) are applied as per design.
Connection plates or brackets for spider fittings are checked for position and level.

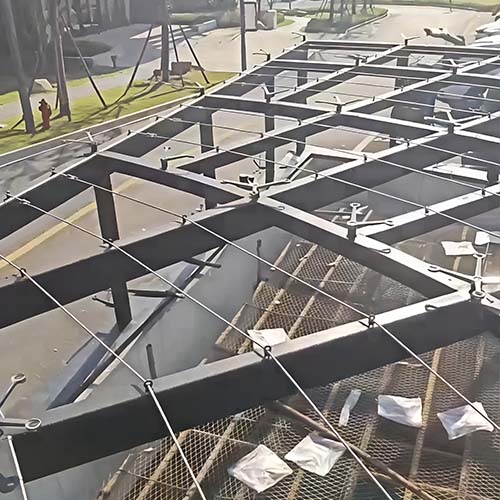

4.2 Fixing the Spider Fittings
Stainless steel spider fittings are fixed to the steel beams or brackets.
Their levels, orientations and spacing are adjusted carefully.
All bolts are tightened to the specified torque.
At this stage, the main “support grid” for the glass is prepared.

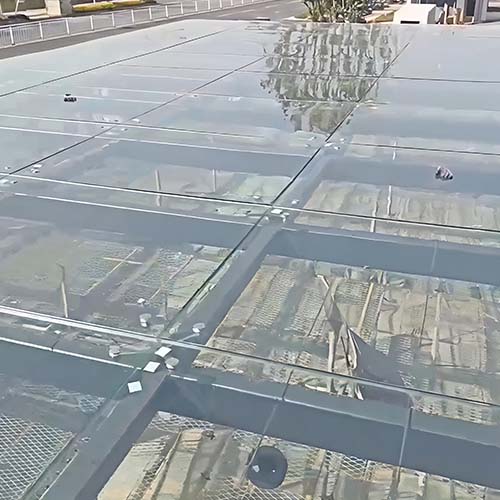

4.3 Glass Installation with Routels
Tempered laminated glass panels arrive on site in crates.
Each panel is lifted by crane or lifting equipment into its final position.
Routels pass through pre‑drilled holes in the glass and connect to the spider arms.
Installers make sure that each corner of the panel is aligned, and that gaps between panels are consistent.
In Riyadh, where daily temperature changes can be large, space for thermal expansion and contraction must be taken into account when setting glass gaps and sealant joints.
4.4 Sealing and Final Adjustments
Weather‑resistant silicone sealant is applied between glass panels.
Edges, joints and drainage paths are checked to prevent leakage during heavy rain.
The whole canopy is inspected for loose fittings, glass damage, or misalignment.
Once completed, the glass surface is cleaned and the area is opened for use.
A correct installation process ensures that the parking entrance canopy will perform reliably for many years in Saudi Arabia conditions.
5. Advantages over Traditional Canopies in Riyadh
Older projects in Riyadh often use solid concrete slabs or simple metal roofing sheets over parking ramps. Compared with these traditional solutions, a glass canopy using stainless steel spider fittings offers several advantages:
Modern Visual Appearance
Glass and stainless steel give a clean and high‑end look. The canopy can visually connect the car park entrance with the main façade. For projects where developers target an international image, this is a strong selling point.
Better Natural Lighting
Instead of a dark tunnel, the ramp is bright and visible. This reduces the need for artificial lighting during daytime and improves safety for drivers entering and exiting the car park.
Ease of Cleaning and Maintenance
Stainless steel spider fittings and smooth glass surfaces are easy to clean. They do not corrode easily under sunlight and dust. If a glass panel is accidentally damaged, it can be replaced individually without dismantling the whole canopy.
Long‑Term Cost Efficiency
While the initial cost may be higher than simple metal roofing, the long service life and lower maintenance requirements of stainless steel and glass can make the system more economical over the full life cycle of the building.
For these reasons, many owners looking for “glass canopy hardware Riyadh” or “stainless steel spider fittings supplier Saudi Arabia” choose spider‑supported glass systems for new projects and renovations.
6. Extended Applications in Saudi Arabia
Stainless steel spider fittings are not only for underground parking glass canopies. In Riyadh and other Saudi cities such as Jeddah and Dammam, they are widely used for:
Main entrance glass canopies for shopping malls and retail centers,
Drop‑off canopies for hotels and office towers,
All‑glass facades and curtain walls (“الرياض واجهات زجاجية”),
Skylights and atriums in commercial and public buildings,
Walkway and corridor canopies between buildings,
High‑end glass car shelters (“مظلات مواقف سيارات زجاج”).
This flexibility means that architects and façade consultants can use a single family of stainless steel spider fittings to design both vertical glass façades and horizontal or sloped canopies across a project.
For contractors and buyers searching for “glass curtain wall hardware Riyadh” or “Saudi Arabia glass canopy hardware”, a complete spider fitting system—including spiders, routels and tension rods—simplifies procurement and technical coordination.
7. Product and Service Advantages for Saudi Arabia Projects
Our stainless steel spider fittings and accessories are designed to support façade and canopy projects throughout Saudi Arabia. Key advantages include:
Wide Range of Types and Sizes
We supply 2‑arm, 3‑arm, 4‑arm and custom stainless steel spider fittings, plus various mounting types (fin mounting, surface mounting, etc.), allowing engineers and designers in Riyadh to match their exact glass layout.
Materials and Finishes for Local Climate
For inland projects such as most of Riyadh, stainless steel 304 is commonly used. For more demanding environments or near the sea, 316 stainless steel is available. Surface finishes include brushed and mirror polish for different aesthetic preferences.
Technical Support and Layout Advice
Based on the client’s architectural drawings, we can suggest spider layouts, glass panel sizes, and typical connection details. This is particularly helpful for contractors and consultants who are using stainless steel spider fittings in Saudi Arabia for the first time.
Export‑Friendly Packaging and Logistics
All fittings are packed in reinforced wooden cases with protective materials, suitable for sea freight to Saudi Arabia and overland transport to Riyadh and other cities, minimizing damage during transit.
8. How to Start Your Riyadh Underground Parking Glass Canopy Project
If you are planning a new project or renovation in Riyadh and want to use stainless steel spider fittings on an underground parking glass canopy, you can follow these steps:
Define Project Requirements
Width and length of the parking ramp,
Required clear height for vehicles,
Desired canopy coverage area and appearance.
Coordinate with Structural Engineers
Design the steel frame to support glass loads and wind forces,
Reserve proper positions for mounting spider fittings.
Select Glass Type and Performance
Decide on thickness and lamination,
Consider Low‑E or tinted glass to manage heat gain and glare.
Choose Spider Fittings and Accessories
Select suitable stainless steel spider fittings and routels,
Confirm materials (304/316) and surface finish.
Finalize Fabrication and Installation Plan
Prepare shop drawings for steel, glass and hardware,
Schedule fabrication, shipping and on‑site installation.
By following these steps, owners, contractors and façade consultants can efficiently realize a high‑quality “underground parking glass canopy Riyadh” project.
9. Conclusion and Further Information
In a fast‑developing city like Riyadh, underground parking entrances are no longer hidden back‑of‑house areas. They are an important part of the overall building experience. Using stainless steel spider fittings for glass canopies and façades allows designers to combine:
safety and structural reliability,
excellent natural lighting and weather protection,
a modern and elegant appearance suitable for Saudi Arabia’s leading developments.
To learn more about our stainless steel spider fittings, models and technical data, please visit:
https://www.stainlesssteelhardwares.com/spider-fittings.html
To see a real project installation—how the steel frame, spider fittings and glass work together—watch our video:
https://www.youtube.com/shorts/fD3A9vUW3PI
