The Pinnacle of Biomechanical Design: The BD4 Tapered Single Plate Glass Railing Post System
Summary:The BD4 Tapered Single Plate Glass Railing Post is a heavy-duty architectural stanchion featuring a unique variable-cross-section profile (wider base, tapered upper body) and an ergonomic gooseneck top support. Manufactured from 304 or 316L stainless steel with a standard height of 1050mm, it supports Ø50.8mm top rails. Designed to integrate with both point-fixed spider fittings (T-Series) and ribbed standoffs (LT-Series), the BD4 offers exceptional bending moment resistance. Ideal for coastal zones, extreme wind-load balconies, and luxury commercial projects requiring structural superiority.
Why Choose the Tapered Single Plate Glass Railing Post BD4? (Key Features & Benefits)
When architects demand a frameless glass balustrade system that refuses to compromise on either structural integrity or visual intrigue, the Tapered Single Plate Glass Railing Post BD4 emerges as the definitive solution. Moving beyond the conventional straight tubular or flat bar designs, the BD4 is a masterpiece of metallurgical engineering. Here is why global B2B procurement managers and high-end developers select this system.
1. Revolutionary "Tapered" Geometric Strength
Unlike standard straight posts that maintain uniform width from top to bottom, the BD4 utilizes a highly engineered variable-cross-section design. The lower region (the base) is significantly widened, gracefully tapering as it rises. This is not merely an aesthetic choice; it is a structural imperative. In any cantilevered barrier system, the maximum bending moment occurs at the base. By concentrating the mass of the solid stainless steel plate at the bottom, this tapered single plate glass railing post achieves extraordinary yield strength while keeping the upper viewing area light and unobstructed.
2. Ergonomic "Gooseneck" Top Support
The apex of the BD4 features a distinctive, elegantly curved "gooseneck" support arm. Rather than terminating in a blunt vertical clamp, this outward-sweeping curve offsets the Ø50.8mm stainless steel handrail. This thoughtful design prevents the handrail from physically interfering with the top edge of the thick glass panels. Furthermore, it shifts the center of gravity outward, providing a more comfortable and secure gripping position for users leaning against the balcony.
3. Ultimate Modular Accessory Integration
The BD4 is not a rigid, single-use stanchion; it is a versatile load-bearing platform. We manufacture dedicated Left (L), Middle (M), and Right (R) terminal configurations. Buyers can customize their installations by equipping the post with traditional D-shaped glass clamps, high-tech point-fixed spider fittings (T01-T10 series), or architecturally aggressive ribbed spider standoffs (LT01-LT09 series). This versatility allows the tapered single plate glass railing post to adapt to any complex architectural blueprint.
4. 316L Marine-Grade Resilience
Designed for the harshest global environments, we highly recommend the SUS316L marine-grade variant of the BD4. Fortified with molybdenum, 316L stainless steel provides near-invulnerability to pitting corrosion caused by coastal salt spray, de-icing salts, and industrial acid rain. Finished with our premium satin brushing, the post diffuses harsh sunlight, masks micro-scratches, and demands minimal long-term maintenance.
Comprehensive Technical Specifications
To ensure structural engineers and B2B contractors have the exact data required for CAD drafting and load calculations, below are the technical specifications for the BD4 Tapered Single Plate Glass Railing Post:
Core Specification Technical Parameters (BD4 Series)
Hardware Model Tapered Single Plate Glass Railing Post - BD4
Material Grades SUS 304 / Marine Grade SUS 316L
Surface Treatment Architectural Satin / Brushed Matte Finish

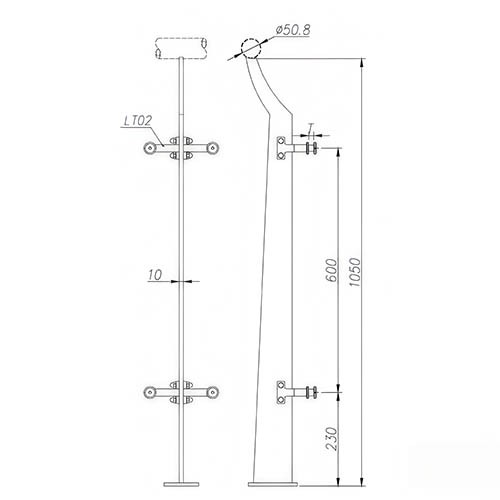

Standard Overall Height 1050 mm (Measured to handrail centerline)
Top Saddle Compatibility Engineered for Ø 50.8 mm tubing (Offset Gooseneck)
Structural Profile Widened bottom reinforcement (230mm span), Upper taper span (600mm)
System Modularity L (Left Terminus), M (Middle Continuous), R (Right Terminus)

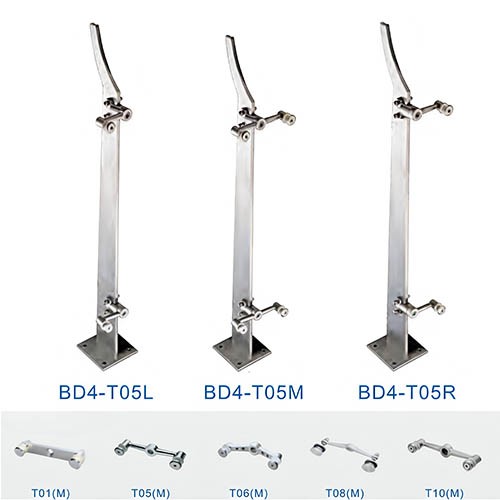

Point-Fixed Spiders Compatible with T01(M), T05(M), T06(M), T08(M), T10(M)

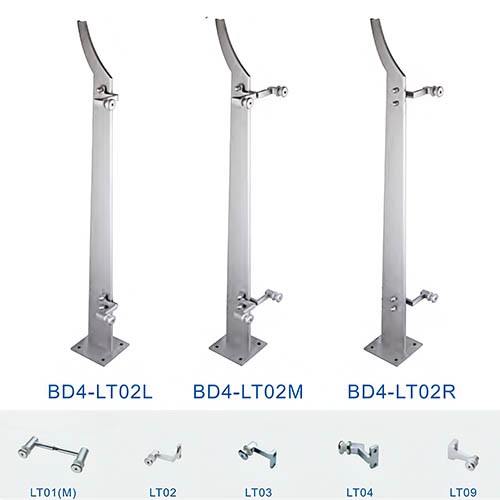

Ribbed Spider Fittings Compatible with LT01(M), LT02, LT03, LT04, LT09
How It Works & Engineering Excellence
From the perspective of advanced structural engineering, a balcony railing is essentially a vertical cantilever beam. When hurricane-force winds or dense crowds apply lateral force against the glass panels, the Tapered Single Plate Glass Railing Post BD4 manages that kinetic energy with unparalleled efficiency.
In a standard straight post, to ensure the base doesn't buckle, the entire post must be made exceptionally thick, leading to material waste and a bulky appearance at the top. The BD4's tapered geometry (widened at the base, narrow at the top) aligns perfectly with the physics of bending moments. By placing the maximum width of the solid stainless steel flat bar at the fulcrum (the bottom 230mm), we dramatically increase the post's section modulus. This means it can resist extreme shear stress and lateral wind loads without permanent deflection.
Furthermore, the kinetic impact on the glass is buffered by the flexible EPDM gaskets housed within the T-Series or LT-Series spider fittings, transferring a softened load to the steel structure. To fully realize the load-bearing capacity of this system, anchoring must be flawless. We advise structural engineers to adhere strictly to Structural Engineering best practices, utilizing heavy-duty chemical anchors embedded deep into reinforced concrete slabs.
Global Applications & Environmental Adaptability
Because of its superior biomechanical shape and metallurgical purity, the BD4 Tapered Single Plate Glass Railing Post is deployed in some of the most demanding and unique architectural zones globally:
Valparaíso, Chile (Seismic Coastal Zones): Built on steep hills facing the Pacific, Valparaíso experiences frequent earthquakes and salty sea fog. The widened base of the BD4 lowers the center of gravity, providing greater stability during seismic tremors compared to top-heavy round posts. The 316L alloy easily repels the aggressive oceanic chloride attack.
Casablanca, Morocco (High Humidity & Salinity): For luxury coastal resorts along the Atlantic, hardware must endure relentless salt spray and humidity. The BD4's 316L satin finish prevents the dreaded "tea staining" rust. Furthermore, its elegant gooseneck design complements the sweeping, Moorish-inspired curves of modern North African architecture.
Installation Overview & Maintenance Guide
Ensuring decades of flawless performance requires precision during installation and a commitment to basic, routine care.
B2B Engineering & Installation Guidelines
Substrate Integrity: The concrete slab must be a minimum of 150mm thick. For cantilevered balconies, ensure anchor bolts do not strike internal rebar tension cables.
True Vertical Alignment: Because the sides of the BD4 are angled (tapered), you cannot use a spirit level on the side edge. Laser levels must be projected onto the front or back absolute vertical faces to ensure the post stands perfectly straight.
Post-Construction Cleaning: Immediately wash away any cement dust, mortar splatter, or construction adhesive using warm water and mild soap.
Directional Wiping: When cleaning the post, always wipe parallel to the satin brushed grain. Wiping across the grain will cause permanent micro-scratching and ruin the aesthetic.
Q1: (From a building materials distributor in Mombasa, Kenya) Our coastal air is incredibly humid, hot, and salty. Local builders usually search for "Stainless steel glass standoff posts". Will the 316L BD4 rust here? And what is the lead time to East Africa?
Answer: Mombasa's tropical marine climate is highly corrosive. However, when you specify the BD4 Tapered Single Plate Glass Railing Post in our 316L marine-grade alloy, the added molybdenum provides excellent resistance against chloride pitting. It will not suffer structural rust, provided it is rinsed with fresh water quarterly to remove salt buildup. For B2B orders, factory production takes about 20 days, and ocean freight to the Port of Mombasa typically takes 25-30 days.
Q2: (From a high-rise architect in Bogotá, Colombia) Bogotá is at a high altitude with intense UV radiation and heavy rain. Will the rubber gaskets inside the spider fittings degrade and crack over time?
Answer: That is a crucial engineering concern. To combat the intense UV exposure at high altitudes like Bogotá, the gaskets supplied with our BD4 post fittings (such as the T05/T06 series) are manufactured from premium UV-resistant EPDM (Ethylene Propylene Diene Monomer) rubber, not cheap silicone or PVC. EPDM is virtually immune to ozone and UV degradation, ensuring it remains flexible and crack-free for over a decade despite the rain-sun cycles.
Q3: (From a commercial contractor in Bursa, Turkey) Bursa is a heavy industrial city located near fault lines. With industrial vibrations and minor seismic activity, will the bolts on this tapered post shake loose?
Answer: For industrial environments, the 316L satin finish excels against acidic smog. Regarding seismic and mechanical vibrations, we mandate a specific installation protocol: you must apply an aerospace-grade anaerobic thread-locking adhesive (like Loctite) to all mechanical fasteners, especially where the T01-T10 spider fittings attach to the post. Once cured, this completely prevents the bolts from backing out due to micro-harmonic vibrations from earthquakes or heavy truck traffic.
Q4: (From a luxury villa owner in Cebu City, Philippines) We experience severe typhoons multiple times a year. Is this widened-base post genuinely stronger against wind loads than a standard round post?
Answer: Absolutely. When a typhoon pushes against your glass balcony, the highest point of stress (the bending moment) is where the post meets the floor. The BD4 utilizes a variable-cross-section design, widening to 230mm at the base. This drastically increases the cross-sectional area and section modulus exactly where the stress is highest. Compared to a standard tubular post of the same thickness, the BD4 offers vastly superior resistance to bending during typhoon-force wind gusts.
Q5: (From a heritage restoration engineer in Krakow, Poland) We are renovating a historic building, and winters drop to -20°C. Because of the old stone masonry, can the angle of the gooseneck top be customized to clear the existing ledge?
Answer: First, rest assured that our 304/316L stainless steel retains its austenitic toughness in Krakow's freezing temperatures; it will never become brittle. Secondly, because we operate our own CNC and forming facilities, we can absolutely accommodate B2B custom modifications. If you need the BD4's "gooseneck" curve extended or angled differently to bypass historic stone moldings, simply provide your CAD drawings, and we will manufacture a customized batch for your project.
Summary:The BD4 Tapered Single Plate Glass Railing Post is a heavy-duty architectural stanchion featuring a unique variable-cross-section profile (wider base, tapered upper body) and an ergonomic gooseneck top support. Manufactured from 304 or 316L stainless steel with a standard height of 1050mm, it supports Ø50.8mm top rails. Designed to integrate with both point-fixed spider fittings (T-Series) and ribbed standoffs (LT-Series), the BD4 offers exceptional bending moment resistance. Ideal for coastal zones, extreme wind-load balconies, and luxury commercial projects requiring structural superiority.
Why Choose the Tapered Single Plate Glass Railing Post BD4? (Key Features & Benefits)
When architects demand a frameless glass balustrade system that refuses to compromise on either structural integrity or visual intrigue, the Tapered Single Plate Glass Railing Post BD4 emerges as the definitive solution. Moving beyond the conventional straight tubular or flat bar designs, the BD4 is a masterpiece of metallurgical engineering. Here is why global B2B procurement managers and high-end developers select this system.
1. Revolutionary "Tapered" Geometric Strength
Unlike standard straight posts that maintain uniform width from top to bottom, the BD4 utilizes a highly engineered variable-cross-section design. The lower region (the base) is significantly widened, gracefully tapering as it rises. This is not merely an aesthetic choice; it is a structural imperative. In any cantilevered barrier system, the maximum bending moment occurs at the base. By concentrating the mass of the solid stainless steel plate at the bottom, this tapered single plate glass railing post achieves extraordinary yield strength while keeping the upper viewing area light and unobstructed.
2. Ergonomic "Gooseneck" Top Support
The apex of the BD4 features a distinctive, elegantly curved "gooseneck" support arm. Rather than terminating in a blunt vertical clamp, this outward-sweeping curve offsets the Ø50.8mm stainless steel handrail. This thoughtful design prevents the handrail from physically interfering with the top edge of the thick glass panels. Furthermore, it shifts the center of gravity outward, providing a more comfortable and secure gripping position for users leaning against the balcony.
3. Ultimate Modular Accessory Integration
The BD4 is not a rigid, single-use stanchion; it is a versatile load-bearing platform. We manufacture dedicated Left (L), Middle (M), and Right (R) terminal configurations. Buyers can customize their installations by equipping the post with traditional D-shaped glass clamps, high-tech point-fixed spider fittings (T01-T10 series), or architecturally aggressive ribbed spider standoffs (LT01-LT09 series). This versatility allows the tapered single plate glass railing post to adapt to any complex architectural blueprint.
4. 316L Marine-Grade Resilience
Designed for the harshest global environments, we highly recommend the SUS316L marine-grade variant of the BD4. Fortified with molybdenum, 316L stainless steel provides near-invulnerability to pitting corrosion caused by coastal salt spray, de-icing salts, and industrial acid rain. Finished with our premium satin brushing, the post diffuses harsh sunlight, masks micro-scratches, and demands minimal long-term maintenance.
Comprehensive Technical Specifications
To ensure structural engineers and B2B contractors have the exact data required for CAD drafting and load calculations, below are the technical specifications for the BD4 Tapered Single Plate Glass Railing Post:
Core Specification Technical Parameters (BD4 Series)
Hardware Model Tapered Single Plate Glass Railing Post - BD4
Material Grades SUS 304 / Marine Grade SUS 316L
Surface Treatment Architectural Satin / Brushed Matte Finish
Standard Overall Height 1050 mm (Measured to handrail centerline)
Top Saddle Compatibility Engineered for Ø 50.8 mm tubing (Offset Gooseneck)
Structural Profile Widened bottom reinforcement (230mm span), Upper taper span (600mm)
System Modularity L (Left Terminus), M (Middle Continuous), R (Right Terminus)
Point-Fixed Spiders Compatible with T01(M), T05(M), T06(M), T08(M), T10(M)
Ribbed Spider Fittings Compatible with LT01(M), LT02, LT03, LT04, LT09

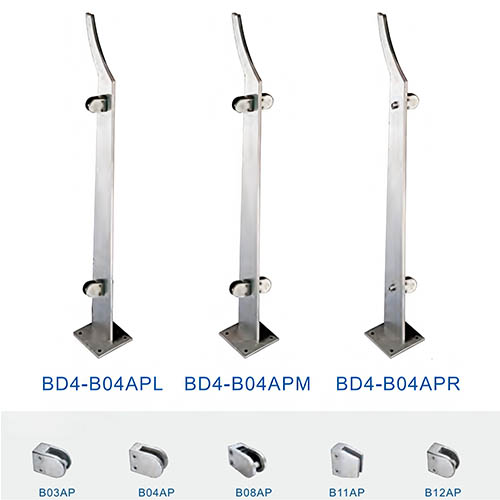

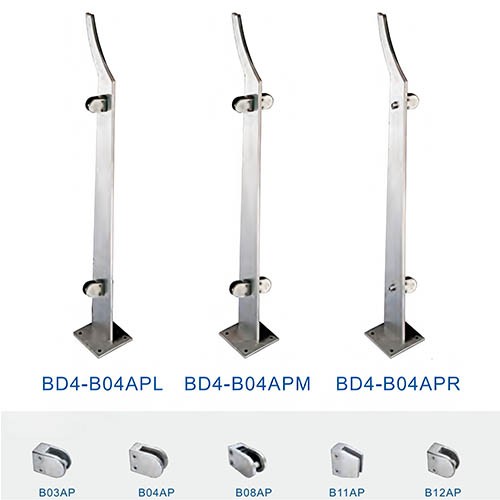

Glass Clamp Compatibility Pre-drilled for standard square/D-shaped heavy-duty clamps
How It Works & Engineering Excellence
From the perspective of advanced structural engineering, a balcony railing is essentially a vertical cantilever beam. When hurricane-force winds or dense crowds apply lateral force against the glass panels, the Tapered Single Plate Glass Railing Post BD4 manages that kinetic energy with unparalleled efficiency.
In a standard straight post, to ensure the base doesn't buckle, the entire post must be made exceptionally thick, leading to material waste and a bulky appearance at the top. The BD4's tapered geometry (widened at the base, narrow at the top) aligns perfectly with the physics of bending moments. By placing the maximum width of the solid stainless steel flat bar at the fulcrum (the bottom 230mm), we dramatically increase the post's section modulus. This means it can resist extreme shear stress and lateral wind loads without permanent deflection.
Furthermore, the kinetic impact on the glass is buffered by the flexible EPDM gaskets housed within the T-Series or LT-Series spider fittings, transferring a softened load to the steel structure. To fully realize the load-bearing capacity of this system, anchoring must be flawless. We advise structural engineers to adhere strictly to Structural Engineering best practices, utilizing heavy-duty chemical anchors embedded deep into reinforced concrete slabs.
Global Applications & Environmental Adaptability
Because of its superior biomechanical shape and metallurgical purity, the BD4 Tapered Single Plate Glass Railing Post is deployed in some of the most demanding and unique architectural zones globally:
Valparaíso, Chile (Seismic Coastal Zones): Built on steep hills facing the Pacific, Valparaíso experiences frequent earthquakes and salty sea fog. The widened base of the BD4 lowers the center of gravity, providing greater stability during seismic tremors compared to top-heavy round posts. The 316L alloy easily repels the aggressive oceanic chloride attack.
Casablanca, Morocco (High Humidity & Salinity): For luxury coastal resorts along the Atlantic, hardware must endure relentless salt spray and humidity. The BD4's 316L satin finish prevents the dreaded "tea staining" rust. Furthermore, its elegant gooseneck design complements the sweeping, Moorish-inspired curves of modern North African architecture.
Vladivostok, Russia (Sub-Zero Blizzards & Ports): In the Russian Far East, winter brings brutal blizzards and temperatures far below freezing. Inferior carbon steels become brittle and snap. The austenitic structure of our 304/316L stainless steel ensures the BD4 retains its impact toughness in extreme cold. The widened base easily withstands the immense static pressure of accumulated snowdrifts pressing against the glass.
Installation Overview & Maintenance Guide
Ensuring decades of flawless performance requires precision during installation and a commitment to basic, routine care.
B2B Engineering & Installation Guidelines
Substrate Integrity: The concrete slab must be a minimum of 150mm thick. For cantilevered balconies, ensure anchor bolts do not strike internal rebar tension cables.
True Vertical Alignment: Because the sides of the BD4 are angled (tapered), you cannot use a spirit level on the side edge. Laser levels must be projected onto the front or back absolute vertical faces to ensure the post stands perfectly straight.
Isolation Protocol: When mounting the spider fittings or glass clamps, the factory-supplied EPDM gaskets must be used. Direct metal-to-glass contact will cause immediate stress fractures in tempered glass.
Post-Construction Cleaning: Immediately wash away any cement dust, mortar splatter, or construction adhesive using warm water and mild soap.
Directional Wiping: When cleaning the post, always wipe parallel to the satin brushed grain. Wiping across the grain will cause permanent micro-scratching and ruin the aesthetic.
Iron Contamination Removal: If orange/brown spots appear, this is usually "flash rust" caused by airborne carbon steel dust from nearby angle grinders. Treat immediately with a 10% nitric acid solution or a commercial stainless steel cleaner, then rinse generously with cold, clean water.
Q1: (From a building materials distributor in Mombasa, Kenya) Our coastal air is incredibly humid, hot, and salty. Local builders usually search for "Stainless steel glass standoff posts". Will the 316L BD4 rust here? And what is the lead time to East Africa?
Answer: Mombasa's tropical marine climate is highly corrosive. However, when you specify the BD4 Tapered Single Plate Glass Railing Post in our 316L marine-grade alloy, the added molybdenum provides excellent resistance against chloride pitting. It will not suffer structural rust, provided it is rinsed with fresh water quarterly to remove salt buildup. For B2B orders, factory production takes about 20 days, and ocean freight to the Port of Mombasa typically takes 25-30 days.
Q2: (From a high-rise architect in Bogotá, Colombia) Bogotá is at a high altitude with intense UV radiation and heavy rain. Will the rubber gaskets inside the spider fittings degrade and crack over time?
Answer: That is a crucial engineering concern. To combat the intense UV exposure at high altitudes like Bogotá, the gaskets supplied with our BD4 post fittings (such as the T05/T06 series) are manufactured from premium UV-resistant EPDM (Ethylene Propylene Diene Monomer) rubber, not cheap silicone or PVC. EPDM is virtually immune to ozone and UV degradation, ensuring it remains flexible and crack-free for over a decade despite the rain-sun cycles.
Q3: (From a commercial contractor in Bursa, Turkey) Bursa is a heavy industrial city located near fault lines. With industrial vibrations and minor seismic activity, will the bolts on this tapered post shake loose?
Answer: For industrial environments, the 316L satin finish excels against acidic smog. Regarding seismic and mechanical vibrations, we mandate a specific installation protocol: you must apply an aerospace-grade anaerobic thread-locking adhesive (like Loctite) to all mechanical fasteners, especially where the T01-T10 spider fittings attach to the post. Once cured, this completely prevents the bolts from backing out due to micro-harmonic vibrations from earthquakes or heavy truck traffic.
Q4: (From a luxury villa owner in Cebu City, Philippines) We experience severe typhoons multiple times a year. Is this widened-base post genuinely stronger against wind loads than a standard round post?
Answer: Absolutely. When a typhoon pushes against your glass balcony, the highest point of stress (the bending moment) is where the post meets the floor. The BD4 utilizes a variable-cross-section design, widening to 230mm at the base. This drastically increases the cross-sectional area and section modulus exactly where the stress is highest. Compared to a standard tubular post of the same thickness, the BD4 offers vastly superior resistance to bending during typhoon-force wind gusts.
Q5: (From a heritage restoration engineer in Krakow, Poland) We are renovating a historic building, and winters drop to -20°C. Because of the old stone masonry, can the angle of the gooseneck top be customized to clear the existing ledge?
Answer: First, rest assured that our 304/316L stainless steel retains its austenitic toughness in Krakow's freezing temperatures; it will never become brittle. Secondly, because we operate our own CNC and forming facilities, we can absolutely accommodate B2B custom modifications. If you need the BD4's "gooseneck" curve extended or angled differently to bypass historic stone moldings, simply provide your CAD drawings, and we will manufacture a customized batch for your project.
