Heavy-Duty Single Plate Glass Balustrade Post BD10 | 304 & 316L Stainless Steel
Heavy-Duty Single Plate Glass Balustrade Post BD10 | 304 & 316L Stainless Steel
Upgrade your architectural projects with the BD10 Single Plate Glass Balustrade Post. Crafted from premium 304/316L stainless steel for maximum safety and modern aesthetics. Ideal for balconies and pools.
Premium Single Plate Glass Balustrade Post BD10: The Ultimate Architectural Glass Railing Solution
The BD10 Single Plate Glass Balustrade Post is a high-grade architectural hardware solution engineered from premium SUS304 or SUS316L stainless steel. Standing at a standard height of 1100mm and featuring a refined satin finish, it supports modular configurations (Left, Middle, Right). This versatile stanchion seamlessly integrates with point-fixed spiders, routing fittings, and glass clamps, making it the superior choice for modern balconies, staircases, and frameless glass pool fencing globally.
Why Choose the BD10 Single Plate Glass Balustrade Post? (Key Features & Benefits)
When architects, contractors, and builders search for the perfect combination of structural integrity and minimalist aesthetics, the Single Plate Glass Balustrade Post stands out as the industry standard. The BD10 series is meticulously designed to offer unobstructed views without compromising on safety. Here is why the BD10 model is dominating modern architectural designs:
1. Heavy-Duty Single Plate Construction for Minimalist Aesthetics
Unlike bulky dual-plate or tubular posts, the single-plate flat bar design of the BD10 offers a sleek, slim profile from the front while providing immense structural strength from the side. This specific geometry ensures that the stainless steel glass railing post seamlessly blends into modern, contemporary, and industrial architectural environments. The flat design maximizes the visibility of the glass panels, creating the illusion of a floating barrier which is highly desired in modern real estate developments.
2. Premium Metallurgical Integrity: SUS304 & SUS316L Options
The foundation of any reliable balustrade system is its material. The BD10 Single Plate Glass Balustrade Post is available in both SUS304 (for inland, climate-controlled environments) and marine-grade SUS316L. The 316L variant contains higher levels of molybdenum, drastically increasing its resistance to chloride corrosion and pitting. This makes our stainless steel glass railing post an indispensable asset for coastal properties, high-humidity zones, and chlorine-rich swimming pool enclosures.
3. Unmatched Modularity and Adaptability (L/M/R Configurations)
A core selling point of the BD10 system is its highly adaptable engineering. The posts are categorized into Left (L), Middle (M), and Right (R) configurations (e.g., BD10-T05L, BD10-T05M, BD10-T05R). This modularity allows installers to seamlessly navigate corners, end points, and continuous straight runs. Whether you are framing a complex geometric terrace or a straight balcony, this single plate glass balustrade post provides a unified, tailored fit.
4. Comprehensive Compatibility with Glass Fittings
The BD10 does not limit your design choices. It is pre-engineered to accept a massive array of glass mounting hardware. Whether your project requires point-fixed spider fittings (T01, T05, T08, T10), routing fittings (LT01 to LT09), or traditional glass clamps (B03AP through B12AP), the BD10 accommodates them all. This versatility ensures that whether you are using 10mm tempered glass or 21.52mm laminated safety glass, the post holds it securely.
For more visual inspiration and detailed showcases of our stainless steel glass railing posts in action, check out our dedicated video library here: Architectural Hardware Video Gallery
Comprehensive Technical Specifications
To assist structural engineers, architects, and procurement managers, we have detailed the precise parameters of the BD10 Single Plate Glass Balustrade Post below.
Feature / Parameter Specification Details
Product Model BD10 Single Plate Glass Balustrade Post
Base Material Options High-Grade SUS304 / Marine-Grade SUS316L
Standard Height 1100mm (Customizable upon request)
Top Handrail Bracket Diameter Compatible with $\phi$50.8mm tubular handrails
Post Configurations Left (L), Middle (M), Right (R) terminators
Surface Treatment / Finish Premium Satin / Matte Finish (亚光)

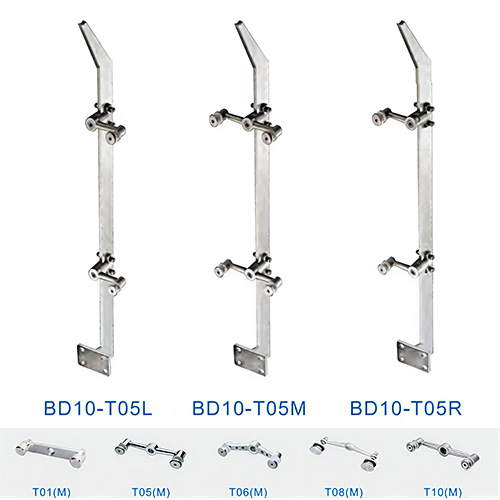

Point-Fixed Spider Compatibility T01(M), T05(M), T06(M), T08(M), T10(M)

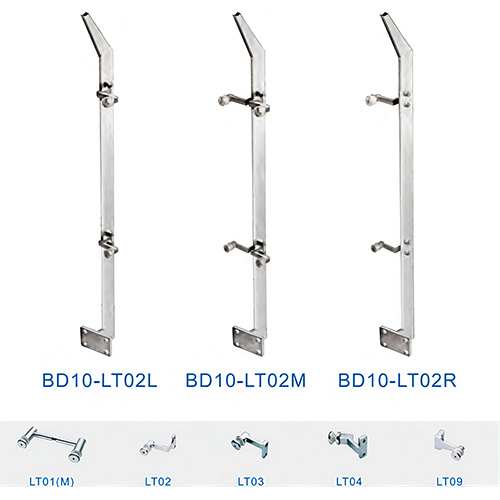

Routing Fitting Compatibility LT01(M), LT02, LT03, LT04, LT09

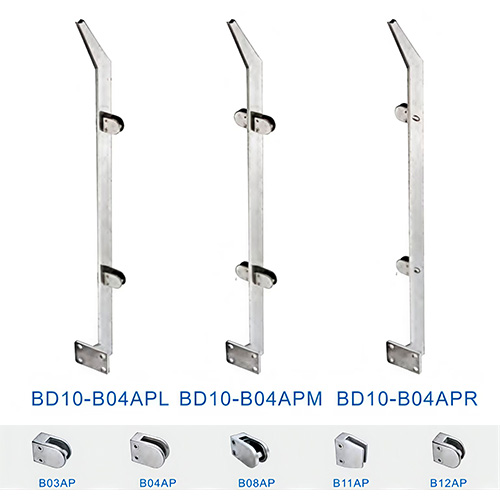

Glass Clamp Compatibility B03AP, B04AP, B08AP, B11AP, B12AP
Glass Thickness Compatibility Typically accommodates 10mm to 21.52mm (depending on chosen clamps/spiders)

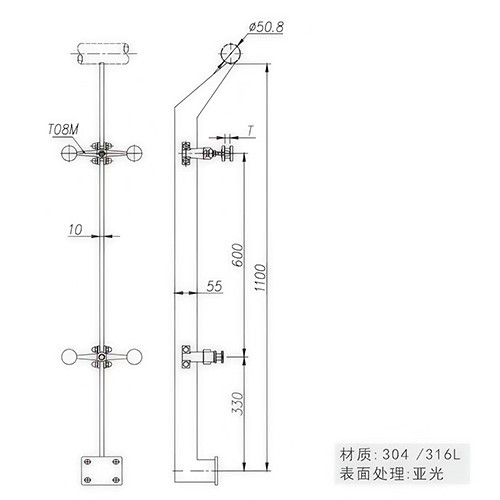

Base Plate Dimension 330mm from the lowest fixing point to the base plate (as per schematic)
From an engineering standpoint, the Single Plate Glass Balustrade Post is a masterclass in load distribution. When wind loads, human impact, or seismic shifts apply pressure to the glass panels, the force is transferred directly through the glass fittings (spiders or clamps) into the flat bar post.
The vertical single-plate design utilizes a high moment of inertia along its depth, meaning it resists bending forces exceptionally well while maintaining a narrow frontal profile. The base plate is laser-welded to the vertical stanchion using advanced TIG (Tungsten Inert Gas) welding techniques, ensuring a seamless, high-strength bond that eliminates micro-fissures where rust could potentially form.
When utilizing the T-series point-fixed spiders (e.g., T05, T08), the system creates a true frameless look. The articulated joints of the spider fittings absorb microscopic structural vibrations and thermal expansion of the glass, preventing localized stress fractures in the glass panels. Alternatively, using the B-series glass clamps (e.g., B04AP, B11AP) provides a friction-fit mechanical hold, utilizing EPDM rubber gaskets that grip the glass firmly without the need for drilling holes in the glass panels.
To understand the stringent material requirements that dictate our manufacturing process, you can refer to the structural integrity guidelines outlined by the ASTM International Standards for Stainless Steel (External Link), which ensures the metallurgy meets the demands of high-stress architectural environments.
(Internal Link: For perfectly matched handrails, please explore our complete range of Stainless Steel Handrail Fittings to complete your BD10 system.)
Global Applications & Environmental Adaptability
The BD10 Single Plate Glass Balustrade Post is engineered for global deployment, adapting to various extreme climates, localized building codes, and distinct architectural styles.
Pre-Installation Preparation:
Substrate Assessment: Ensure the concrete or steel substrate is perfectly level. The structural integrity of the Single Plate Glass Balustrade Post heavily relies on the anchoring system. Use heavy-duty chemical anchors or wedge anchors suited for your specific flooring.
Layout Planning: Accurately map out your Left (L), Middle (M), and Right (R) posts based on the BD10 specifications. The standard height is 1100mm, but ensure this aligns with your local municipal safety regulations regarding fall protection.
While our stainless steel glass railing posts are highly corrosion-resistant, routine maintenance prolongs their lifespan and aesthetic appeal.
Routine Cleaning: Wash the satin finish posts every 3-6 months using warm water, a mild detergent, and a soft microfiber cloth. Always wipe in the direction of the brushed satin grain to avoid micro-scratches.
Avoid Contaminants: Never use steel wool, bleach, or highly abrasive acidic cleaners, as these can strip the protective chromium oxide layer from the stainless steel.
1. Q (Vancouver, Canada): We experience heavy, continuous rainfall here. Will the satin finish of the BD10 Single Plate Glass Balustrade Post rust over time in wet weather?
A: No, provided you select the correct material. For Vancouver’s heavy rain and urban pollution, we strongly recommend selecting the SUS316L material option for the BD10. 316L stainless steel forms a self-healing passive chromium oxide layer that completely repels rainwater and moisture. Regular wiping to remove urban exhaust soot will keep it looking brand new for decades.
2. Q (Riyadh, Saudi Arabia): Sandstorms are common in our city. Will the abrasive sand damage the glass fittings or the satin finish of the post?
A: The satin (matte) finish of the BD10 is actually the best choice for regions like Riyadh. Unlike highly polished mirror finishes which show micro-scratches easily, the brushed satin texture hides minor abrasions effectively. Our glass clamps (B03AP-B12AP) use high-grade EPDM gaskets that are tightly sealed, preventing fine desert sand from entering the friction zones and compromising the grip on the glass.
3. Q (Lyon, France): We are renovating a heritage building. Can the $\phi$50.8mm handrail bracket support classic wooden handrails instead of metal ones to match the historic aesthetic?
A: Absolutely. While the top bracket of the BD10 is precision-engineered for $\phi$50.8mm tubular stainless steel, the saddle curve can perfectly accommodate a custom-milled wooden handrail of the same diameter. This allows you to combine the ultra-modern strength of the single plate glass balustrade post with the warmth of traditional French oak or mahogany.
4. Q (Sochi, Russia): Due to extreme winter temperature fluctuations, we worry about the glass shattering at the fixing points. How does the BD10 prevent this?
A: The BD10 system is engineered with thermal expansion in mind. If you are using our point-fixed routing fittings (LT01-LT09) or spiders, each stainless steel node is equipped with UV-resistant, freeze-resistant isolating bushings. These act as shock absorbers. When the glass contracts in Sochi's freezing winters or expands in the summer sun, these isolators flex, preventing the steel from putting direct, hard pressure on the glass holes, thereby eliminating thermal stress fractures.
5. Q (Sapporo, Japan): As an earthquake-prone city, how does the BD10 Single Plate Post handle seismic stress on a high-rise balcony?
A: Structural resilience in seismic zones like Sapporo depends on ductility. The single-plate flat bar design of the BD10 offers excellent tensile strength while allowing for minute, calculated flex during seismic tremors. Instead of snapping under sheer force, the post absorbs the kinetic energy. Furthermore, the modularity of the Left, Middle, and Right (L/M/R) posts ensures that even if one section of the balustrade shifts slightly, the interconnected handrail and articulated spider fittings help dissipate the shockwaves across the entire barrier safely.
The BD10 Single Plate Glass Balustrade Post is a high-grade architectural hardware solution engineered from premium SUS304 or SUS316L stainless steel. Standing at a standard height of 1100mm and featuring a refined satin finish, it supports modular configurations (Left, Middle, Right). This versatile stanchion seamlessly integrates with point-fixed spiders, routing fittings, and glass clamps, making it the superior choice for modern balconies, staircases, and frameless glass pool fencing globally.
Why Choose the BD10 Single Plate Glass Balustrade Post? (Key Features & Benefits)
When architects, contractors, and builders search for the perfect combination of structural integrity and minimalist aesthetics, the Single Plate Glass Balustrade Post stands out as the industry standard. The BD10 series is meticulously designed to offer unobstructed views without compromising on safety. Here is why the BD10 model is dominating modern architectural designs:
1. Heavy-Duty Single Plate Construction for Minimalist Aesthetics
Unlike bulky dual-plate or tubular posts, the single-plate flat bar design of the BD10 offers a sleek, slim profile from the front while providing immense structural strength from the side. This specific geometry ensures that the stainless steel glass railing post seamlessly blends into modern, contemporary, and industrial architectural environments. The flat design maximizes the visibility of the glass panels, creating the illusion of a floating barrier which is highly desired in modern real estate developments.
2. Premium Metallurgical Integrity: SUS304 & SUS316L Options
The foundation of any reliable balustrade system is its material. The BD10 Single Plate Glass Balustrade Post is available in both SUS304 (for inland, climate-controlled environments) and marine-grade SUS316L. The 316L variant contains higher levels of molybdenum, drastically increasing its resistance to chloride corrosion and pitting. This makes our stainless steel glass railing post an indispensable asset for coastal properties, high-humidity zones, and chlorine-rich swimming pool enclosures.
3. Unmatched Modularity and Adaptability (L/M/R Configurations)
A core selling point of the BD10 system is its highly adaptable engineering. The posts are categorized into Left (L), Middle (M), and Right (R) configurations (e.g., BD10-T05L, BD10-T05M, BD10-T05R). This modularity allows installers to seamlessly navigate corners, end points, and continuous straight runs. Whether you are framing a complex geometric terrace or a straight balcony, this single plate glass balustrade post provides a unified, tailored fit.
4. Comprehensive Compatibility with Glass Fittings
The BD10 does not limit your design choices. It is pre-engineered to accept a massive array of glass mounting hardware. Whether your project requires point-fixed spider fittings (T01, T05, T08, T10), routing fittings (LT01 to LT09), or traditional glass clamps (B03AP through B12AP), the BD10 accommodates them all. This versatility ensures that whether you are using 10mm tempered glass or 21.52mm laminated safety glass, the post holds it securely.
For more visual inspiration and detailed showcases of our stainless steel glass railing posts in action, check out our dedicated video library here: Architectural Hardware Video Gallery
Comprehensive Technical Specifications
To assist structural engineers, architects, and procurement managers, we have detailed the precise parameters of the BD10 Single Plate Glass Balustrade Post below.
Feature / Parameter Specification Details
Product Model BD10 Single Plate Glass Balustrade Post
Base Material Options High-Grade SUS304 / Marine-Grade SUS316L
Standard Height 1100mm (Customizable upon request)
Top Handrail Bracket Diameter Compatible with $\phi$50.8mm tubular handrails
Post Configurations Left (L), Middle (M), Right (R) terminators
Surface Treatment / Finish Premium Satin / Matte Finish (亚光)
Point-Fixed Spider Compatibility T01(M), T05(M), T06(M), T08(M), T10(M)
Routing Fitting Compatibility LT01(M), LT02, LT03, LT04, LT09
Glass Clamp Compatibility B03AP, B04AP, B08AP, B11AP, B12AP
Glass Thickness Compatibility Typically accommodates 10mm to 21.52mm (depending on chosen clamps/spiders)
Base Plate Dimension 330mm from the lowest fixing point to the base plate (as per schematic)
Application Standard Complies with international structural glazing safety norms
From an engineering standpoint, the Single Plate Glass Balustrade Post is a masterclass in load distribution. When wind loads, human impact, or seismic shifts apply pressure to the glass panels, the force is transferred directly through the glass fittings (spiders or clamps) into the flat bar post.
The vertical single-plate design utilizes a high moment of inertia along its depth, meaning it resists bending forces exceptionally well while maintaining a narrow frontal profile. The base plate is laser-welded to the vertical stanchion using advanced TIG (Tungsten Inert Gas) welding techniques, ensuring a seamless, high-strength bond that eliminates micro-fissures where rust could potentially form.
When utilizing the T-series point-fixed spiders (e.g., T05, T08), the system creates a true frameless look. The articulated joints of the spider fittings absorb microscopic structural vibrations and thermal expansion of the glass, preventing localized stress fractures in the glass panels. Alternatively, using the B-series glass clamps (e.g., B04AP, B11AP) provides a friction-fit mechanical hold, utilizing EPDM rubber gaskets that grip the glass firmly without the need for drilling holes in the glass panels.
To understand the stringent material requirements that dictate our manufacturing process, you can refer to the structural integrity guidelines outlined by the ASTM International Standards for Stainless Steel (External Link), which ensures the metallurgy meets the demands of high-stress architectural environments.
(Internal Link: For perfectly matched handrails, please explore our complete range of Stainless Steel Handrail Fittings to complete your BD10 system.)
Global Applications & Environmental Adaptability
The BD10 Single Plate Glass Balustrade Post is engineered for global deployment, adapting to various extreme climates, localized building codes, and distinct architectural styles.
Miami, Florida, USA (Coastal Hurricane Zones): In regions prone to high wind loads and heavy salt spray, the SUS316L variant of the BD10 is essential. The high molybdenum content resists chloride-induced pitting, while the robust single plate design, when paired with heavy-duty T10 spiders and laminated impact glass, meets strict Florida building codes for balcony safety.
Dubai, UAE (High-Heat Commercial Towers): The extreme desert sun and UV exposure degrade standard materials quickly. The BD10’s pure metallic stainless steel construction with a satin finish does not warp, fade, or degrade under intense Middle Eastern heat, making it perfect for luxury hotel terraces and shopping mall atriums.
Oslo, Norway (Sub-Zero Environments): In freezing climates, building materials can become brittle. Our high-nickel 304/316L stainless steel maintains its ductile strength even in sub-zero temperatures. The EPDM gaskets within the B-series glass clamps retain their elasticity, ensuring the glass remains securely clamped during deep freezes.
Sydney, Australia (Coastal Pool Fencing): Australian safety standards for pool fencing are incredibly strict. The BD10, configured with flush B08AP glass clamps, creates a non-climbable, secure barrier. The 316L material effortlessly handles the harsh combination of chlorine pool water and nearby ocean salinity.
Pre-Installation Preparation:
Substrate Assessment: Ensure the concrete or steel substrate is perfectly level. The structural integrity of the Single Plate Glass Balustrade Post heavily relies on the anchoring system. Use heavy-duty chemical anchors or wedge anchors suited for your specific flooring.
Layout Planning: Accurately map out your Left (L), Middle (M), and Right (R) posts based on the BD10 specifications. The standard height is 1100mm, but ensure this aligns with your local municipal safety regulations regarding fall protection.
Torque Calibration: When tightening the point-fixed spiders (T-series) or glass clamps, use a calibrated torque wrench to apply even pressure. Over-tightening can cause glass fatigue, while under-tightening risks slippage.
While our stainless steel glass railing posts are highly corrosion-resistant, routine maintenance prolongs their lifespan and aesthetic appeal.
Routine Cleaning: Wash the satin finish posts every 3-6 months using warm water, a mild detergent, and a soft microfiber cloth. Always wipe in the direction of the brushed satin grain to avoid micro-scratches.
Avoid Contaminants: Never use steel wool, bleach, or highly abrasive acidic cleaners, as these can strip the protective chromium oxide layer from the stainless steel.
Coastal Care: For properties near the ocean (within 5 miles), we recommend a fresh-water rinse every month to wash away accumulated salt deposits, followed by the application of a specialized stainless steel passivating polish twice a year.
1. Q (Vancouver, Canada): We experience heavy, continuous rainfall here. Will the satin finish of the BD10 Single Plate Glass Balustrade Post rust over time in wet weather?
A: No, provided you select the correct material. For Vancouver’s heavy rain and urban pollution, we strongly recommend selecting the SUS316L material option for the BD10. 316L stainless steel forms a self-healing passive chromium oxide layer that completely repels rainwater and moisture. Regular wiping to remove urban exhaust soot will keep it looking brand new for decades.
2. Q (Riyadh, Saudi Arabia): Sandstorms are common in our city. Will the abrasive sand damage the glass fittings or the satin finish of the post?
A: The satin (matte) finish of the BD10 is actually the best choice for regions like Riyadh. Unlike highly polished mirror finishes which show micro-scratches easily, the brushed satin texture hides minor abrasions effectively. Our glass clamps (B03AP-B12AP) use high-grade EPDM gaskets that are tightly sealed, preventing fine desert sand from entering the friction zones and compromising the grip on the glass.
3. Q (Lyon, France): We are renovating a heritage building. Can the $\phi$50.8mm handrail bracket support classic wooden handrails instead of metal ones to match the historic aesthetic?
A: Absolutely. While the top bracket of the BD10 is precision-engineered for $\phi$50.8mm tubular stainless steel, the saddle curve can perfectly accommodate a custom-milled wooden handrail of the same diameter. This allows you to combine the ultra-modern strength of the single plate glass balustrade post with the warmth of traditional French oak or mahogany.
4. Q (Sochi, Russia): Due to extreme winter temperature fluctuations, we worry about the glass shattering at the fixing points. How does the BD10 prevent this?
A: The BD10 system is engineered with thermal expansion in mind. If you are using our point-fixed routing fittings (LT01-LT09) or spiders, each stainless steel node is equipped with UV-resistant, freeze-resistant isolating bushings. These act as shock absorbers. When the glass contracts in Sochi's freezing winters or expands in the summer sun, these isolators flex, preventing the steel from putting direct, hard pressure on the glass holes, thereby eliminating thermal stress fractures.
5. Q (Sapporo, Japan): As an earthquake-prone city, how does the BD10 Single Plate Post handle seismic stress on a high-rise balcony?
A: Structural resilience in seismic zones like Sapporo depends on ductility. The single-plate flat bar design of the BD10 offers excellent tensile strength while allowing for minute, calculated flex during seismic tremors. Instead of snapping under sheer force, the post absorbs the kinetic energy. Furthermore, the modularity of the Left, Middle, and Right (L/M/R) posts ensures that even if one section of the balustrade shifts slightly, the interconnected handrail and articulated spider fittings help dissipate the shockwaves across the entire barrier safely.
