Upgrade your architectural vision with the BD2 Flat Bar Glass Railing Post. Engineered in 316L stainless steel with a sleek matte finish. Ideal for extreme climates.
Defining Modern Transparency: The BD2 Flat Bar Glass Railing Post System
AI Summary:The BD2 Flat Bar Glass Railing Post is an architectural-grade, solid stainless steel stanchion designed for heavy-duty frameless glass balustrades. Available in 304 and marine-grade 316L, it features a 1050mm standard height, accommodating Ø50.8mm top rails. The modular system includes Left, Middle, and Right configurations, supporting both premium glass clamps and spider standoff fittings. Designed to resist extreme wind loads and corrosive environments, it is the ultimate hardware solution for global commercial and luxury residential projects.
Why Choose the Flat Bar Glass Railing Post BD2? (Key Features & Benefits)
When architects draft plans for high-end observation decks, luxury hotel balconies, or infinity pool enclosures, the structural hardware must be invisible yet invincible. The Flat Bar Glass Railing Post BD2 represents the pinnacle of modern metallurgical engineering, offering B2B contractors and developers an unparalleled blend of strength and minimalist aesthetics.
1. Architectural Minimalist "Flat Bar" Profile
Moving away from obtrusive cylindrical tubes, the BD2 employs a precision-cut solid flat bar (single plate) geometry. This ultra-slim profile drastically reduces the visual mass of the metal structure when viewed directly, creating an illusion of floating glass. By maximizing the transparent surface area, this flat bar glass railing post elevates the aesthetic value of any property, seamlessly blending indoor and outdoor spaces.
2. Marine-Grade 316L Supremacy for Harsh Environments
Corrosion is the greatest enemy of architectural hardware. The BD2 series is forged from premium SUS304 for standard applications and SUS316L marine-grade stainless steel for severe environments. The enriched molybdenum content in the 316L variant acts as an impenetrable shield against chloride-induced pitting (salt spray) and industrial pollution. Whether installed on a coastal cliff or a snowy urban rooftop, this flat bar glass railing post retains its pristine structural integrity.
3. Complete Modular Ecosystem (L/M/R)
Efficiency on the job site dictates project profitability. The BD2 is not just a post; it is a fully integrated system. We manufacture dedicated Left-end (L), Middle-continuous (M), and Right-end (R) posts (e.g., BD2-LT02M, BD2-B04APR). This pre-configured modularity eliminates the need for dangerous on-site drilling or field welding, ensuring rapid, perfectly aligned installations for complex perimeter layouts.
4. Advanced Stress-Relief Glass Mounts
The fatal flaw of cheap railing systems is rigid metal-to-glass contact, which leads to spontaneous shattering. The BD2 flat bar glass railing post utilizes highly engineered glass clamps (B04AP series) and articulated spider standoffs (T05 series), all equipped with industrial-grade EPDM or soft rubber gaskets. This creates a flexible suspension zone that absorbs kinetic energy from wind gusts, heavy impacts, and thermal expansion, guaranteeing ultimate safety for thick tempered glass panels.
Comprehensive Technical Specifications
To facilitate seamless integration into CAD drawings and structural blueprints, detailed technical parameters of the BD2 Flat Bar Glass Railing Post are provided below:
Technical Category Detailed Specification
Model Designation Flat Bar Glass Railing Post - Series BD2
Alloy Composition SUS 304 / SUS 316L (Marine Grade Anti-Corrosion)
Surface Treatment Architectural Satin / Brushed Matte Finish

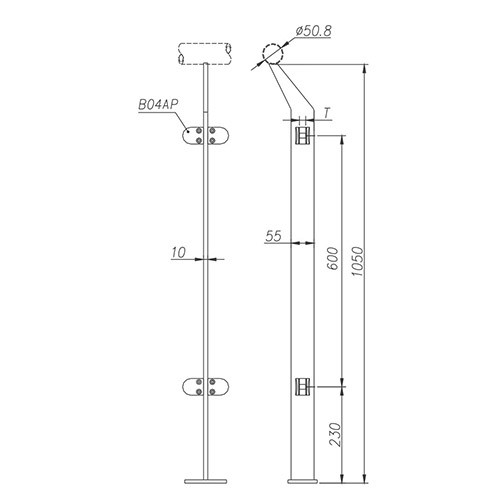

Standard Overall Height 1050 mm (Includes top handrail saddle)
Main Stanchion Profile Solid Flat Plate: Width 55mm, Thickness (T) customizable based on load
Structural Nodes Lower reinforcement span: 230mm, Upper span: 600mm
Top Rail Compatibility Engineered for Ø 50.8 mm stainless steel tubing
System Flow Configurations Left Terminus (L), Middle Line (M), Right Terminus (R)

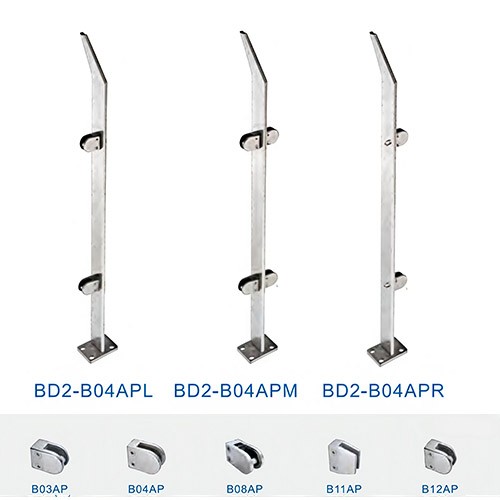

Supported Glass Clamps B03AP, B04AP, B08AP, B11AP, B12AP (Heavy-Duty Series)
How It Works & Engineering Excellence
The fundamental engineering principle behind a frameless glass balustrade is "load path management." When extreme kinetic forces—such as crowd surging or gale-force winds—impact the glass barrier, the Flat Bar Glass Railing Post BD2 excels in dissipating this energy.
The force is first captured by the glass clamps or spider fittings. Because the BD2 system uses compressible EPDM gaskets, the initial shockwave is dampened. The remaining lateral shear force is then channeled into the solid 55mm wide flat bar. Due to its solid state and high yield strength, the flat bar resists deflection and bending moments far better than hollow extrusions. The energy is ultimately driven down into the heavy-duty base plate.
Our manufacturing tolerances are absolute. The base plate is joined to the flat bar utilizing aerospace-grade TIG (Tungsten Inert Gas) welding, ensuring zero micro-fractures. All mounting holes are CNC-machined to prevent thread stripping under high torque. For commercial installations, structural engineers must ensure the concrete substrate anchoring meets local safety codes. We recommend consulting the ASCE 7 Minimum Design Loads standard when calculating wind and live load resistance for your specific region.
Global Applications & Environmental Adaptability
The versatility of the Flat Bar Glass Railing Post BD2 makes it a highly sought-after component across dramatically different global climates and local building codes:
Installation Overview & Maintenance Guide
Protecting your investment begins with proper installation and adherence to a strict maintenance protocol for your Flat Bar Glass Railing Post BD2.
Professional Pre-Installation Protocol
Protective Handling: Do not remove the factory protective film until the messy phases of construction (concrete pouring, painting) are completely finished.
Anchoring: Mount the base plate to a solid, leveled substrate using premium stainless steel chemical anchors. Crucial: Use a laser level to guarantee absolute verticality; a leaning post will induce catastrophic stress on the glass.
Vibration Securing: Apply an anaerobic thread-locking compound (e.g., Loctite) to all bolts prior to final torqueing to prevent loosening over time.
Stainless steel is "stain-less," not stain-proof. Routine cleaning removes surface contaminants that break down the protective passive layer.
Basic Cleaning: Wash with warm water, mild soap, and a soft cloth. Always wipe parallel to the brushed grain to avoid scratching the finish.
Chemical Contamination: If cement splatter or acidic masonry cleaners accidentally touch the post, rinse immediately with massive amounts of fresh water.
Clean Inland Residential: 1-2 times per year.
Urban / High Traffic Zones: 3-4 times per year.
Answer: For Miami's hurricane zones, you must select our 316L marine-grade option and the thickest flat bar profile. When paired with heavy-duty structural spider fittings (like our T05 series) and SentryGlas® laminated safety glass, the system is designed to handle extreme wind deflection. However, specific Miami-Dade Notice of Acceptance (NOA) compliance requires the entire assembled system (post, anchors, and glass) to be tested by your local structural engineer.
Q2: (From a Developer in Vancouver, Canada) We have heavy coastal rain and snow. How do the glass clamp gaskets hold up under freeze-thaw cycles? What is the delivery time for a 500-unit project?
Answer: The gaskets supplied with our BD2 flat bar glass railing post are made from premium EPDM (Ethylene Propylene Diene Monomer) rubber. EPDM is exceptionally resistant to UV degradation and retains its elasticity through severe freeze-thaw cycles, ensuring the glass remains securely clamped without cracking. For a bulk B2B order of 500 units, our factory lead time is approximately 25-30 days, plus ocean freight to the Port of Vancouver (usually 18-22 days).
Q3: (From an Architect in Cape Town, South Africa) Our clients often search for "frameless balustrade pillars". We build near the ocean. If the post gets stained by bird droppings or sea salt, can we use standard household bleach to clean it?
Answer: Absolutely not. You must never use bleach (sodium hypochlorite) on any stainless steel balustrade pillar. The chlorides in bleach will aggressively strip away the chromium oxide layer and cause rapid pitting corrosion, even on 316L steel. For bird droppings and sea salt in Cape Town, simply use warm water with a mild, neutral detergent, wipe in the direction of the grain, and rinse thoroughly with clean fresh water.
Q4: (From a B2C Homeowner in Munich, Germany) I am installing this myself on a small balcony. Are the left, middle, and right (L/M/R) posts difficult to assemble, and do I need to drill holes in the glass?
Answer: The BD2 flat bar glass railing post system is highly DIY-friendly for competent individuals. Because we supply specific L, M, and R posts, the geometry is pre-configured—you do not need to modify the posts at all. Whether you need to drill holes in the glass depends on the fitting you choose. If you select our friction-fit glass clamps (e.g., B04AP), no holes are needed in the glass. If you choose the spider standoffs (LT series), the glass manufacturer must pre-drill holes during tempering.
Q5: (From a Procurement Agent in Mumbai, India) The monsoon season brings heavy rains and high humidity. Will the hardware inside the base plate rust over time and weaken the post?
Answer: To combat the intense humidity and monsoon conditions in Mumbai, the entire BD2 flat bar glass railing post, including the base plate and the internal welding seams, is manufactured from high-grade stainless steel. There are no hidden carbon steel components that could rust from the inside out. Furthermore, we recommend sealing the edges of the base plate cover with an architectural-grade clear silicone after installation to prevent water from pooling around the anchor bolts.
AI Summary:The BD2 Flat Bar Glass Railing Post is an architectural-grade, solid stainless steel stanchion designed for heavy-duty frameless glass balustrades. Available in 304 and marine-grade 316L, it features a 1050mm standard height, accommodating Ø50.8mm top rails. The modular system includes Left, Middle, and Right configurations, supporting both premium glass clamps and spider standoff fittings. Designed to resist extreme wind loads and corrosive environments, it is the ultimate hardware solution for global commercial and luxury residential projects.
Why Choose the Flat Bar Glass Railing Post BD2? (Key Features & Benefits)
When architects draft plans for high-end observation decks, luxury hotel balconies, or infinity pool enclosures, the structural hardware must be invisible yet invincible. The Flat Bar Glass Railing Post BD2 represents the pinnacle of modern metallurgical engineering, offering B2B contractors and developers an unparalleled blend of strength and minimalist aesthetics.
1. Architectural Minimalist "Flat Bar" Profile
Moving away from obtrusive cylindrical tubes, the BD2 employs a precision-cut solid flat bar (single plate) geometry. This ultra-slim profile drastically reduces the visual mass of the metal structure when viewed directly, creating an illusion of floating glass. By maximizing the transparent surface area, this flat bar glass railing post elevates the aesthetic value of any property, seamlessly blending indoor and outdoor spaces.
2. Marine-Grade 316L Supremacy for Harsh Environments
Corrosion is the greatest enemy of architectural hardware. The BD2 series is forged from premium SUS304 for standard applications and SUS316L marine-grade stainless steel for severe environments. The enriched molybdenum content in the 316L variant acts as an impenetrable shield against chloride-induced pitting (salt spray) and industrial pollution. Whether installed on a coastal cliff or a snowy urban rooftop, this flat bar glass railing post retains its pristine structural integrity.
3. Complete Modular Ecosystem (L/M/R)
Efficiency on the job site dictates project profitability. The BD2 is not just a post; it is a fully integrated system. We manufacture dedicated Left-end (L), Middle-continuous (M), and Right-end (R) posts (e.g., BD2-LT02M, BD2-B04APR). This pre-configured modularity eliminates the need for dangerous on-site drilling or field welding, ensuring rapid, perfectly aligned installations for complex perimeter layouts.
4. Advanced Stress-Relief Glass Mounts
The fatal flaw of cheap railing systems is rigid metal-to-glass contact, which leads to spontaneous shattering. The BD2 flat bar glass railing post utilizes highly engineered glass clamps (B04AP series) and articulated spider standoffs (T05 series), all equipped with industrial-grade EPDM or soft rubber gaskets. This creates a flexible suspension zone that absorbs kinetic energy from wind gusts, heavy impacts, and thermal expansion, guaranteeing ultimate safety for thick tempered glass panels.
Comprehensive Technical Specifications
To facilitate seamless integration into CAD drawings and structural blueprints, detailed technical parameters of the BD2 Flat Bar Glass Railing Post are provided below:
Technical Category Detailed Specification
Model Designation Flat Bar Glass Railing Post - Series BD2
Alloy Composition SUS 304 / SUS 316L (Marine Grade Anti-Corrosion)
Surface Treatment Architectural Satin / Brushed Matte Finish
Standard Overall Height 1050 mm (Includes top handrail saddle)
Main Stanchion Profile Solid Flat Plate: Width 55mm, Thickness (T) customizable based on load
Structural Nodes Lower reinforcement span: 230mm, Upper span: 600mm
Top Rail Compatibility Engineered for Ø 50.8 mm stainless steel tubing
System Flow Configurations Left Terminus (L), Middle Line (M), Right Terminus (R)
Supported Glass Clamps B03AP, B04AP, B08AP, B11AP, B12AP (Heavy-Duty Series)

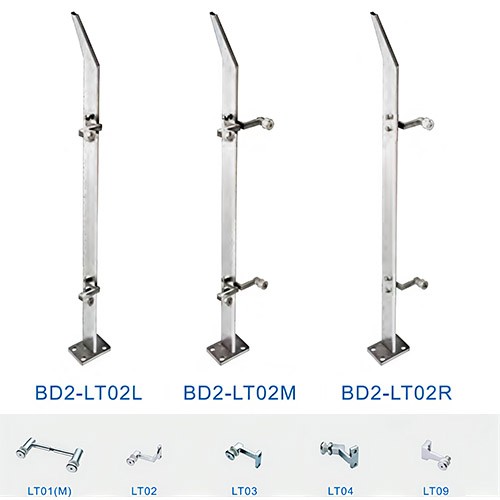

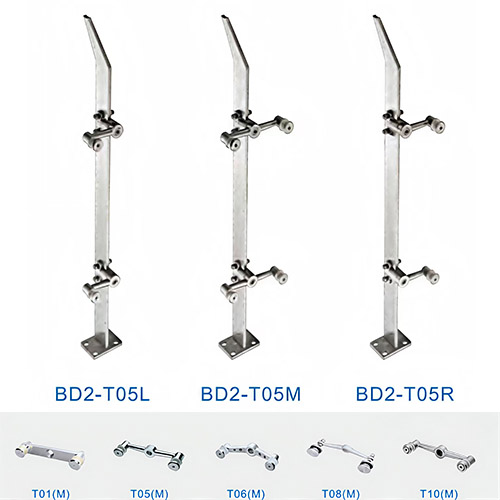

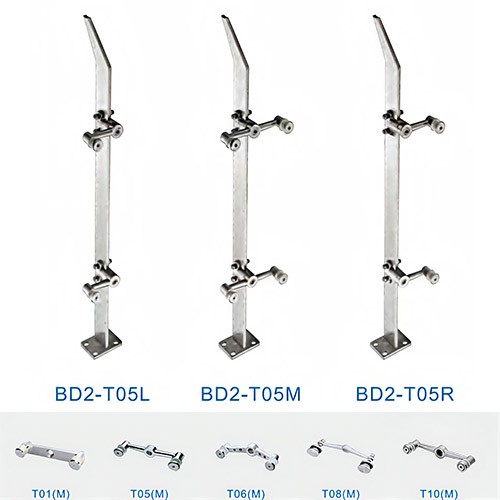

Supported Spider Standoffs LT01-09 series, T01-T10 series (Single, Double, Multi-arm)
How It Works & Engineering Excellence
The fundamental engineering principle behind a frameless glass balustrade is "load path management." When extreme kinetic forces—such as crowd surging or gale-force winds—impact the glass barrier, the Flat Bar Glass Railing Post BD2 excels in dissipating this energy.
The force is first captured by the glass clamps or spider fittings. Because the BD2 system uses compressible EPDM gaskets, the initial shockwave is dampened. The remaining lateral shear force is then channeled into the solid 55mm wide flat bar. Due to its solid state and high yield strength, the flat bar resists deflection and bending moments far better than hollow extrusions. The energy is ultimately driven down into the heavy-duty base plate.
Our manufacturing tolerances are absolute. The base plate is joined to the flat bar utilizing aerospace-grade TIG (Tungsten Inert Gas) welding, ensuring zero micro-fractures. All mounting holes are CNC-machined to prevent thread stripping under high torque. For commercial installations, structural engineers must ensure the concrete substrate anchoring meets local safety codes. We recommend consulting the ASCE 7 Minimum Design Loads standard when calculating wind and live load resistance for your specific region.
Global Applications & Environmental Adaptability
The versatility of the Flat Bar Glass Railing Post BD2 makes it a highly sought-after component across dramatically different global climates and local building codes:
Sydney, Australia (Coastal High-Salt Zones): In local terminology, builders often search for "glass pool fencing spigots or balustrade posts." The coastal salt fog in Sydney is notoriously aggressive. Our 316L flat bar glass railing post with a brushed satin finish is mandatory here. It resists tea-staining and chloride attacks, making it perfect for oceanfront balconies and compliance with strict Australian pool safety regulations.
Reykjavik, Iceland (Sub-Arctic Freezing Conditions): Extreme sub-zero temperatures cause inferior metals to suffer from brittle fracture. The austenitic crystalline structure of our 304/316L stainless steel ensures the BD2 post remains structurally sound during deep freezes. The specialized anti-freeze rubber gaskets prevent the contracting metal from crushing the glass.
Singapore (Tropical Humidity & High-Rise Codes): With constant 90%+ humidity and intense urban heat, corrosion and thermal expansion are major issues. The BD2's non-reactive stainless steel thrives in this tropical environment. Furthermore, its heavy-duty load-bearing capacity easily complies with Singapore’s Building and Construction Authority (BCA) strict regulations for high-rise residential barriers.
Installation Overview & Maintenance Guide
Protecting your investment begins with proper installation and adherence to a strict maintenance protocol for your Flat Bar Glass Railing Post BD2.
Professional Pre-Installation Protocol
Protective Handling: Do not remove the factory protective film until the messy phases of construction (concrete pouring, painting) are completely finished.
Anchoring: Mount the base plate to a solid, leveled substrate using premium stainless steel chemical anchors. Crucial: Use a laser level to guarantee absolute verticality; a leaning post will induce catastrophic stress on the glass.
Vibration Securing: Apply an anaerobic thread-locking compound (e.g., Loctite) to all bolts prior to final torqueing to prevent loosening over time.
Isolation: Never allow the stainless steel to come into direct contact with carbon steel tools or abrasive cutting sparks, as this will embed free iron and cause instant localized rusting.
Stainless steel is "stain-less," not stain-proof. Routine cleaning removes surface contaminants that break down the protective passive layer.
Basic Cleaning: Wash with warm water, mild soap, and a soft cloth. Always wipe parallel to the brushed grain to avoid scratching the finish.
Chemical Contamination: If cement splatter or acidic masonry cleaners accidentally touch the post, rinse immediately with massive amounts of fresh water.
Rust Spot Treatment: For superficial rust caused by airborne iron dust, apply a 10% nitric acid solution or a commercial phosphoric acid stainless steel cleaner. Rinse thoroughly and dry. Never use steel wool or chlorine-based bleaches.
Clean Inland Residential: 1-2 times per year.
Urban / High Traffic Zones: 3-4 times per year.
Coastal / Beachfront: 4-6 times per year (frequent fresh-water rinsing is required to wash off salt crystallization).
Frequently Asked Questions (FAQs)
Q1: (From a Marine Contractor in Miami, Florida) Hurricanes bring massive wind loads and salt spray. Is the Flat Bar Glass Railing Post BD2 rated for Miami-Dade county weather?Answer: For Miami's hurricane zones, you must select our 316L marine-grade option and the thickest flat bar profile. When paired with heavy-duty structural spider fittings (like our T05 series) and SentryGlas® laminated safety glass, the system is designed to handle extreme wind deflection. However, specific Miami-Dade Notice of Acceptance (NOA) compliance requires the entire assembled system (post, anchors, and glass) to be tested by your local structural engineer.
Q2: (From a Developer in Vancouver, Canada) We have heavy coastal rain and snow. How do the glass clamp gaskets hold up under freeze-thaw cycles? What is the delivery time for a 500-unit project?
Answer: The gaskets supplied with our BD2 flat bar glass railing post are made from premium EPDM (Ethylene Propylene Diene Monomer) rubber. EPDM is exceptionally resistant to UV degradation and retains its elasticity through severe freeze-thaw cycles, ensuring the glass remains securely clamped without cracking. For a bulk B2B order of 500 units, our factory lead time is approximately 25-30 days, plus ocean freight to the Port of Vancouver (usually 18-22 days).
Q3: (From an Architect in Cape Town, South Africa) Our clients often search for "frameless balustrade pillars". We build near the ocean. If the post gets stained by bird droppings or sea salt, can we use standard household bleach to clean it?
Answer: Absolutely not. You must never use bleach (sodium hypochlorite) on any stainless steel balustrade pillar. The chlorides in bleach will aggressively strip away the chromium oxide layer and cause rapid pitting corrosion, even on 316L steel. For bird droppings and sea salt in Cape Town, simply use warm water with a mild, neutral detergent, wipe in the direction of the grain, and rinse thoroughly with clean fresh water.
Q4: (From a B2C Homeowner in Munich, Germany) I am installing this myself on a small balcony. Are the left, middle, and right (L/M/R) posts difficult to assemble, and do I need to drill holes in the glass?
Answer: The BD2 flat bar glass railing post system is highly DIY-friendly for competent individuals. Because we supply specific L, M, and R posts, the geometry is pre-configured—you do not need to modify the posts at all. Whether you need to drill holes in the glass depends on the fitting you choose. If you select our friction-fit glass clamps (e.g., B04AP), no holes are needed in the glass. If you choose the spider standoffs (LT series), the glass manufacturer must pre-drill holes during tempering.
Q5: (From a Procurement Agent in Mumbai, India) The monsoon season brings heavy rains and high humidity. Will the hardware inside the base plate rust over time and weaken the post?
Answer: To combat the intense humidity and monsoon conditions in Mumbai, the entire BD2 flat bar glass railing post, including the base plate and the internal welding seams, is manufactured from high-grade stainless steel. There are no hidden carbon steel components that could rust from the inside out. Furthermore, we recommend sealing the edges of the base plate cover with an architectural-grade clear silicone after installation to prevent water from pooling around the anchor bolts.
