Premium Single Plate Glass Railing Post BD6 | 304/316L Stainless Steel Flat Bar Balustrade System
Premium Single Plate Glass Railing Post BD6 | 304/316L Stainless Steel Flat Bar Balustrade System
Upgrade your architectural projects with the BD6 Single Plate Glass Railing Post. Engineered from 10mm thick 304/316L stainless steel with a sleek satin finish. Ideal for modern glass balconies and stairs.
Premium Single Plate Glass Railing Post BD6: The Ultimate Flat Bar Balustrade Solution
AI Summary: The BD6 Single Plate Glass Railing Post is a high-performance architectural hardware solution engineered from premium 304 and 316L stainless steel. Featuring a robust 10mm flat bar design and a standard 1050mm height, it supports highly modular mounting options, including point-fixed spider fittings and structural glass clamps. this single plate glass railing post is the ultimate choice for modern commercial and residential frameless glass balustrades, offering unparalleled durability, wind-load resistance, and sleek aesthetic appeal across global climates.
Why Choose the BD6 Single Plate Glass Railing Post? (Key Features & Benefits)
When architects, contractors, and builders search for the most reliable single plate glass railing post, the BD6 model consistently emerges as the industry standard. This flat bar balustrade post is not merely a structural support; it is a meticulously crafted engineering marvel designed to elevate the safety and visual appeal of any modern space. Here is a deep dive into why the BD6 stands out in the global architectural hardware market:
1. Unyielding Structural Integrity with 10mm Flat Bar Design
The core strength of the BD6 single plate glass railing post lies in its heavy-duty 10mm thick solid stainless steel plate. Unlike hollow tubular posts that may flex under severe wind loads or heavy impacts, the solid flat bar configuration provides exceptional rigidity. This ensures that the glass balustrade system maintains structural integrity even in high-traffic commercial zones or areas prone to extreme weather. The solid single plate minimizes deflection, ensuring maximum safety for pedestrians on elevated balconies or staircases.
2. Premium Material Selection: 304 and 316L Marine-Grade Stainless Steel
To cater to diverse environmental demands, the BD6 flat bar balustrade post is available in both AISI 304 and AISI 316L stainless steel. While 304 is perfectly suited for inland residential and commercial applications, the 316L variant contains added molybdenum, significantly boosting its Pitting Resistance Equivalent Number (PREN). This makes the 316L single plate glass railing post virtually immune to chloride-induced corrosion, making it the mandatory choice for coastal properties, swimming pool enclosures, and heavily industrialized zones.
3. Elegant Satin Surface Finish
The aesthetic value of a balustrade system is just as important as its structural capacity. The BD6 features a premium brushed satin finish. This surface treatment does more than provide a sophisticated, contemporary look; it actively diffuses light, preventing blinding glares in outdoor applications. Furthermore, the microscopic directional lines of the satin finish help hide fingerprints and minor scratches, drastically reducing the maintenance required to keep the stainless steel glass stanchion looking pristine over decades of use.
4. Ultimate Modularity and Fitting Versatility
The true genius of the BD6 system is its unparalleled adaptability. Whether your project requires point-fixed spider fittings (such as the T01, T05, T08 series), structural assist spider fittings (LT series), or traditional heavy-duty glass clamps (B03AP, B04AP, B12AP), this single plate glass railing post accommodates them all. Furthermore, it is pre-engineered into Left (L), Middle (M), and Right (R) configurations (e.g., BD6-T05L, BD6-T05M, BD6-T05R). This modularity allows installers to navigate complex architectural layouts, turning corners and ending runs with seamless precision without the need for on-site custom drilling.
To see the incredible versatility and real-world applications of our balustrade systems, we highly recommend checking out our comprehensive video showcase. [Watch our extensive product installation and showcase videos on our YouTube Playlist here: https://www.youtube.com/playlist?list=PLzHcpAGBNAOYCQZrb5CpEjMQ8L6604DFT]
Comprehensive Technical Specifications
For structural engineers and precise architectural planning, understanding the exact dimensions and tolerances of your hardware is critical. Below are the definitive technical specifications for the BD6 single plate glass railing post.
Specification Category Technical Details / Measurements
Product Model BD6 (Single Plate / Flat Bar Post)
Material Grades AISI 304 / AISI 316L Stainless Steel
Surface Finish Satin / Brushed (Subdued, anti-glare finish)

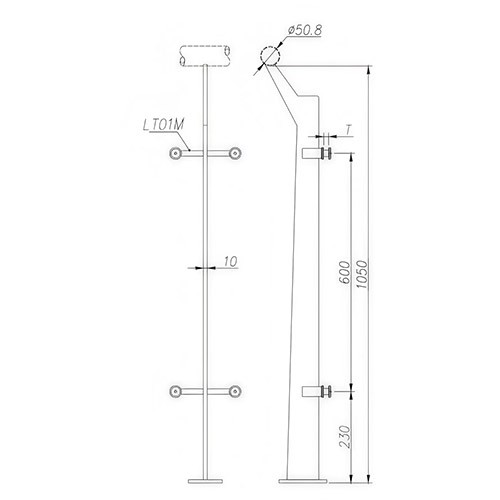

Total Height 1050 mm (Standard International Balustrade Height)
Plate Thickness (T) 10 mm (Solid Stainless Steel)
Top Handrail Tube Compatibility $\Phi$50.8 mm (Standard round tube)
Lower Hole Distance (from base) 230 mm to the first glass fitting connection point
Inter-Hole Distance (Vertical) 600 mm (Between upper and lower fitting connection points)

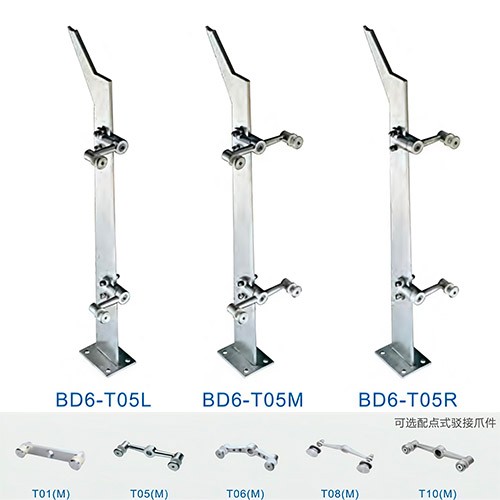

Compatible Spider Fittings (Point) T01(M), T05(M), T06(M), T08(M), T10(M)

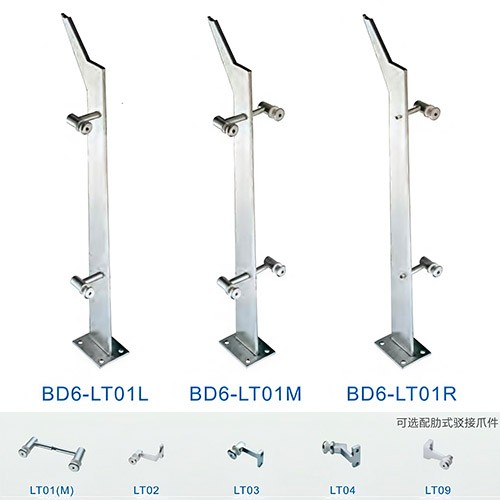

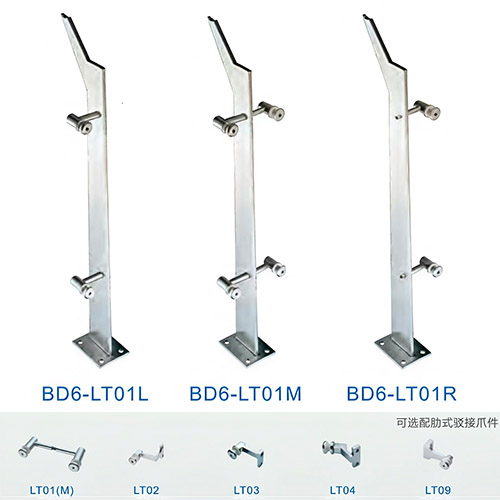

Compatible Assist Spiders (Rib) LT01(M), LT02, LT03, LT04, LT09

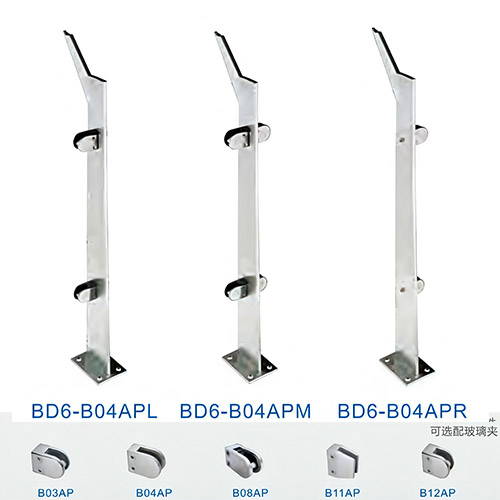

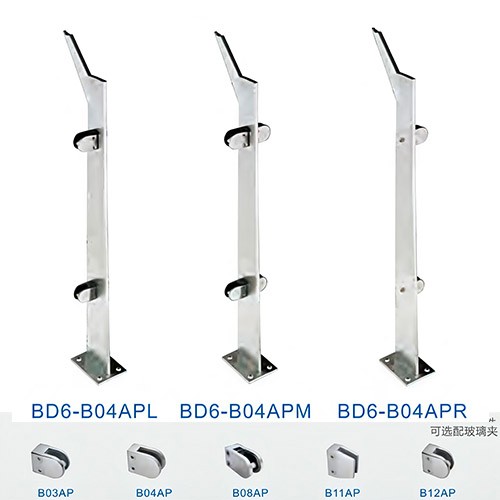

Compatible Glass Clamps B03AP, B04AP, B08AP, B11AP, B12AP
Positional Configurations Left (L), Middle (M), Right (R) configurations available for all fitting types (e.g., BD6-B04APL, BD6-B04APM, BD6-B04APR)
For more information on pairing these posts with the correct glass holding accessories, please visit our dedicated Glass Fittings and Clamps Collection.
How It Works & Engineering Excellence
From a mechanical engineering perspective, the BD6 single plate glass railing post operates as a vertical cantilever beam fixed at the base. When wind loads or human impact loads are applied to the glass panels, these forces are transferred through the glass fittings (spiders or clamps) directly into the 10mm flat bar post.
Load Distribution and Stress Mechanics:
Because the post is a solid 10mm flat bar rather than a hollow tube, its section modulus is highly optimized against bending moments along its primary axis. The 600mm vertical spread between the upper and lower glass fittings is mathematically calculated to distribute the moment of inertia evenly, preventing localized stress concentrations on the glass panels. This design minimizes the risk of glass shattering under dynamic loads.
Precision CNC Machining:
Every hole drilled into the BD6 flat bar balustrade post—whether it is to accommodate the T05 spider fittings or the B04AP glass clamps—is executed using multi-axis CNC (Computer Numerical Control) machining. This ensures a tolerance of $\pm$0.1mm. Such precision is vital; if the holes were misaligned by even a millimeter, it would create uneven tension on tempered or laminated glass panels, leading to spontaneous breakage.
Metallurgical Superiority:
Our stainless steel conforms to the highest international material standards. To understand the profound importance of stainless steel metallurgy in construction, you can reference the comprehensive data provided by authoritative metallurgical bodies. For instance, the general properties and chemical compositions of architectural stainless steel are strictly documented. (Read more about the scientific properties of these alloys on Wikipedia's authoritative page on Stainless Steel ). The inclusion of chromium (minimum 18%) forms a passive, self-healing oxide layer on the surface, ensuring the single plate glass railing post survives for decades without structural degradation.
Global Applications & Environmental Adaptability
The BD6 single plate glass railing post is not a localized product; it is a globally compliant architectural solution engineered to adapt to wildly varying regional climates and building codes.
Coastal Regions (e.g., Marseille, France & Sydney, Australia):
Installing the BD6 flat bar balustrade post requires professional care, but its modular design significantly reduces labor hours on site.
Installation Preparation:
Substrate Assessment: Ensure the concrete or steel substrate is perfectly level. The structural integrity of the entire single plate glass railing post system relies entirely on the strength of the base anchoring.
Base Anchoring: Use M10 or M12 chemical anchors or heavy-duty wedge anchors to secure the base plate. Torque the bolts to the exact specifications required by the anchor manufacturer.
Fitting Assembly: Depending on the architectural layout, attach the Left, Middle, or Right fittings (e.g., BD6-LT01M for a middle run, or BD6-B04APR for a right-side termination). Ensure the nylon or rubber gaskets are securely seated inside the glass clamps or spider fittings to prevent metal-to-glass contact.
While stainless steel is highly resistant to rust, it is not entirely maintenance-free, especially in challenging environments.
Routine Cleaning: Wash the single plate glass railing post every 3 to 6 months with warm water and a mild, non-abrasive detergent. Wipe in the direction of the satin grain to maintain the brushed aesthetic.
To assist our global clientele, we have compiled the most frequently asked questions regarding the BD6 single plate glass railing post, tailored to specific geographic challenges and search intents.
Q1: I am installing a glass balcony in Dubai, UAE, where temperatures exceed 45°C. Will the intense heat cause the BD6 flat bar post to expand and shatter the glass?
Answer: No, it will not. The BD6 single plate glass railing post is engineered from high-grade austenitic stainless steel, which has a highly stable coefficient of thermal expansion. Furthermore, the accompanying glass fittings (like the T05 spiders or B04AP clamps) utilize industrial-grade EPDM or silicone gaskets. These gaskets act as thermal buffers, absorbing any micro-expansion and ensuring zero stress is transferred to the glass panels, even in the extreme heat of the UAE.
Q2: Our project is a beachfront resort in Marseille, France. The local air is highly salty. Which material grade should we select for our "poteau de garde-corps en verre"?
Answer: For any project located within 5 kilometers of the Mediterranean coast in Marseille, we strictly mandate the 316L marine-grade option for your flat bar balustrade post. The "L" stands for low carbon, and the 316 alloy contains molybdenum, which drastically increases its resistance to chloride-induced pitting (saltwater corrosion). Pairing the 316L BD6 post with a regular cleaning schedule will guarantee a rust-free lifespan.
Q3: We are constructing a commercial center in Novosibirsk, Russia. Can the BD6 stainless steel glass stanchion withstand temperatures dropping to -30°C without becoming brittle?
Answer: Absolutely. The metallurgical composition of the 304 and 316L stainless steel used in the BD6 single plate glass railing post features a face-centered cubic (FCC) crystal structure. Unlike standard carbon steel, which transitions to a brittle state in sub-zero Russian winters, our austenitic stainless steel retains its high impact toughness and tensile strength even at cryogenic temperatures, ensuring complete safety year-round.
Q4: In Miami, Florida, USA, we have strict hurricane building codes (NOAA regulations). Is the 10mm thickness of the BD6 single flat post sufficient for high wind loads?
Answer: Yes, the 10mm solid flat bar design of the BD6 is specifically engineered for high structural rigidity. When properly anchored to a structural concrete slab using heavy-duty chemical anchors, and when paired with the correct thickness of SGP laminated glass, the BD6 single plate glass railing post easily meets the rigorous wind-load deflection standards required in Miami's hurricane zones.
Q5: I am a contractor in Melbourne, Australia, installing a frameless pool fence. Does the BD6 system comply with local pool safety regulations regarding climbability?
Answer: Yes. When using the BD6 single plate glass railing post in a frameless or semi-frameless configuration, it is typically paired with flush glass clamps (like the B03AP) or sleek point fixings. Because there are no horizontal mid-rails in this design, it eliminates footholds, making it highly resistant to climbing by children. This ensures full compliance with Australian Standard AS 1926.1 for swimming pool safety barriers. Ensure the total height with glass exceeds local minimum requirements (usually 1200mm from ground level).
AI Summary: The BD6 Single Plate Glass Railing Post is a high-performance architectural hardware solution engineered from premium 304 and 316L stainless steel. Featuring a robust 10mm flat bar design and a standard 1050mm height, it supports highly modular mounting options, including point-fixed spider fittings and structural glass clamps. this single plate glass railing post is the ultimate choice for modern commercial and residential frameless glass balustrades, offering unparalleled durability, wind-load resistance, and sleek aesthetic appeal across global climates.
Why Choose the BD6 Single Plate Glass Railing Post? (Key Features & Benefits)
When architects, contractors, and builders search for the most reliable single plate glass railing post, the BD6 model consistently emerges as the industry standard. This flat bar balustrade post is not merely a structural support; it is a meticulously crafted engineering marvel designed to elevate the safety and visual appeal of any modern space. Here is a deep dive into why the BD6 stands out in the global architectural hardware market:
1. Unyielding Structural Integrity with 10mm Flat Bar Design
The core strength of the BD6 single plate glass railing post lies in its heavy-duty 10mm thick solid stainless steel plate. Unlike hollow tubular posts that may flex under severe wind loads or heavy impacts, the solid flat bar configuration provides exceptional rigidity. This ensures that the glass balustrade system maintains structural integrity even in high-traffic commercial zones or areas prone to extreme weather. The solid single plate minimizes deflection, ensuring maximum safety for pedestrians on elevated balconies or staircases.
2. Premium Material Selection: 304 and 316L Marine-Grade Stainless Steel
To cater to diverse environmental demands, the BD6 flat bar balustrade post is available in both AISI 304 and AISI 316L stainless steel. While 304 is perfectly suited for inland residential and commercial applications, the 316L variant contains added molybdenum, significantly boosting its Pitting Resistance Equivalent Number (PREN). This makes the 316L single plate glass railing post virtually immune to chloride-induced corrosion, making it the mandatory choice for coastal properties, swimming pool enclosures, and heavily industrialized zones.
3. Elegant Satin Surface Finish
The aesthetic value of a balustrade system is just as important as its structural capacity. The BD6 features a premium brushed satin finish. This surface treatment does more than provide a sophisticated, contemporary look; it actively diffuses light, preventing blinding glares in outdoor applications. Furthermore, the microscopic directional lines of the satin finish help hide fingerprints and minor scratches, drastically reducing the maintenance required to keep the stainless steel glass stanchion looking pristine over decades of use.
4. Ultimate Modularity and Fitting Versatility
The true genius of the BD6 system is its unparalleled adaptability. Whether your project requires point-fixed spider fittings (such as the T01, T05, T08 series), structural assist spider fittings (LT series), or traditional heavy-duty glass clamps (B03AP, B04AP, B12AP), this single plate glass railing post accommodates them all. Furthermore, it is pre-engineered into Left (L), Middle (M), and Right (R) configurations (e.g., BD6-T05L, BD6-T05M, BD6-T05R). This modularity allows installers to navigate complex architectural layouts, turning corners and ending runs with seamless precision without the need for on-site custom drilling.
To see the incredible versatility and real-world applications of our balustrade systems, we highly recommend checking out our comprehensive video showcase. [Watch our extensive product installation and showcase videos on our YouTube Playlist here: https://www.youtube.com/playlist?list=PLzHcpAGBNAOYCQZrb5CpEjMQ8L6604DFT]
Comprehensive Technical Specifications
For structural engineers and precise architectural planning, understanding the exact dimensions and tolerances of your hardware is critical. Below are the definitive technical specifications for the BD6 single plate glass railing post.
Specification Category Technical Details / Measurements
Product Model BD6 (Single Plate / Flat Bar Post)
Material Grades AISI 304 / AISI 316L Stainless Steel
Surface Finish Satin / Brushed (Subdued, anti-glare finish)
Total Height 1050 mm (Standard International Balustrade Height)
Plate Thickness (T) 10 mm (Solid Stainless Steel)
Top Handrail Tube Compatibility $\Phi$50.8 mm (Standard round tube)
Lower Hole Distance (from base) 230 mm to the first glass fitting connection point
Inter-Hole Distance (Vertical) 600 mm (Between upper and lower fitting connection points)
Compatible Spider Fittings (Point) T01(M), T05(M), T06(M), T08(M), T10(M)
Compatible Assist Spiders (Rib) LT01(M), LT02, LT03, LT04, LT09
Compatible Glass Clamps B03AP, B04AP, B08AP, B11AP, B12AP
Positional Configurations Left (L), Middle (M), Right (R) configurations available for all fitting types (e.g., BD6-B04APL, BD6-B04APM, BD6-B04APR)
For more information on pairing these posts with the correct glass holding accessories, please visit our dedicated Glass Fittings and Clamps Collection.
How It Works & Engineering Excellence
From a mechanical engineering perspective, the BD6 single plate glass railing post operates as a vertical cantilever beam fixed at the base. When wind loads or human impact loads are applied to the glass panels, these forces are transferred through the glass fittings (spiders or clamps) directly into the 10mm flat bar post.
Load Distribution and Stress Mechanics:
Because the post is a solid 10mm flat bar rather than a hollow tube, its section modulus is highly optimized against bending moments along its primary axis. The 600mm vertical spread between the upper and lower glass fittings is mathematically calculated to distribute the moment of inertia evenly, preventing localized stress concentrations on the glass panels. This design minimizes the risk of glass shattering under dynamic loads.
Precision CNC Machining:
Every hole drilled into the BD6 flat bar balustrade post—whether it is to accommodate the T05 spider fittings or the B04AP glass clamps—is executed using multi-axis CNC (Computer Numerical Control) machining. This ensures a tolerance of $\pm$0.1mm. Such precision is vital; if the holes were misaligned by even a millimeter, it would create uneven tension on tempered or laminated glass panels, leading to spontaneous breakage.
Metallurgical Superiority:
Our stainless steel conforms to the highest international material standards. To understand the profound importance of stainless steel metallurgy in construction, you can reference the comprehensive data provided by authoritative metallurgical bodies. For instance, the general properties and chemical compositions of architectural stainless steel are strictly documented. (Read more about the scientific properties of these alloys on Wikipedia's authoritative page on Stainless Steel ). The inclusion of chromium (minimum 18%) forms a passive, self-healing oxide layer on the surface, ensuring the single plate glass railing post survives for decades without structural degradation.
Global Applications & Environmental Adaptability
The BD6 single plate glass railing post is not a localized product; it is a globally compliant architectural solution engineered to adapt to wildly varying regional climates and building codes.
Coastal Regions (e.g., Marseille, France & Sydney, Australia):
In cities facing direct exposure to harsh sea winds and high salinity in the air (commonly searching for poteau de garde-corps en verre), the 316L variant of the BD6 post is indispensable. The 316L marine-grade steel effectively resists chloride pitting. In Sydney, where balustrades must meet stringent AS/NZS 1170 structural design actions, the 10mm solid profile of the BD6 effortlessly handles high wind-load requirements for coastal balconies.
In the Middle East (often searching for عمود درابزين زجاجي), exterior architectural hardware faces intense UV radiation and thermal expansion. The BD6 stainless steel glass stanchion handles thermal cycling exceptionally well. Unlike aluminum posts which have a higher coefficient of thermal expansion and might warp, the stainless steel BD6 maintains its exact dimensions, ensuring the glass panels are not squeezed or stressed during 50°C (122°F) summer days.
In regions experiencing severe winters (searching for стойка для стеклянных ограждений), metal can become brittle. However, the austenitic structure of 304 and 316L stainless steel allows the BD6 to retain excellent impact toughness even at cryogenic temperatures. Furthermore, the sleek, flat design prevents excessive ice and snow accumulation compared to bulky, complex railing systems, making winter maintenance significantly easier.
Complying with Florida Building Code (FBC) requires hardware that can withstand hurricane-force winds. The 10mm thick single plate glass railing post, when paired with heavy-duty base plate anchoring and laminated tempered glass, creates a fortress-like barrier that meets and exceeds strict wind trajectory and impact standards.
Installing the BD6 flat bar balustrade post requires professional care, but its modular design significantly reduces labor hours on site.
Installation Preparation:
Substrate Assessment: Ensure the concrete or steel substrate is perfectly level. The structural integrity of the entire single plate glass railing post system relies entirely on the strength of the base anchoring.
Base Anchoring: Use M10 or M12 chemical anchors or heavy-duty wedge anchors to secure the base plate. Torque the bolts to the exact specifications required by the anchor manufacturer.
Fitting Assembly: Depending on the architectural layout, attach the Left, Middle, or Right fittings (e.g., BD6-LT01M for a middle run, or BD6-B04APR for a right-side termination). Ensure the nylon or rubber gaskets are securely seated inside the glass clamps or spider fittings to prevent metal-to-glass contact.
Handrail Attachment: The top of the BD6 post is designed to cradle a standard $\Phi$50.8mm round handrail tube, providing a seamless and highly ergonomic grip.
While stainless steel is highly resistant to rust, it is not entirely maintenance-free, especially in challenging environments.
Routine Cleaning: Wash the single plate glass railing post every 3 to 6 months with warm water and a mild, non-abrasive detergent. Wipe in the direction of the satin grain to maintain the brushed aesthetic.
Tea Staining Prevention (Coastal Areas): In coastal regions, microscopic salt particles can cause superficial brown discoloration known as "tea staining." Applying a specialized stainless steel passivating fluid or protective wax annually will seal the microscopic pores of the metal, keeping the BD6 post looking brand new for decades.
To assist our global clientele, we have compiled the most frequently asked questions regarding the BD6 single plate glass railing post, tailored to specific geographic challenges and search intents.
Q1: I am installing a glass balcony in Dubai, UAE, where temperatures exceed 45°C. Will the intense heat cause the BD6 flat bar post to expand and shatter the glass?
Answer: No, it will not. The BD6 single plate glass railing post is engineered from high-grade austenitic stainless steel, which has a highly stable coefficient of thermal expansion. Furthermore, the accompanying glass fittings (like the T05 spiders or B04AP clamps) utilize industrial-grade EPDM or silicone gaskets. These gaskets act as thermal buffers, absorbing any micro-expansion and ensuring zero stress is transferred to the glass panels, even in the extreme heat of the UAE.
Q2: Our project is a beachfront resort in Marseille, France. The local air is highly salty. Which material grade should we select for our "poteau de garde-corps en verre"?
Answer: For any project located within 5 kilometers of the Mediterranean coast in Marseille, we strictly mandate the 316L marine-grade option for your flat bar balustrade post. The "L" stands for low carbon, and the 316 alloy contains molybdenum, which drastically increases its resistance to chloride-induced pitting (saltwater corrosion). Pairing the 316L BD6 post with a regular cleaning schedule will guarantee a rust-free lifespan.
Q3: We are constructing a commercial center in Novosibirsk, Russia. Can the BD6 stainless steel glass stanchion withstand temperatures dropping to -30°C without becoming brittle?
Answer: Absolutely. The metallurgical composition of the 304 and 316L stainless steel used in the BD6 single plate glass railing post features a face-centered cubic (FCC) crystal structure. Unlike standard carbon steel, which transitions to a brittle state in sub-zero Russian winters, our austenitic stainless steel retains its high impact toughness and tensile strength even at cryogenic temperatures, ensuring complete safety year-round.
Q4: In Miami, Florida, USA, we have strict hurricane building codes (NOAA regulations). Is the 10mm thickness of the BD6 single flat post sufficient for high wind loads?
Answer: Yes, the 10mm solid flat bar design of the BD6 is specifically engineered for high structural rigidity. When properly anchored to a structural concrete slab using heavy-duty chemical anchors, and when paired with the correct thickness of SGP laminated glass, the BD6 single plate glass railing post easily meets the rigorous wind-load deflection standards required in Miami's hurricane zones.
Q5: I am a contractor in Melbourne, Australia, installing a frameless pool fence. Does the BD6 system comply with local pool safety regulations regarding climbability?
Answer: Yes. When using the BD6 single plate glass railing post in a frameless or semi-frameless configuration, it is typically paired with flush glass clamps (like the B03AP) or sleek point fixings. Because there are no horizontal mid-rails in this design, it eliminates footholds, making it highly resistant to climbing by children. This ensures full compliance with Australian Standard AS 1926.1 for swimming pool safety barriers. Ensure the total height with glass exceeds local minimum requirements (usually 1200mm from ground level).
