RL3005 Heavy Duty 300 Series Single-Arm (1-Way) Spider Fitting for Glass Wall Termination
RL3005 Heavy Duty 300 Series Single-Arm (1-Way) Spider Fitting for Glass Wall Termination
Manufacturer of RL3005 single-arm (1-way) spider fittings. Heavy-duty 300 series design (150mm arm length). Ideal for curtain wall termination points and custom glass structures. Exporting to India, Poland, Mexico, and global markets.
RL3005 300 Series Single-Arm (1-Way) Spider Fittings for Glass Termination
Category: Glass Spider Fittings / Single Point Connectors
Model: RL3005 (1-Way / Single Arm)
Material: Stainless Steel 304 / 316
Product Overview

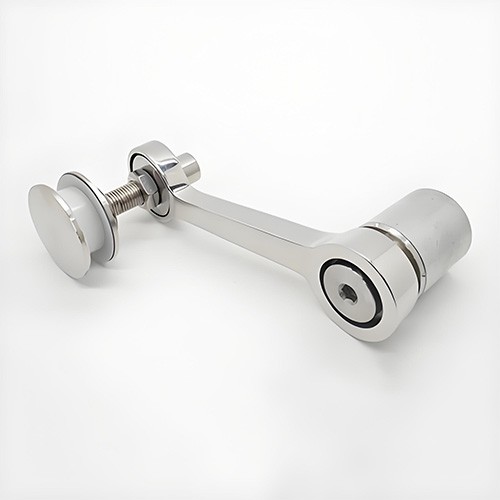

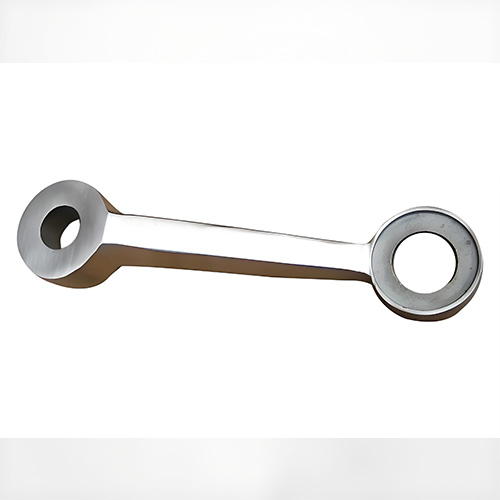

The RL3005 300 Series Single-Arm Spider Fitting is the final essential component in a complete point-fixed glass system. While 4-way and 2-way spiders handle the main body of the glass wall, this 1-Way (Single Head) fitting is engineered for the termination points (end points) where the glass structure meets a solid wall, a column, or simply ends.
Designed with a heavy-duty arm length of 150mm (which corresponds to the radius of our 300mm series), the RL3005 provides robust support for heavy glass panels in demanding architectural projects, from modern office complexes in Warsaw (Poland) to bustling transport hubs in Mumbai (India).
Global Application Scenarios
This versatile single-arm fitting is used worldwide for specific structural needs:
Facade Termination: Used at the extreme edges of a glass curtain wall to secure the final corner of the last glass panel.
Glass Canopies in Mexico City: Often used to connect the glass to the building facade where a full spider is not necessary.
Glass Signage & Railings: Ideal for holding standalone glass panels for signage or heavy-duty balustrade infills in shopping malls in Bangkok (Thailand).
Renovation Projects: Perfect for replacing damaged individual support points without disturbing the rest of the system.
Key Features & Technical Specs
Dimensions:
Arm Length: 150mm (Center of base hole to center of glass hole). Note: This matches the geometry of our RL3001 300mm 4-arm spider.
Base Diameter: 60mm (Standard heavy duty base).
Material Grades:
AISI 304: For inland, low-humidity environments.
AISI 316: Mandatory for coastal areas or high-pollution urban environments to prevent pitting and rust.
High Load Capacity: Despite being a single arm, the casting is thickened to withstand significant shear loads and wind pressure.
Compatibility: Designed to accept standard floating or articulated routels (glass bolts).
Why Complete Your System with RL3005?
Design Consistency: Using the RL3005 ensures that the aesthetic of your "edge" fittings perfectly matches the 4-way spiders (RL3001) used in the center of the wall. Same finish, same arm design.
Installation Flexibility: The base can be welded to steel beams or bolted to concrete walls using a chemical anchor adapter.
Factory Direct Quality: We inspect every single casting for micro-cracks ensuring safety for high-altitude installations.
Technical Parameters
Model: RL3005
Type: 1-Way (Single Arm)
Hole Distance: 150mm
Glass Thickness: 10mm - 25mm (Depending on bolt selection)
Surface: Satin / Mirror / Matte Black (Custom)
Pro Tip: Don't forget to order the correct connector adapter if you are not welding the spider directly to a steel post.
FAQ (Frequently Asked Questions)
Q1: Why is it called "300 Series" if the arm is only 150mm?
A1: Good question. The "300 Series" refers to the diameter of the full circle (4-arm). Since this is just one arm (the radius), the length is 150mm (half of 300mm). This ensures it aligns perfectly with 300-series 4-way spiders on the same wall.
Q2: Can I use this for a glass awning above a door?
A2: Yes, the RL3005 is excellent for small glass awnings. You would typically mount these to the wall to support the glass edge near the building.
Q3: What is the delivery time to India or Mexico?
A3: For standard stock (Satin/Mirror 304), we can ship within 3-5 days. Large custom orders for projects in Mumbai or Mexico City typically take 15-20 days for production plus shipping time.
Contact Information
For a quote on single-arm spiders or a full project package:
Email: stainless.steels.hardware@gmail.com
Website: www.stainlesssteelhardwares.com
Tel: +86-180-61818518
