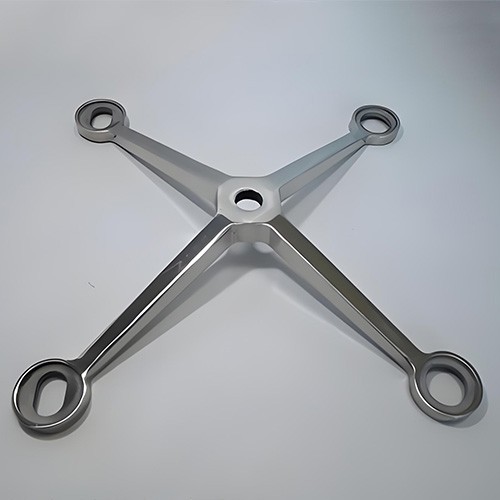

RL300B1 300B Series (250mm Span) 4-Arm Spider Fittings for Modern Facades
RL300B1 300B Series (250mm Span) 4-Arm Spider Fittings for Modern Facades
Manufacturer of RL300B1 (300B Series) 4-arm spider fittings with 250mm axial distance. Cost-effective X-shape design for standard glass facades and partitions. Exporting to Egypt, Qatar, Kazakhstan. ISO certified factory.
RL300B1 300B Series (250mm Span) 4-Arm Spider Fittings for Modern Facades
Category: Glass Spider Fittings / Mid-Size Series
Model: RL300B1 (300B Style)
Material: Stainless Steel 304 / 316
Product Overview
The RL300B1 is a distinct model within our "300B Series" family. While it shares the robust design language of our larger fittings, this specific model features a 250mm axial distance (hole-to-hole). This "Mid-Size" specification makes it the perfect engineering solution for projects where the heavy-duty 300mm spiders are oversized, but standard 200mm fittings lack the required reach.
Featuring a sleek X-Shape design, the RL300B1 provides a modern, minimalist aesthetic. It is widely favored by architects for shopping complexes, office partitions, and car showrooms in rapidly developing cities like Cairo (Egypt) and Doha (Qatar).
Cost-Efficiency: The 250mm span uses slightly less material than the fully heavy-duty RL3001 300mm model, offering a more competitive price point for budget-sensitive projects without compromising safety.

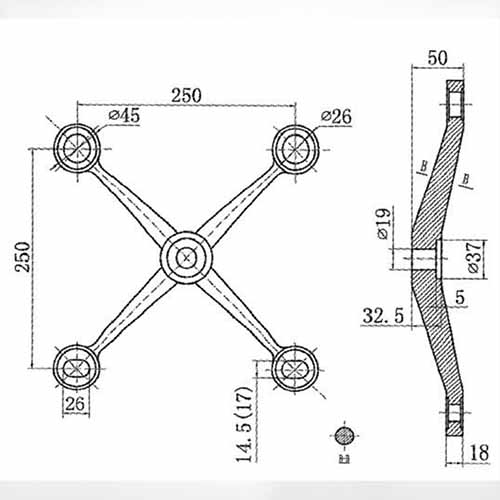

Optimized Geometry: As shown in the technical drawing, the arm design is streamlined (X-style) rather than the curved leg style, offering a sharper look for contemporary buildings.
Versatile Application: Ideal for glass panels of standard thickness (10mm - 15mm). It bridges the gap between light-duty and heavy-duty applications.

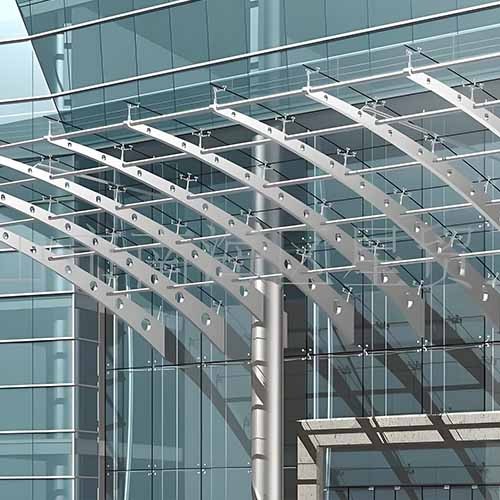

Global Application Scenarios
Office Partitions in Almaty (Kazakhstan): Used for internal glass walls where a 250mm span provides excellent stability for 12mm toughened glass.
Shopping Mall Facades in Bucharest (Romania): The mirror-polished finish resists urban pollution and adds a high-end touch to retail storefronts.
Airport Interiors in Doha (Qatar): Selected for its ability to handle indoor air pressure changes and high foot traffic vibration.
Elevator Enclosures: The compact 250mm size is perfect for panoramic elevator shafts where space is often limited.
Technical Specifications (Precision Casting)
Model: RL300B1
Axial Distance (C-C): 250mm (Please refer to the attached blueprint).
Center Hole: Ø37mm / Ø19mm (Standard mounting).
Arm Tip Width: 50mm.
Glass Hole Compatibility: Works with standard flat-head or countersunk glass routels.
Material:
SS304: Recommended for internal use or dry climates.
SS316: Essential for exterior use in humid or coastal regions.
Installation Note
The RL300B1 is designed to be mounted on a steel structure via a connector. Ensure your steel posts are pre-drilled according to the 250mm X-pattern. If you are replacing existing fittings, please measure the distance between the centers of your glass holes to confirm they match the 250mm spec.
FAQ (Frequently Asked Questions)
Q1: The series is called "300B", but the size is 250mm. Why?
A1: "300B" is the model family name indicating the design style (X-shape). However, the technical dimension for the RL300B1 is 250mm from hole center to hole center. Always check the drawing before ordering.
Q2: Is this spider strong enough for external use?
A2: Yes, absolutely. When cast in AISI 316 stainless steel, the RL300B1 is fully capable of withstanding external wind loads for standard-height buildings. For skyscrapers or typhoon zones, we recommend upgrading to our heavier RL3001 series.
Q3: Can you customize the surface finish?
A3: Yes. While Satin (Brushed) and Mirror (Polished) are standard, we can also provide PVD Gold or Matte Black finishes for luxury hotel projects in places like Dubai or Riyadh.
Contact Us
For a competitive price list on 250mm spider fittings or to consult on your facade design:
Email: stainless.steels.hardware@gmail.com
Website: www.stainlesssteelhardwares.com
Tel: +86-180-61818518
