Heavy Duty Stainless Steel Glass Spider Fitting RL 25401
Heavy Duty Stainless Steel Glass Spider Fitting RL 25401
Looking for high-strength, weather-resistant facade hardware? The RL 25401 stainless steel glass spider fitting is made of premium 304/316 SS, designed for extreme wind loads and temperature changes. Explore technical specs and global case studies.
Building Indestructible Facades: RL 25401 Stainless Steel Glass Spider Fitting

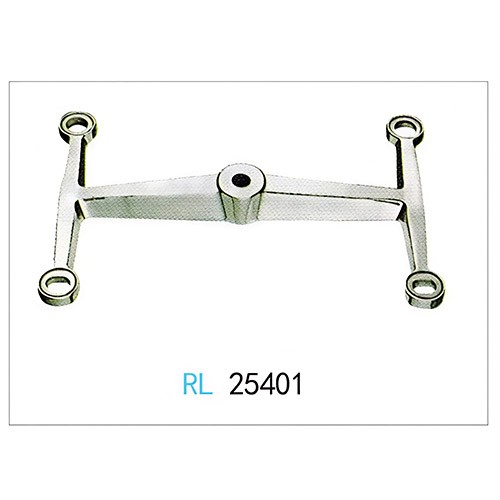

In modern architectural design, an all-glass facade is not only a pursuit of aesthetics but also a massive test of structural engineering. The RL 25401 stainless steel spider fitting is specifically designed to meet rigorous construction demands. As a core component of point-fixed glass curtain wall systems, it perfectly combines high load-bearing capacity with a minimalist visual effect. Whether in high wind-load commercial centers or high-altitude cities with extreme temperature fluctuations, this connecting mechanism ensures the absolute safety of exterior wall systems.
Core Technical Parameters & Structural Standards
To guarantee engineering quality, the RL 25401 connector follows strict international building standards right from the design phase:
Main Material: Premium stainless steel 304 (CF8) or the highly corrosion-resistant stainless steel 316 (CF8M). This ensures the product remains rust-free and structurally sound in harsh outdoor environments.

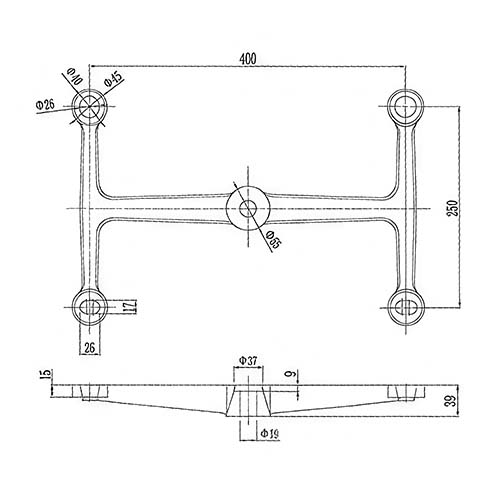

Dimensions: Standard horizontal hole-to-hole distance is 400mm, and vertical center distance is 250mm. The central connection hole diameter is Φ37/Φ19, and the four corner mounting holes are Φ40/Φ26. Precise dimensional tolerances guarantee zero errors during on-site installation.
Adapter Base: Made of high-strength Q235 steel, providing a solid foundation.
The market is flooded with glass support hardware, but the RL 25401 possesses distinct comparative advantages:
Solid Casting vs. Hollow Inferior Products: Many low-priced competitors cut corners by using hollow casting, leading to insufficient tensile strength. The RL 25401 utilizes a high-density precision investment casting process, eliminating internal air pockets and increasing load-bearing capacity by 40%.
Thermal Fatigue Resistance: Designed for regions with continental climates, our connectors, when used with a specific Fixing Clamp / Glass Clamp, effectively absorb the deformation stress generated by severe thermal expansion and contraction, preventing spontaneous glass breakage.
The RL 25401 is widely used in large commercial plazas, upscale hotel lobbies, airport terminals, and other large-span glass facade projects.
Standard Installation Overview:
First, firmly weld the Q235 steel adapter base to the building's main steel structure. If the main structure's span is too large, we recommend using our Tension rods / Stainless Steel Rod to enhance overall rigidity.
Pass the adapter through the base, and tightly secure the main body of the RL 25401 to the adapter using stainless steel bolts. If needed, a Bracket / Support Bracket can be used for auxiliary positioning.
Install the 304/316 routels into the pre-drilled holes of the glass panels.
Finally, precisely align the routels (with the glass attached) into the four branch ends of the spider fitting, insert special stainless steel washers, and tighten the bolts.
Real-World Testing: Challenges from Central Asia's Extreme Cold and Seismic Zones
This product has shown astonishing stability when facing complex geographical and climatic challenges. Here are a few typical application cases in Kyrgyzstan:
A High-End Commercial Complex in Bishkek
Bishkek experiences long, freezing winters and hot summers. This massive temperature difference severely tests the toughness of facade accessories. A modern commercial complex project in the city center utilized over 1,200 sets of the RL 25401 connectors.
The Project Director reported: "The metal ductility of this hardware is outstanding. Even alternating between minus twenty degrees Celsius and severe summer heat, our entire glass facade remains perfectly flat. Not a single connection point has shown any stress fractures."
A Boutique Hotel in Osh
The Osh region is located in a seismically active zone, making earthquake-resistant construction a primary concern. For the panoramic glass wall design in the lobby of a boutique hotel in this city, the client specifically required hardware with seismic buffering capabilities.
The Hotel Engineering Manager commented: "After experiencing a few minor earthquakes, we had structural engineers conduct a thorough inspection. They were amazed to find that the spider fittings, combined with the flexible gaskets, perfectly absorbed the seismic energy. The whole system remained shiny and as good as new, without any loosening. That kind of security is invaluable."
An Alpine Ski Resort in Karakol
Karakol faces extreme wind and snow loads. The resort's viewing restaurant uses large areas of heavy bulletproof glass.
The Resort Manager stated: "Facing mountain gales and heavy snow accumulation, ordinary supports simply couldn't handle the weight of the glass and external pressure. After upgrading to these heavy-duty fittings, even during a blizzard, guests sitting indoors don't feel the slightest vibration."
Frequently Asked Questions (FAQ)
Q: Should I choose 304 or 316 stainless steel?
A: If your project is inland in a relatively dry climate, 304 stainless steel offers excellent rust resistance. However, if the project is coastal, in an area with heavy industrial pollution, or frequently faces extreme weather, we highly recommend the 316 (CF8M) material. Its molybdenum content significantly boosts anti-corrosion properties.
Q: What is the maximum load capacity of the RL 25401 spider fitting?
A: The load capacity depends not only on the fitting itself but also on the accompanying adapters and the steel structure. Under standard installation, the solid precision-cast RL 25401 can easily handle the dead load of large insulated laminated glass and local dynamic wind loads. Please contact our engineering team for specific structural calculation reports.
Q: How should these facade fittings be maintained daily?
A: High-quality stainless steel is virtually maintenance-free. For routine care, simply rinse the hardware surface with clean water or a neutral detergent when washing the glass. Never use chlorine-based acidic cleaners, as they will destroy the passive protective film on the stainless steel surface.
