Glass Fin End Clamp BL01 | Stainless Steel Structural Clamp for Curtain Wall

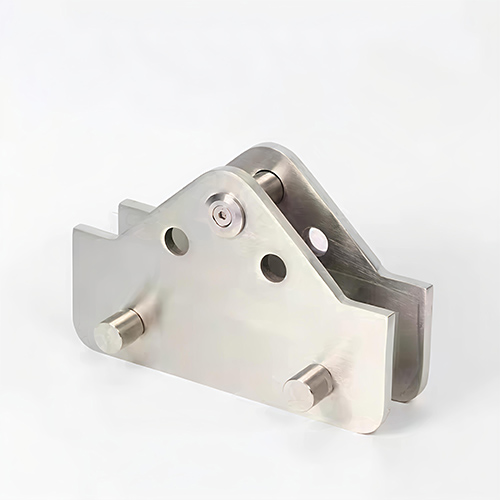

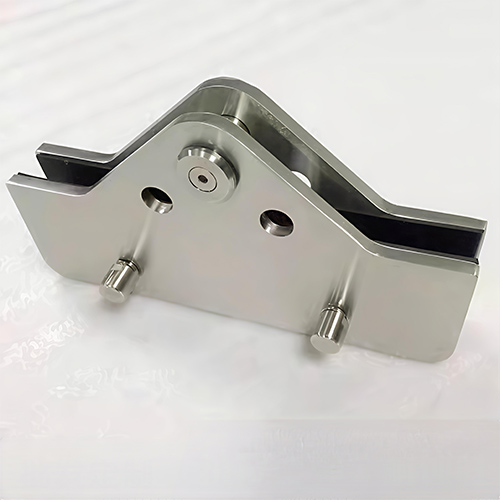

The BL01 Glass Fin End Clamp is a precision-engineered stainless steel structural connector, designed to secure vertical glass fins to horizontal glass panels in modern architectural applications. It is commonly used in glass curtain walls, skylight systems, atriums, and glass facades where both structural performance and aesthetic clarity are required.

Made of high-quality stainless steel 304 or 316, the clamp offers excellent corrosion resistance and long-term stability. It is suitable for use with tempered or laminated glass fins in thicknesses ranging from 12mm to 19mm.

This model integrates seamlessly with systems that include spider fittings, stainless steel tension rods, or glass canopy brackets. Its compact design ensures minimal visual obstruction while delivering maximum structural strength.

Whether you're building a glass atrium in Singapore, a canopy in the UAE, or a transparent façade in the United States, the BL01 clamp ensures safe and elegant performance.

Key Features:

• Model: BL01

• Material: Stainless Steel 304 / 316

• Surface Finish: Brushed / Mirror Polish

• Application: Securing glass fin to glass panel

• Glass Thickness Compatibility: 12mm / 15mm / 19mm

• Structure Type: Skylight, curtain wall, atrium

• Mounting: Mechanical bolt or concealed fixing

• Customization Available: Dimensions, logo, finish

Technical Specifications:

• Product Code: BL01

• Material Grade: SS304 / SS316

• Weight: Approx. 1.2 kg

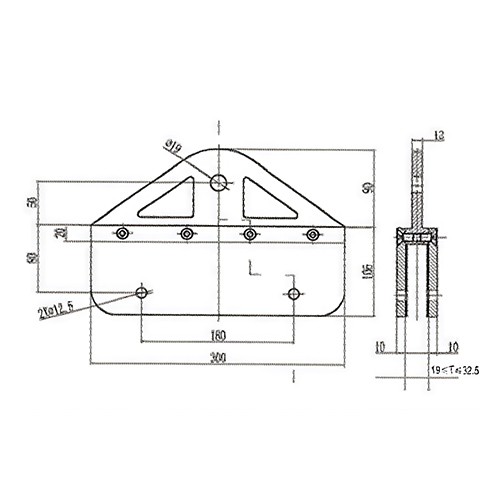

• Standard Hole Center Distance: Based on drawing

• Surface Options: Satin/brushed or mirror polished

• Working Temperature: -40°C to +80°C

Applications:

• Commercial glass curtain walls

• Skylights in malls and airports

• Glass atriums in office buildings

• Transparent roofs in villas or showrooms

• With spider fittings or glass routels for high-load installations

•

FAQ:

Q: What glass thickness is this clamp compatible with?
A: Typically supports 12mm–19mm glass fins. Custom sizes available upon request.

Q: Can I request CAD drawings or samples?
A: Yes, we provide CAD drawings and samples for engineering and tendering purposes.

Q: Do you offer OEM/ODM services or bulk export?
A: Absolutely. We are a direct manufacturer and supplier, exporting to countries including the US, UAE, Singapore, and Indonesia.

Q: Can this be used with your other façade hardware like spider arms or tension rods?
A: Yes, it's fully compatible with our spider arm systems and tension rod assemblies.
