Mastering Gravity: JC-A15 Heavy-Duty Stainless Steel Shower Door Pivot System (Two-Tone Brushed)
Dealing with oversized, heavy frameless shower doors? The JC-A15 heavy-duty stainless steel pivot system transfers the glass weight directly to the floor, completely eliminating wall stress and door sagging. Engineered for 8-12mm glass. Premium brushed and black two-tone finish.
Redefining Architectural Mechanics and Minimalist Aesthetics: The JC-A15 Heavy-Duty Shower Door Pivot
In contemporary luxury bathroom architecture, designers are overwhelmingly shifting towards using "floor-to-ceiling," ultra-wide, frameless tempered glass. However, when the dimensions and weight of a glass door reach a critical threshold, traditional wall-mounted side hinges face an immense physical challenge. They not only exert extreme lateral pulling forces on the structural walls but inevitably lead to the physical sagging of the glass door after years of use.
To decisively solve this architectural engineering dilemma, we proudly introduce the flagship product within our Shower Door Pivot category: The JC-A15 Heavy-Duty Stainless Steel Shower Door Pivot System. By abandoning the traditional side-hanging method and utilizing top-and-bottom rotational axis mechanics, it provides an exceptionally stable and ultra-minimalist door control solution for the heaviest frameless shower enclosures.
Core Engineering & Technical Specifications
Operating Principle: Top and bottom mounting, rotating on a vertical central axis.
Core Material: Forged from high-strength Stainless Steel (Available in cost-effective SUS 201# and marine-grade, highly corrosion-resistant SUS 304# options).

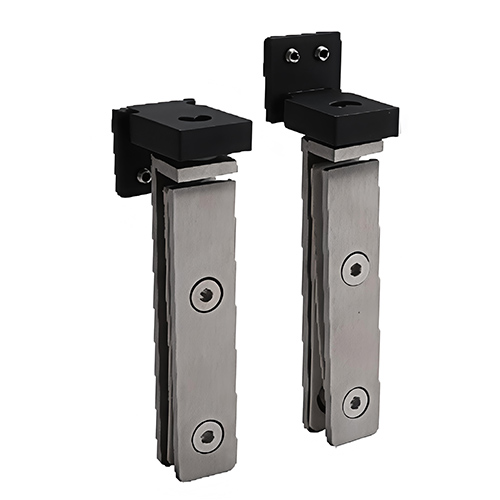

Surface Finish: Featuring a sophisticated two-tone design—Brushed (Wire drawing) main body paired with a Matte Black mounting block. Pure black, mirrored, or custom full-house color matching are also available.
Glass Compatibility: Specifically engineered to bear the extreme weight of 8mm - 12mm thick heavy-duty tempered safety glass.

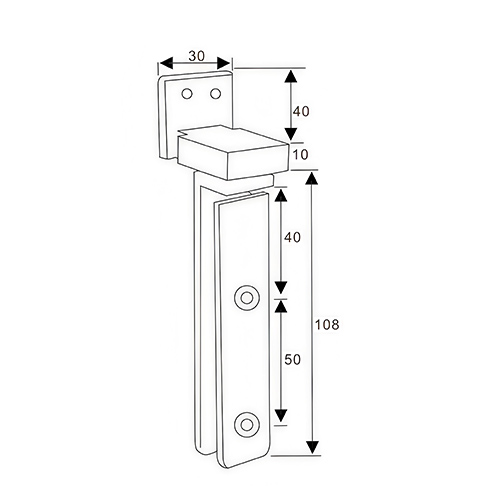

Precision Dimensions:
Wall/Header Mounting Base: Width 30mm, Height 40mm, pivot projection 10mm.
Extended Glass Clamping Arm: Total length 108mm. Provides an ultra-long load distribution area with dual secure mounting holes (40mm and 50mm spacing).
1. The Physics of Vertical Load Transfer: Conquering Door Sag Forever
This is the overwhelming, fundamental advantage of a Pivot System over standard side hinges. Standard hinges convert the weight of the heavy glass into a sheer "pull-out" force against the wall. If the bathroom wall is made of drywall, hollow bricks, or metal studs, this can lead to cracked tiles or the hinges violently pulling out of the wall.
The JC-A15 Pivot, however, brilliantly works with gravity. It transfers 100% of the massive weight of the glass door straight down its vertical axis directly into the solid bathroom floor (or threshold). The top pivot merely acts as a guide to keep the door perfectly plumb. This "floor-bearing" mechanism completely eliminates lateral wall stress. No matter how wide or heavy your glass panel is, you will never have to worry about the door sagging and scraping the floor tiles over time.
2. The 108mm Extended Clamping Arm: Unassailable Gripping Power
Notice the impressively long 108mm stainless steel clamping arm on the JC-A15. For a bottom-bearing pivot, ensuring the glass does not twist or slip out of the bracket during rotation is critical. This extended arm utilizes two high-tensile hex-head screws (spaced at 40mm and 50mm) combined with high-density internal compression gaskets to bite onto the glass edge with phenomenal grip. This massive surface area evenly distributes the rotational torque across a wide section of the glass, drastically reducing localized stress around the drilled holes and fundamentally eliminating the risk of spontaneous glass shattering.
3. The Ultimate "Invisible" Minimalist Visual Experience
For interior designers pursuing strict Minimalist aesthetics, the JC-A15 is a flawless choice. Because the hardware is mounted at the extreme top and bottom of the doorway, the vertical sightlines of the glass door remain completely clean, uninterrupted by bulky side hinges. This continuous visual flow makes the heavy glass door appear as if it is floating in mid-air, dramatically enhancing the spatial transparency and luxurious feel of the bathroom. The "Black + Brushed Steel" contrasting color design shown in the model adds a touch of hardcore modern industrial art to this minimalism.
4. The Ultimate Guardian in Wet Environments: Pure Stainless Steel
Bathroom hardware faces relentless attacks from humidity, high temperatures, and chemical shower gels. We highly recommend our 304# Stainless Steel variant. Rich in chromium and nickel, it forms a self-healing passive oxidation layer on its surface. Even after decades of high-frequency swinging and friction in a soaking wet environment, the JC-A15 pivot will maintain its silky-smooth rotation—it will absolutely not rust, peel, or bind, providing decades of guaranteed performance.
Build a Complete Frameless Shower Ecosystem
A flawless heavy-duty shower installation requires more than just a pivot. In our Comprehensive Stainless Hardware Catalog, we provide every coordinating component you need to build a top-tier enclosure:
A Rock-Solid Supporting Structure: When a heavy pivot door swings, the adjacent stationary glass panels must provide an absolutely rigid frame. To construct this unyielding glass wall, we strongly advise pairing the pivot with our heavy-duty Fixing Clamp / Glass Clamp. If your design involves corners, our versatile Bathroom&Shower Glass Clamp / Fixed Clamp brackets are the ultimate tools for rigidly anchoring the fixed panels to the walls and floors.
The Key to Moving Heavy Doors: Because pivot doors are usually oversized and incredibly heavy, they require sufficient leverage to open smoothly. Pairing the door with a long, ergonomic Shower Door Handle / Pull (also in brushed stainless steel) not only makes swinging the massive door effortless but creates perfect visual harmony with the pivot hardware.
Solutions for Compact Spaces: Pivot doors require a significant swinging radius. If your bathroom layout is tight, we highly recommend exploring our high-end Shower Door Roller / Sliding Roller systems. They can bear the same heavy glass but utilize a sliding track, maximizing spatial efficiency to the absolute limit.
Absolute Plumb Alignment: The installation tolerance for a pivot system is practically zero. You must use high-precision laser levels to ensure the central axis of the ceiling mount (or header bracket) and the floor mount are in perfectly plumb alignment. Even a 1mm deviation will cause the heavy door to bind, grind, or potentially shatter the glass under stress.
Floor Load Assessment: Although the base bears all the weight, you must ensure the substrate beneath the floor tile or threshold is completely solid concrete or reinforced blocking, free of hollow spots, and that the waterproofing membrane is uncompromised before drilling.
Precision Glass Fabrication: Please process the glass strictly according to our exact 108mm arm dimensions and hole-spacing templates. All cutting, notching, and drilling MUST be completed prior to the glass undergoing the physical tempering process.
