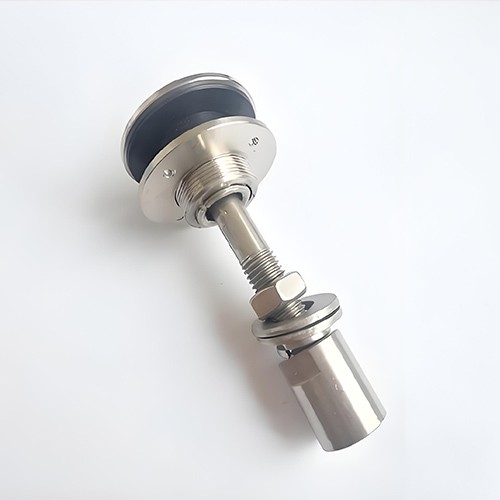

Spider Routel Connector T02 – Stainless Steel Glass Spider Fitting
The T02 spider routel connector is a stainless steel glass spider fitting designed for 23–26 mm thick glass, ideal for commercial plazas, skylights, facade curtain walls, and glass elevator structures. Made of anti-corrosion stainless steel (304/316), it offers high load capacity and sleek aesthetics for architectural glazing systems.
The T02 series spider routel connector is engineered for structural glass systems using 23–26 mm tempered or laminated glass.
-
Construction & Material: Precision-machined stainless steel (304/316), brushed or polished finishes, corrosion-resistant for indoor/outdoor use.
-
-
Installation Benefits: Designed for spider fitting systems; allows fast assembly and angular adjustment; compatible with glass spider claws and point-fixed framing.
-
Applications: Perfectly suited for commercial plazas, skylights, atriums, glass elevator shafts, curtain walls, and canopy systems.
-
Performance Specs: High load-bearing capacity (axial ≥ 4500 N), supports point-fixed glass, accommodates 23–26 mm glass thickness.
