Premium Stainless Steel Blade Post: The Ultimate 10mm Solid Flat Bar Solution for Frameless Glass Railing Systems
The Stainless Steel Blade Post (Single Plate Series) is a high-performance structural component designed for modern architectural glass systems. Featuring a 10mm solid flat bar profile in SUS304/316L, it offers superior lateral load resistance and minimalist aesthetics. Compatible with spider fittings and glass clamps, it is the premier choice for high-traffic commercial and coastal residential applications.
Why Choose the Stainless Steel Blade Post? (Key Features & Benefits)
In the realm of modern architecture, the balance between safety and transparency is paramount. Our Stainless Steel Blade Post—often referred to as a "flat bar post"—is engineered to disappear into the landscape while providing uncompromising structural integrity.
1. Ultra-Slim 10mm Profile for Maximum Visibility
Unlike traditional round or square tube balusters, the blade post features a slim 10mm thickness. When viewed from the side, the post virtually vanishes, offering an unobstructed panoramic view. This makes it a favorite for luxury penthouses and scenic viewing decks where the landscape is the primary asset.
2. Solid-Core Structural Integrity
While hollow tubes rely on wall thickness for strength, our flat bar glass railing post is laser-cut from solid stainless steel plate. This solid-core construction provides exceptional resistance to deflection and lateral pressure, meeting and exceeding international building codes for public safety.
3. Superior Material Grade: SUS304, 316, and 316L
We offer three distinct grades of stainless steel to suit your environment:
SUS304: Perfect for interior residential projects and dry climates.
SUS316: The industry standard for outdoor use, providing excellent resistance to pitting corrosion.

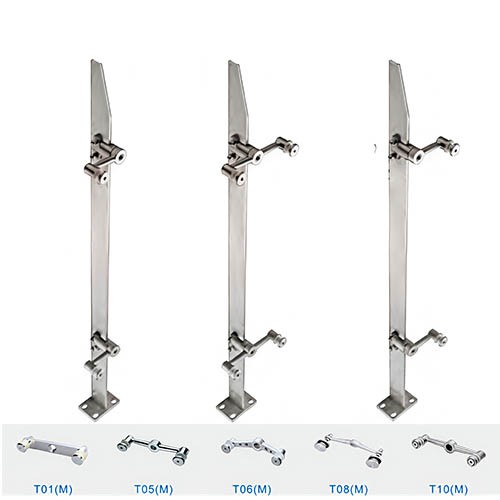

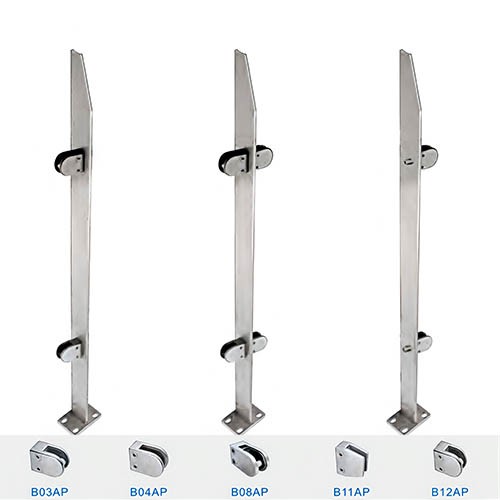

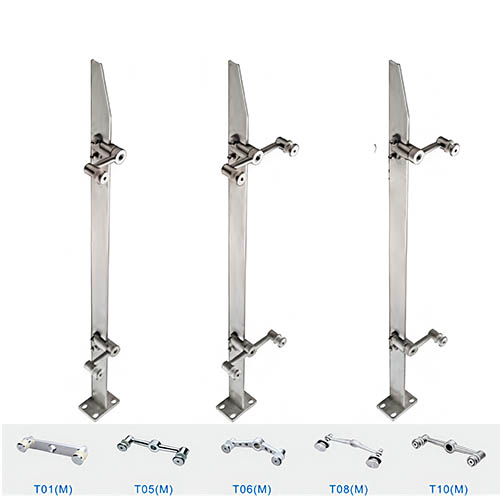

Our blade posts are designed with versatility in mind. They seamlessly integrate with various spider fittings (T01, T05, T06 series) and glass clamps (B03AP to B12AP). This modularity allows architects to customize the railing to accommodate different glass thicknesses (from 8mm to 17.5mm) and mounting heights.
Comprehensive Technical Specifications

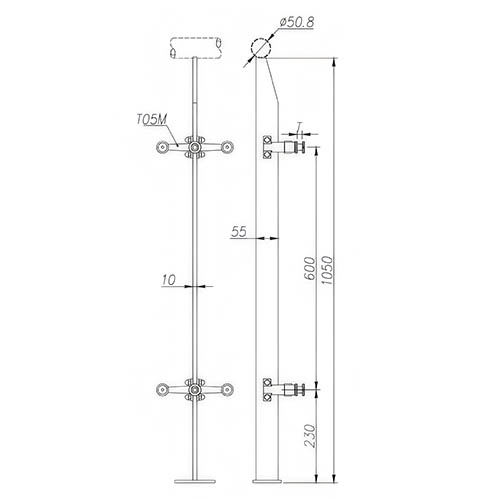

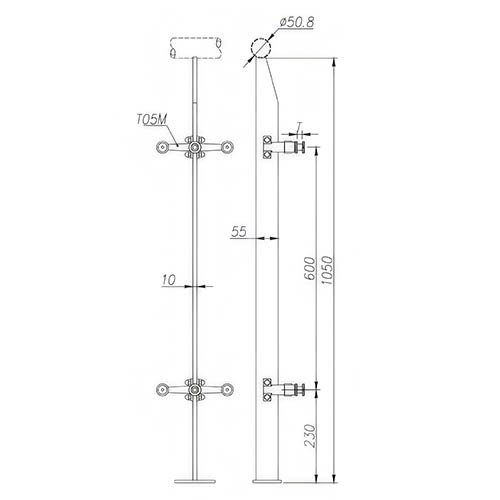

To ensure your project meets local building regulations, please refer to the following technical data based on our BD1 series drawing:
Parameter Specification Detail
Product Name Stainless Steel Blade Post / Single Plate Baluster
Material Options AISI 304, 316, 316L
Surface Finish Satin (Brushed), Mirror (Polished), Matte Black PVD
Post Thickness 10mm (Solid Flat Bar)
Post Width 55mm
Standard Height 1050mm (Customizable from 900mm to 1200mm)
Top Attachment Fits Ø50.8mm Handrail Tube
Fittings Compatibility Spider Claws (Point-fixed) or U-Clamps
Mounting Type Surface Mounted with 4-hole Base Plate
How It Works & Engineering Excellence
The engineering behind a blade post differs significantly from traditional balustrade systems. From a mechanical perspective, the solid flat bar acts as a vertical cantilever.
CNC Precision Fabrication
Each post is manufactured using high-precision CNC fiber laser cutting, ensuring that the 55mm width remains consistent within a ±0.2mm tolerance. Unlike cast posts, which can have internal air pockets (porosity), our plate-cut posts are structurally homogenous.
Surface Passivation & tandards
We adhere to the ASTM A240 standards for heat-resisting chromium and chromium-nickel stainless steel plate. After fabrication, every post undergoes a rigorous passivation process to remove free iron from the surface, enhancing the natural chromium-oxide protective layer.
Global Applications & Environmental Adaptability
Our Stainless Steel Blade Post is exported globally, and we have optimized the design for specific regional challenges:
Coastal Regions (e.g., Gold Coast, Australia; Miami, USA): For these areas, we exclusively supply SUS316L with a mirror-polished finish. The mirror surface is smoother at a microscopic level, preventing salt crystals from adhering to the metal and causing corrosion.
Cold Climates (e.g., Toronto, Canada; Oslo, Norway): In regions with extreme thermal expansion and contraction, our spider fittings include EPDM gaskets that allow for slight glass movement without stress concentrations, preventing glass breakage during winter.
High-Density Urban Areas (e.g., London, UK; Singapore): In commercial hubs, safety is the primary concern. Our 10mm solid plate design is rated for "Crowd Loading" (C5 category in some jurisdictions), making it suitable for shopping malls and public transit stations.
Explore our other Stainless Steel Glass Clamps to complete your railing assembly.
Installation Overview & Maintenance Guide
Installation Preparation
Substrate Check: Ensure the concrete or steel substructure is at least 100mm thick for secure anchoring.
Alignment: Use a laser level to ensure all blade posts are perfectly vertical. Even a 1-degree tilt is visible with flat-bar systems.
Frequency: Every 3–6 months depending on the proximity to the ocean.
Process: Wipe down with fresh water and a mild detergent. Avoid steel wool or abrasive pads, as they will scratch the satin finish and introduce carbon steel particles that lead to rust.
Q1: We are a developer in Adelaide, Australia. Can these blade posts withstand high-wind loads on beachfront balconies?
A: Yes. For projects in Adelaide or other coastal areas, we recommend the 10mm solid SUS316L blade post. When paired with 12mm toughened glass and a top handrail, this system easily handles Category B wind zones. We provide structural calculation reports upon request.
Q2: What is the lead time for a custom batch of 500 posts to be delivered to Jeddah, Saudi Arabia?
A: For a large commercial order to Jeddah, our standard production lead time is 20-25 days. Shipping via sea freight to Jeddah Islamic Port typically takes an additional 15-20 days. We also offer PVD coating in "Gold" or "Bronze" to match Middle Eastern architectural aesthetics.
Q3: In a rainy city like Seattle, USA, will the 304 grade suffice?
A: While 304 can be used, we highly recommend 316 for Seattle due to the constant moisture and potential for industrial pollutants in the rain. The cost difference is minimal compared to the long-term maintenance savings.
Q4: Can these posts be used without a handrail (frameless look) in Vancouver, BC?
A: While the blade post is strong enough, many local building codes in British Columbia require a top rail or interlinking glass to maintain safety if a pane breaks. Please consult your local Vancouver building inspector; we provide handrail-free "stub" versions of these posts for specific low-drop applications.
Q5: We have a project in a high-altitude area like Denver, Colorado. Does the UV exposure affect the finish?
A: The stainless steel itself is unaffected by UV. However, the rubber gaskets in the spider fittings are the vulnerable point. We use UV-stabilized EPDM gaskets that are tested for high-altitude environments to ensure they don't become brittle or crack over time.
Visit our full catalog at www.stainlesssteelhardwares.com for more high-quality architectural solutions.
The Stainless Steel Blade Post (Single Plate Series) is a high-performance structural component designed for modern architectural glass systems. Featuring a 10mm solid flat bar profile in SUS304/316L, it offers superior lateral load resistance and minimalist aesthetics. Compatible with spider fittings and glass clamps, it is the premier choice for high-traffic commercial and coastal residential applications.
Why Choose the Stainless Steel Blade Post? (Key Features & Benefits)
In the realm of modern architecture, the balance between safety and transparency is paramount. Our Stainless Steel Blade Post—often referred to as a "flat bar post"—is engineered to disappear into the landscape while providing uncompromising structural integrity.
1. Ultra-Slim 10mm Profile for Maximum Visibility
Unlike traditional round or square tube balusters, the blade post features a slim 10mm thickness. When viewed from the side, the post virtually vanishes, offering an unobstructed panoramic view. This makes it a favorite for luxury penthouses and scenic viewing decks where the landscape is the primary asset.
2. Solid-Core Structural Integrity
While hollow tubes rely on wall thickness for strength, our flat bar glass railing post is laser-cut from solid stainless steel plate. This solid-core construction provides exceptional resistance to deflection and lateral pressure, meeting and exceeding international building codes for public safety.
3. Superior Material Grade: SUS304, 316, and 316L
We offer three distinct grades of stainless steel to suit your environment:
SUS304: Perfect for interior residential projects and dry climates.
SUS316: The industry standard for outdoor use, providing excellent resistance to pitting corrosion.
SUS316L: Low-carbon version specifically recommended for marine environments (within 5 miles of the ocean) to prevent "tea staining."
Our blade posts are designed with versatility in mind. They seamlessly integrate with various spider fittings (T01, T05, T06 series) and glass clamps (B03AP to B12AP). This modularity allows architects to customize the railing to accommodate different glass thicknesses (from 8mm to 17.5mm) and mounting heights.
Comprehensive Technical Specifications
To ensure your project meets local building regulations, please refer to the following technical data based on our BD1 series drawing:
Parameter Specification Detail
Product Name Stainless Steel Blade Post / Single Plate Baluster
Material Options AISI 304, 316, 316L
Surface Finish Satin (Brushed), Mirror (Polished), Matte Black PVD
Post Thickness 10mm (Solid Flat Bar)
Post Width 55mm
Standard Height 1050mm (Customizable from 900mm to 1200mm)
Top Attachment Fits Ø50.8mm Handrail Tube
Fittings Compatibility Spider Claws (Point-fixed) or U-Clamps
Mounting Type Surface Mounted with 4-hole Base Plate
Hole Distance 600mm between glass connectors
How It Works & Engineering Excellence
The engineering behind a blade post differs significantly from traditional balustrade systems. From a mechanical perspective, the solid flat bar acts as a vertical cantilever.
CNC Precision Fabrication
Each post is manufactured using high-precision CNC fiber laser cutting, ensuring that the 55mm width remains consistent within a ±0.2mm tolerance. Unlike cast posts, which can have internal air pockets (porosity), our plate-cut posts are structurally homogenous.
Surface Passivation & tandards
We adhere to the ASTM A240 standards for heat-resisting chromium and chromium-nickel stainless steel plate. After fabrication, every post undergoes a rigorous passivation process to remove free iron from the surface, enhancing the natural chromium-oxide protective layer.
Global Applications & Environmental Adaptability
Our Stainless Steel Blade Post is exported globally, and we have optimized the design for specific regional challenges:
Coastal Regions (e.g., Gold Coast, Australia; Miami, USA): For these areas, we exclusively supply SUS316L with a mirror-polished finish. The mirror surface is smoother at a microscopic level, preventing salt crystals from adhering to the metal and causing corrosion.
Cold Climates (e.g., Toronto, Canada; Oslo, Norway): In regions with extreme thermal expansion and contraction, our spider fittings include EPDM gaskets that allow for slight glass movement without stress concentrations, preventing glass breakage during winter.
High-Density Urban Areas (e.g., London, UK; Singapore): In commercial hubs, safety is the primary concern. Our 10mm solid plate design is rated for "Crowd Loading" (C5 category in some jurisdictions), making it suitable for shopping malls and public transit stations.
Explore our other Stainless Steel Glass Clamps to complete your railing assembly.
Installation Overview & Maintenance Guide
Installation Preparation
Substrate Check: Ensure the concrete or steel substructure is at least 100mm thick for secure anchoring.
Alignment: Use a laser level to ensure all blade posts are perfectly vertical. Even a 1-degree tilt is visible with flat-bar systems.
Fasteners: We recommend M10 stainless steel expansion bolts for concrete or M10 machine screws for steel beams.
Frequency: Every 3–6 months depending on the proximity to the ocean.
Process: Wipe down with fresh water and a mild detergent. Avoid steel wool or abrasive pads, as they will scratch the satin finish and introduce carbon steel particles that lead to rust.
Protection: Apply a thin coat of marine-grade wax annually for extra protection against harsh UV rays and salt spray.
Q1: We are a developer in Adelaide, Australia. Can these blade posts withstand high-wind loads on beachfront balconies?
A: Yes. For projects in Adelaide or other coastal areas, we recommend the 10mm solid SUS316L blade post. When paired with 12mm toughened glass and a top handrail, this system easily handles Category B wind zones. We provide structural calculation reports upon request.
Q2: What is the lead time for a custom batch of 500 posts to be delivered to Jeddah, Saudi Arabia?
A: For a large commercial order to Jeddah, our standard production lead time is 20-25 days. Shipping via sea freight to Jeddah Islamic Port typically takes an additional 15-20 days. We also offer PVD coating in "Gold" or "Bronze" to match Middle Eastern architectural aesthetics.
Q3: In a rainy city like Seattle, USA, will the 304 grade suffice?
A: While 304 can be used, we highly recommend 316 for Seattle due to the constant moisture and potential for industrial pollutants in the rain. The cost difference is minimal compared to the long-term maintenance savings.
Q4: Can these posts be used without a handrail (frameless look) in Vancouver, BC?
A: While the blade post is strong enough, many local building codes in British Columbia require a top rail or interlinking glass to maintain safety if a pane breaks. Please consult your local Vancouver building inspector; we provide handrail-free "stub" versions of these posts for specific low-drop applications.
Q5: We have a project in a high-altitude area like Denver, Colorado. Does the UV exposure affect the finish?
A: The stainless steel itself is unaffected by UV. However, the rubber gaskets in the spider fittings are the vulnerable point. We use UV-stabilized EPDM gaskets that are tested for high-altitude environments to ensure they don't become brittle or crack over time.
