Frameless Glass Door Accessory – Stainless Steel Cover Plate with Polished Glass Door Patch Fitting
Frameless Glass Door Accessory – Stainless Steel Cover Plate with Polished Glass Door Patch Fitting
This frameless glass door stainless steel polished patch fitting is made of 304 stainless steel, supports 10-12mm tempered glass. Soundproof, durable, easy to install – ideal for hotels, apartments, villas, offices. OEM & free sample offered. See real cases in Seoul, Busan and detailed installation guide.
This frameless glass door stainless steel cover plate with polished patch fitting is designed for modern architectural glass door systems. It combines aesthetics and functionality, suitable for hotels, villas, apartments, hospitals, office buildings, malls, and more. The cover is made of high quality stainless steel (201# or 304# optional), with mirror or satin finish, and a 7mm aluminum alloy core for long term stability. It supports 10-12mm tempered glass, screw installation, with features like soundproofing, remote control ready, durability, and easy assembly.
Technical Specifications
Parameter Specification
Glass type Tempered glass
Glass thickness 10-12 mm
Cover material Stainless steel 201# / 304#
Finish Mirror / Satin
Core material Aluminum alloy (7mm)
Installation Screw fixing
Soundproof Yes
Durability High strength, 1-year warranty
Design style Modern
Color Silver or custom
Sample Free offered
Ensure glass is tempered and thickness is between 10-12mm.
Mark screw holes on glass; drill with a special glass drill bit (recommend professional glass shop).
Place aluminum core on both sides of glass, align holes.
Tighten cover plate to core with stainless steel screws (torque 5-7 N·m).

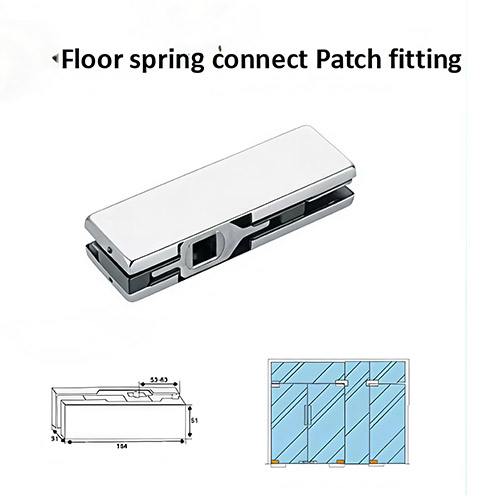

After installing top/bottom clamps or floor spring, adjust door verticality and gap.
Clean cover surface; avoid scratching the mirror finish.
Advantages vs Competitors
Feature This Product Common Alternatives
Material 304 SS + 7mm Al core 201 SS or 5mm iron core
Surface durability Mirror/satin, 72h salt spray no rust Easy scratch, rust in 12h
Soundproofing Sealed gasket, closing noise ≤45dB No gasket, noise ≥60dB
Ease of install Pre-drilled + positioning template, 30 min/door On-site measurement, >1 hour
Gangnam Boutique Hotel, Seoul
“Our hotel has 120 frameless glass shower rooms and entrance doors. This stainless steel patch fitting installed very smoothly. The mirror finish perfectly matches our minimal marble design. After 8 months of high traffic, not a single screw loosened. Guests often mention the soft closing sound. Highly recommended.” — Hotel Engineering Manager, Mr. Park
Haeundae Luxury Apartments, Busan
“The sea salt air in Haeundae rusted our previous hardware within six months. After switching to this 304 cover plate, it still looks like new after one year. The homeowners’ association is very satisfied and plans to use it for phase two.” — Apartment Facility Manager, Ms. Lee
Songdo International Business Center, Incheon
“Our office uses all-glass partitions requiring many glass door clamps. This product not only offered 3D model support and cross-category consolidation, but also integrated perfectly with our Spider Fittings and Glass Spigots. The overall look is modern and solid, helping meet LEED requirements.” — Project Manager, Mr. Kim
Rehabilitation Hospital, Daejeon
“Hospitals demand easy-clean hardware with no dead corners. This polished cover plate is smooth and dust-proof. Together with Shower Door Pivot and Shower Door Support Bar / Stabilizing Bar, the entire shower area is both safe and aesthetic.” — Facility Director, Ms. Choi
Hyundai Factory Office, Ulsan
“We use multiple sliding glass door systems paired with Shower Door Sliding Roller and Fin Spider. This patch fitting’s screw design makes maintenance very easy. Even with over 200 cycles per day, no abnormal noise occurs.” — Facility Engineer, Mr. Jung
FAQ (Structured Q&A)
Q: What glass thickness does this fitting work with?
A: It fits 10mm to 12mm tempered glass. For other thicknesses, please contact custom service.
Q: What is the difference between 304 and 201 stainless steel?
A: 304 contains more nickel and resists salt spray corrosion better than 201. Choose 304 for coastal or humid environments; 201 is fine for dry indoor areas.
Q: Do I need professional tools for installation?
A: You need a glass drill bit, electric drill, and screwdriver. We provide a drilling template to minimize errors.
Q: Can it work with remote or electronic locks?
A: Yes. The product has a reserved slot for remote control modules, working with electromagnetic locks for remote opening/closing.
Q: Do you offer samples?
A: Yes, free samples are available; only shipping fee applies.
Q: What after-sales service do you provide?
A: Free replacement of defective parts within 1 year, online technical support, and video guidance. Return & replacement accepted.
Q: Can it be used on curved or ultra-clear glass?
A: Curved glass requires special clamps; this product is for flat tempered glass only. Ultra-clear glass with 10-12mm thickness is compatible.
Related Internal Links & Video Resource
For a complete frameless glass door hardware solution, check our Spider Fittings, Fin Spider, and Glass Spigots. For shower enclosures, pair with Shower Door Pivot, Shower Door Sliding Roller, and Shower Door Support Bar / Stabilizing Bar. For more installation tips and case videos, visit our YouTube channel: https://www.youtube.com/channel/UC3Lo3jsy1LWw0fH03FHZFug
