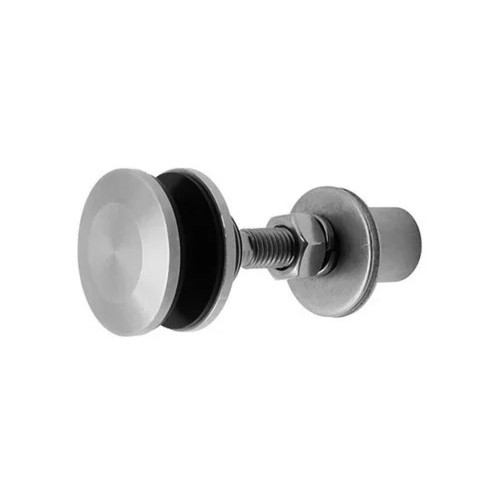

Stainless Steel Spider Routel T04 - Flat Front, 16mm Stem, for 23-26mm Glass

The T04 Stainless Steel Spider Routel is an essential connector engineered for modern point-supported glazing systems. Precision-manufactured from high-grade stainless steel, this routel features a distinctive flat front design and a precisely machined 16mm diameter stem. It serves as the crucial link between spider clamps and glass panels ranging from 23mm to 26mm in thickness. The T04 Routel guarantees a secure, adaptable, and aesthetically clean connection, making it an indispensable component for demanding applications like commercial plaza skylights, glass elevator enclosures, architectural facades, and glass canopies.

Key Features & Benefits:

• Precision Fit: Specifically engineered to securely clamp glass with a thickness of 23mm to 26mm.

• Robust Connection: The flat front of the 16mm diameter stem maximizes contact area with the spider clamp, ensuring a solid and stable connection capable of efficient load transfer.

• Superior Material: Constructed from high-quality 304 or 316 Stainless Steel (options available), offering exceptional corrosion resistance, high strength, and long-term durability. Ideal for both interior and exterior environments, with 316 SS recommended for coastal or high-humidity areas.

• Critical Component: As a vital element within the spider clamp system, the T04 Routel is fixed directly into the glass hole. Its stem connects seamlessly to the spider clamp body, enabling the structural integrity and signature transparency of point-fixed glazing.

• Versatile Applications: Perfectly suited for large-scale commercial skylights and atriums, glass domes, glass elevator shafts, glass balustrade connections, building curtain walls, and various glass canopies or sunshades.

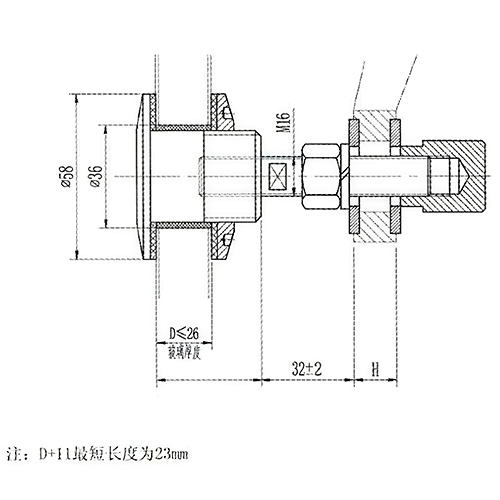

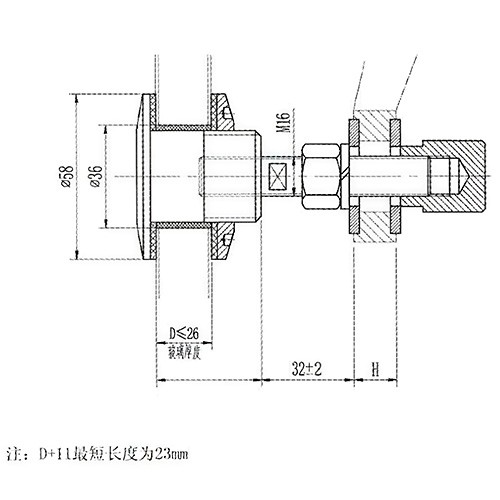

Technical Specifications:

• Model: T04

• Product Type: Spider Routel / Point Fixing Routel

• Primary Material: 304 or 316 Stainless Steel (Selectable)

• Suitable Glass Thickness: 23mm - 26mm

• Stem Front Type: Flat Front

• Connecting Stem Diameter: Ø16mm (for insertion into spider clamp)

• Surface Finish: Standard Mechanical Polish or Satin Finish (Customization available upon request)

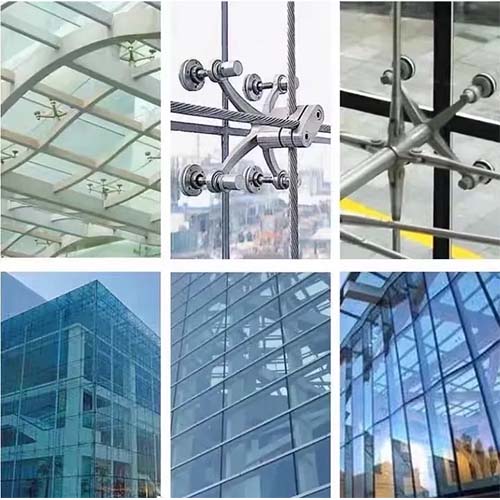

Typical Applications:
The T04 Stainless Steel Spider Routel is widely used in glass structures demanding high safety, transparency, and contemporary aesthetics:

• Skylights and Glass Roofs in shopping malls, office atriums.

• Glass Enclosures for Observation Elevators in hotels, malls, offices.

• Glass Canopies and Sunshades for public buildings, transportation hubs.

• Connection Points for Glass Balustrades and Handrails in residential and commercial spaces.

• Point-Supported Glass Facades and Glazing Systems in modern architecture.

Why Choose us?
We specialize in providing high-performance stainless steel architectural hardware solutions. The T04 Spider Routel is manufactured to strict industry standards, with each piece undergoing rigorous quality control to ensure dimensional accuracy and reliable performance. We offer material choices to meet diverse project requirements and budgets. Explore our full range of spider clamps, other routel models, and complete point-fixing hardware systems on our website or contact our sales team for assistance.
